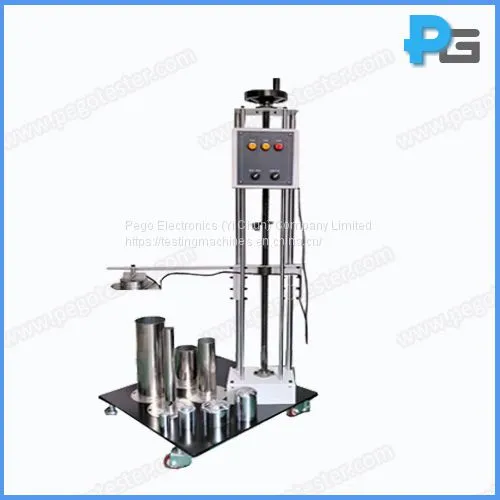

IK07-IK10 Vertical Impact Hammer Test Apparatus
1. Introduction
IK Vertical impact hammer designed according to IEC60068-2-75 test Ehc and IEC62262 (equivalent EN62262) , and can meet the test requirements of IEC60598, EN50102.The IK code is from 00 to 10, and corresponding impact energy is from 0.14J to 20J.
IK vertical impact hammer is for IK07 to IK10 testing, the hammer is made by steel. The hammer is released by electromagnet to ensure instantaneous release and vertical drop, the bottom of guideway contact with the surface of sample, that is the fall height, user do not need to adjust, it is easy to operate.
IK vertical impact hammer testing equipment includes 4 hammers (2J, 5J, 10J, 20J) and 4 guideway.
2. Parameter
Travel height |
0~1000mm (manual adjustable) |
Impact hammers |
0.5kg, 1.7kg, 5kg, 5kg steel hammers for IK07 to IK10 vertical impact |
Impact energy |
2J, 5J, 10J, 20J |
|
Size of guideway (diameter*height) |
Φ37mm*400mm, Φ64mm*300mm, Φ85mm*200mm, Φ104mm*400mm, Φ129mm*500mm |
Release mode |
Electromagnetic release |
Working power |
220V/50Hz |
Dimension of striking elements
Characteristics 0f Striking Elements | ||||||||
Energy/J |
≤1 ±10% |
2 ±5% |
5 ±5% |
10 ±5% |
20 ±5% |
50 ±5% |
||
Equivalent mass±2%kg |
0.25(0.2) |
0.5 |
1.7 |
5 |
5 |
10 |
||
Material |
Nylon |
steel |
||||||
R/mm |
10 |
25 |
25 |
50 |
50 |
50 |
||
D/mm |
18.5（20） |
35 |
60 |
80 |
100 |
125 |
||
f/mm |
6.2（10） |
7 |
10 |
20 |
20 |
25 |
||
r/mm |
- |
- |
6 |
- |
10 |
17 |
||
l/mm |
Depends |
|||||||
| ||||||||
Height of fall
|
Energy (J) |
0.14 |
0.2 |
(0.3) |
0.35 |
(0.4) |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
||
Equivalent Mass (kg) |
0.25 |
(0.2) |
0.25 |
(0.2) |
0.25 |
(0.2) |
(0.2) |
0.25 |
0.25 |
0.25 |
0.5 |
1.7 |
5 |
5 |
10 |
Height of fall mm±1% |
56 |
(100) |
80 |
(150) |
140 |
(200) |
(250) |
200 |
280 |
400 |
400 |
300 |
200 |
400 |
500 |
Degrees of protection against external mechanical impacts
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
0.14J |
0.2J |
0.35J |
0.5J |
0.7J |
1J |
2J |
5J |
10J |
20J |
