IEC60529 IPX5/6 Jet Nozzle
1. Introduction

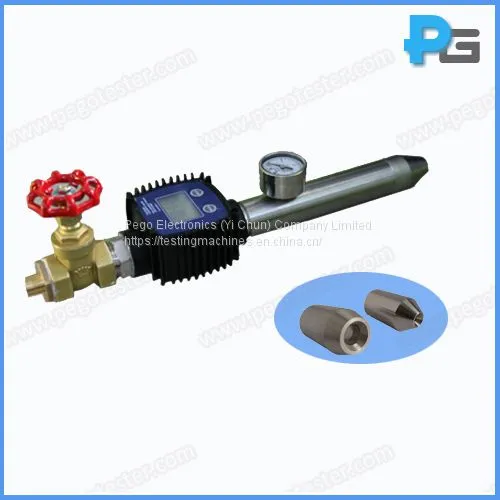

Jet nozzles are strictly designed according to IEC60529 figure 6 to verify protection against water jet. Test nozzle with inner diameter Φ6.3mm is for IPX5 test, and test nozzle with inner diameter Φ12.5mm is for IPX5 test. The hose nozzles are made of SUS304 stainless steel and it is consisted by 2 nozzles ( Φ6.3mm and Φ12.5mm), pressure gauge and valve.
2. Parameters:
Item |
IPX5 |
IPX6 |
Nozzle Hole Diameter |
6.3mm |
12.5mm |
Water Discharge |
12.5L±0.625L/min |
100±5L/min |
Nozzle distance between shell |
2.5-3m |
|
Test Time |
More than 1min/m2 and 3mins |
|
Pressure Gauge |
0~0.25Mpa |
|
Material |
SUS304 stainless steel |
|
3. Picture:
