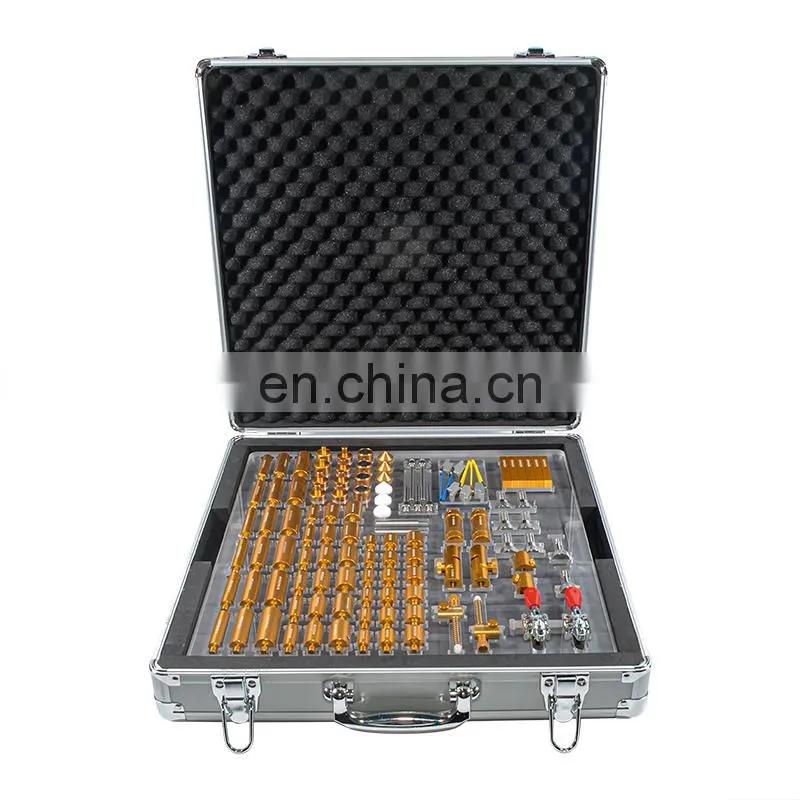

Wholesale CMM 108pc Fixtures Kits fix the workpiece on the Coordinate Measurement Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Wholesale CMM 108pc Fixtures Kits fix the workpiece on the Coordinate Measurement Machine
-
Retailing VMM Fixtures Kits Fixing Clamps used on Video Measuring Machine
-
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture
-
Monocular Microscope Tool Microscope
-
measuring camera detection equipment video inspecting microscope
-
vision universal measuring microscope microscopes
Product Description
Details Description
Title goes here.
The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
Modular Fixtures-VMM

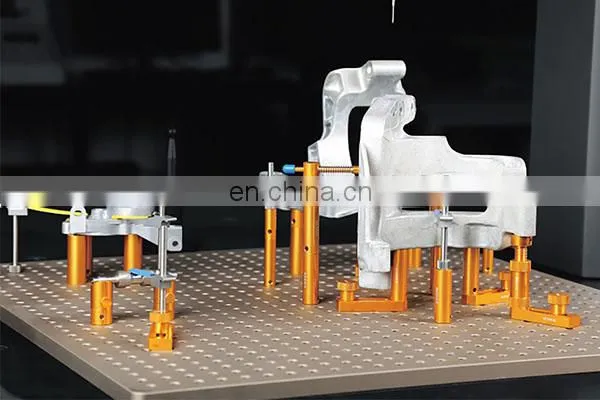

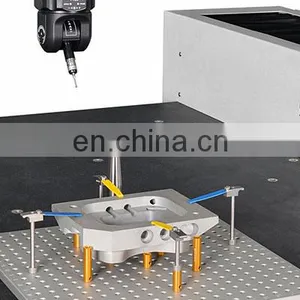

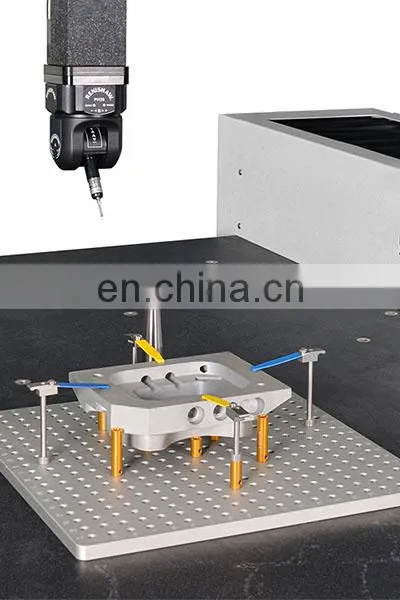

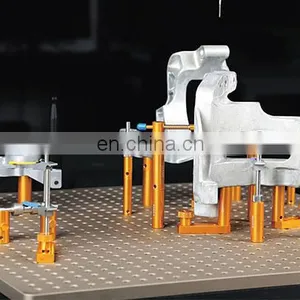

FlexFix series CMM fixtures system is designed and developed by UNIMETRO which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components.
FlexFix series CMM fixtures are modular and can be expanded with user's requirements to provide a complete fixturing solution for any part regardless of its size, shape or material.
FlexFix series CMM fixtures are modular and can be expanded with user's requirements to provide a complete fixturing solution for any part regardless of its size, shape or material.
For multiple applications such as electronics, aerospace, automotive, plastic or medical care, the FlexFix series can provide a full solution to the CMM fixturing requirements. The series offers fixture plates with M8 threaded fittings in a wide choice of standard sizes, which are made of high accurate aluminum material and with complex manufacturing process, to ensure the accuracy and reliability of the system. Perfect fixturing solutions can be assembled very quickly without any tools to increase throughput and avoid delays in inspection.
Fixtures Components

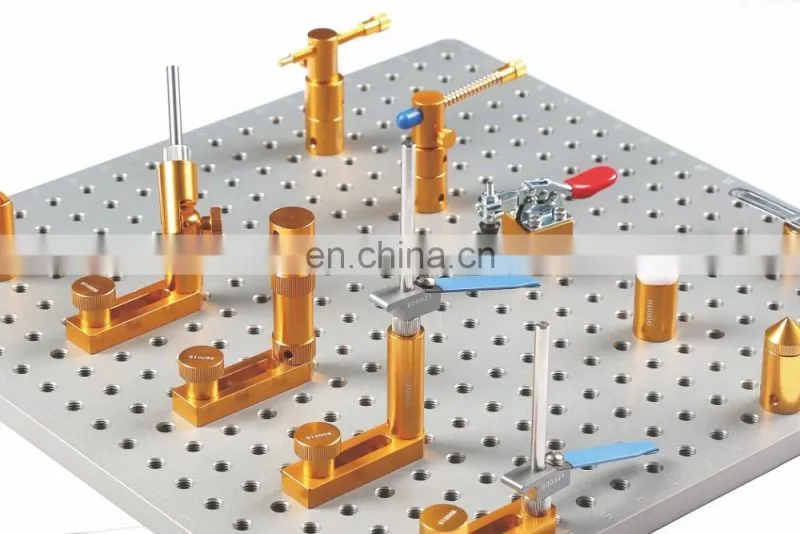

The Flexfix series Fixturing components are designed to hold components firmly with the minimum necessary force and without any special tools, all components are with different function including supporting, clamping or pressing. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts. Also it is easy to set up a clear probe path of 3D measuring.

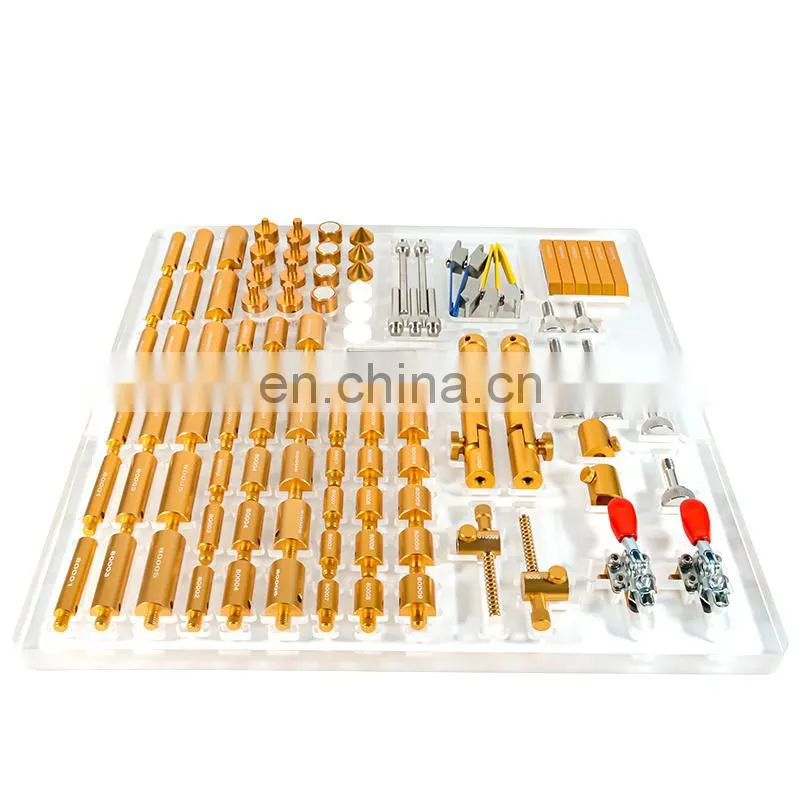

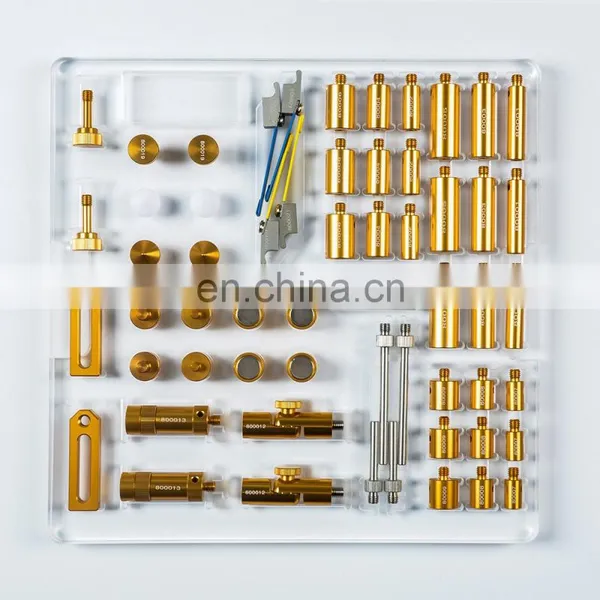

PARAMETER
Item | Serial No. | QTY |
12*50mm Standoff | 80001 | 6 |
12*30mm Standoff | 80002 | 6 |
16*50mm Standoff | 80003 | 6 |
16*30mm Standoff | 80004 | 6 |
20*50mm Standoff | 80005 | 6 |
20*30mm Standoff | 80006 | 6 |
12*20mm Standoff | 80007 | 6 |
16*20mm Standoff | 80008 | 6 |
20*20mm Standoff | 80009 | 6 |
Pusher clamp | 800010 | 2 |
Screw pusher clamp | 800011 | 2 |
Adjustable pivot joint | 800012 | 2 |
Adjustable jack stand | 800013 | 2 |
Magnet | 800014 | 4 |
Pin Standoff | 800015 | 2 |
Adptor | 800016 | 6 |
Base board screw | 800017 | 2 |
V post | 800018 | 2 |
Screws | 800019 | 4 |
Adjustable slide | 800020 | 8 |
Tenshion clamp | 800021 | 4 |
Hold down clamp | 800022 | 2 |
Short tension clamp support | 800023 | 2 |
Long tension clamp support | 800024 | 2 |
Cone | 800025 | 3 |
Nylon cone | 800026 | 3 |
Screw driver | 800027 | 2 |

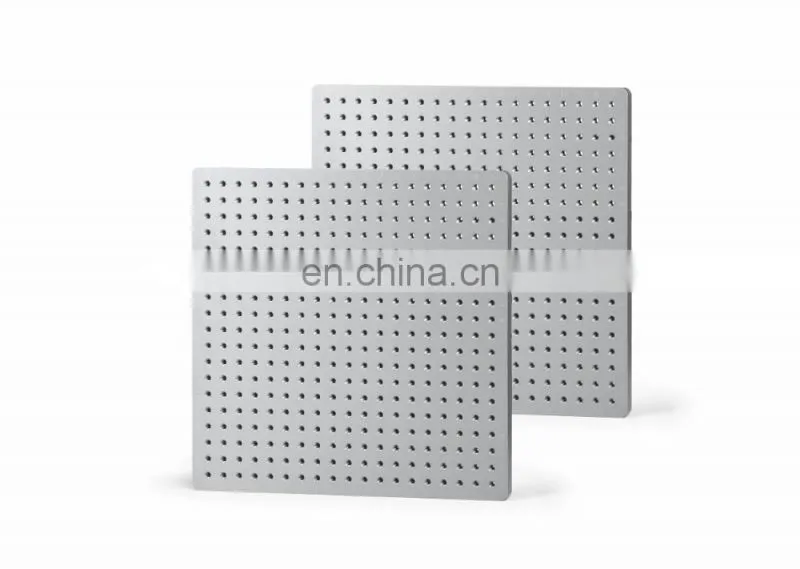

CMM Base Plates
Base Plate Size
400*300mm, M8 Thread holes
400*400mm, M8 Thread holes
500*500mm, M8 Thread holes
600*600mm, M8 Thread holes
Other customized sizes
400*400mm, M8 Thread holes
500*500mm, M8 Thread holes
600*600mm, M8 Thread holes
Other customized sizes
Product packaging
About us
UNIMETRO helps you to build your own business!
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.
Our service
Unimetro focus on per step in business process including the design, manufacture, installation and after sales service.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.
