Retailing VMM Fixtures Kits Fixing Clamps used on Video Measuring Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning，Easy to assemble, stable clamping force.
-
RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
RM12 transformer clamp，RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
DIN3352 F4 Resilient Non-rising Gate Valve
-
High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
-
manual type external line up clamp made in China with stocks
Product Description
Details Description
The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
Modular Fixtures-VMM

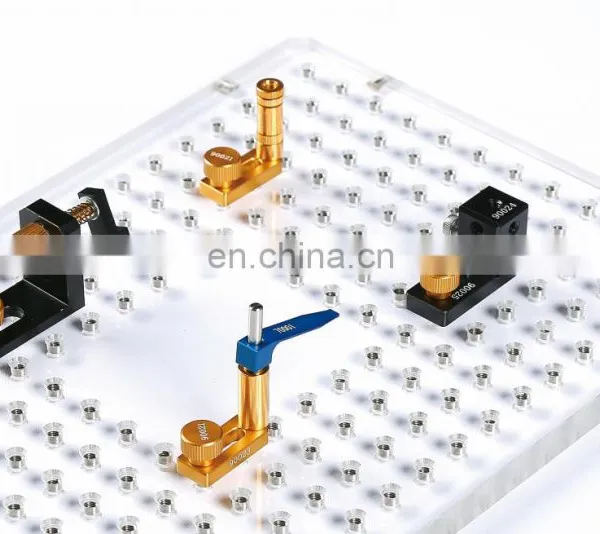

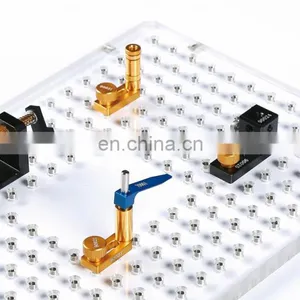

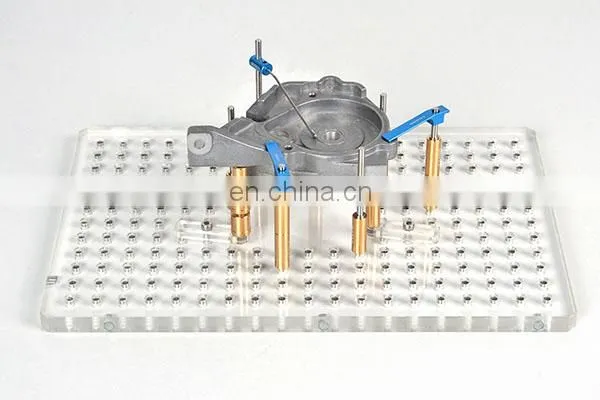

The Flexfix series VMM fixtures are designed as a complete components kit. We have studied most of the VMM measuring application
from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components.
from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components.

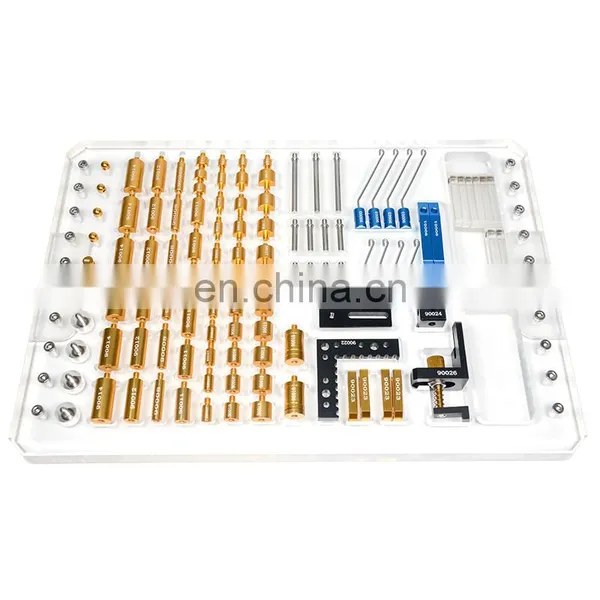

The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no
special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring
process.
special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring
process.
Fixtures Components
All components are made by precision manufacturing process and with anodise coating. Each part is with laser marking coding, so all the combination of the components can be repeatable for the subsequent inspections. Which helps to eliminate the variation of different parts or operators, and increasing the measuring accuracy and repeatability.
PARAMETER
Item | Serial No. | QTY |
Tenshion clamp | 90001 | 4 |
Short Wire tension clamp | 90002 | 4 |
Long Wire tension clamp | 90003 | 4 |
Short tension clamp support | 90004 | 8 |
Long tension clamp support | 90005 | 3 |

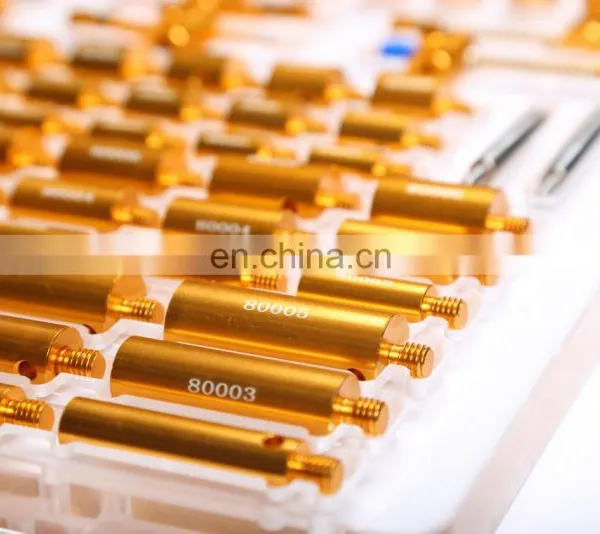

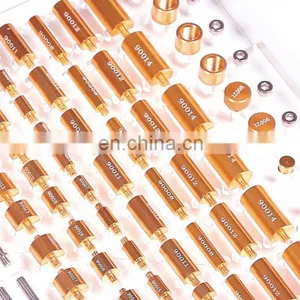

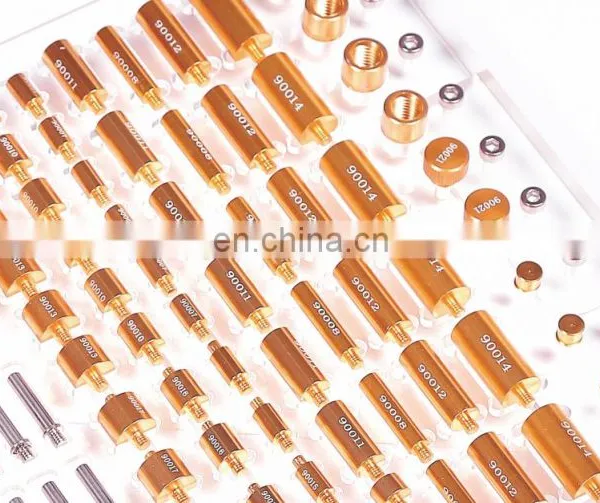

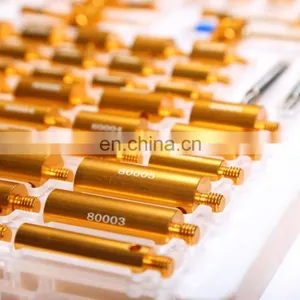

6*5mm standoff | 90006 | 3 |
6*10mm standoff | 90007 | 6 |
6*25mm standoff | 90008 | 6 |
9*5mm standoff | 90009 | 3 |
9*10mm standoff | 900010 | 6 |
9*20mm standoff | 900011 | 6 |
9*25mm standoff | 900012 | 6 |
12*10mm standoff | 900013 | 6 |
12*25mm standoff | 900014 | 6 |
6*10mm Flat standoff | 900015 | 4 |
9*10mm Flat standoff | 900016 | 4 |
12*10mm Flat standoff | 900017 | 4 |
9mm adjustable standoff | 900018 | 2 |
6mm ball type standoff | 900019 | 2 |
Muti direction adaptor | 900020 | 2 |
Tension sopport screw | 900021 | 2 |
L blcoks | 900022 | 1 |
Ajustable slide | 900023 | 4 |
Direction switching block | 900024 | 1 |
Direction switching block base | 900025 | 1 |
Tension sopport | 900026 | 1 |
M4-M8 adaptor | 900027 | 4 |
Transparent adjustable slide | 900028 | 8 |
M3 srew driver | 900029 | 1 |
Components packing | ||
M4*10 screws (20 pcs) | ||
Packing Suitcase |
Base Plate Size
300*200mm, M4 Thread holes
400*300mm, M4 Thread holes
300*300mm, M4 Thread holes
400*400mm, M4 Thread holes
Other customized sizes
400*300mm, M4 Thread holes
300*300mm, M4 Thread holes
400*400mm, M4 Thread holes
Other customized sizes
