Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture

Shenzhen Ruicheng Technology Co., Ltd.
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture thumbnail-1
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture thumbnail-2
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture thumbnail-3
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture thumbnail-4
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture thumbnail-5
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture photo-1
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture photo-2
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture photo-3
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture photo-4
Fast Shippment Fixing Clips on Video Measuring Machine Hardware Fixture photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Details Description
The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.

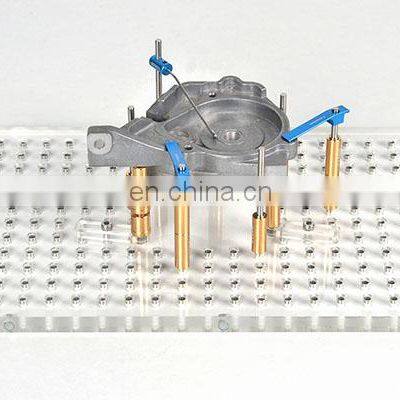

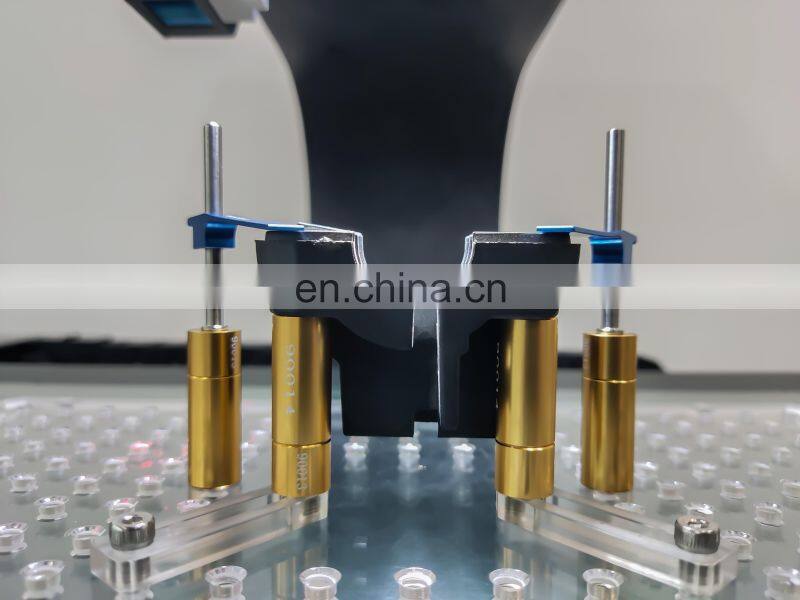

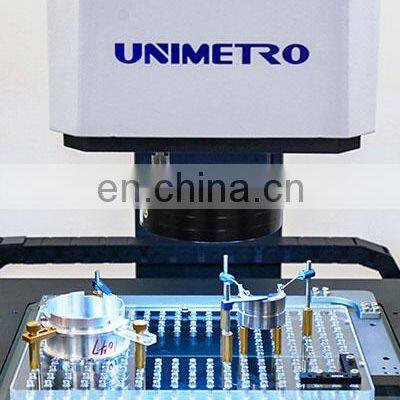

Modular Fixtures-VMM
The Flexfix series VMM fixtures are designed as a complete components kit. We have studied most of the VMM measuring application
from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components.
The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no
special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring
process.

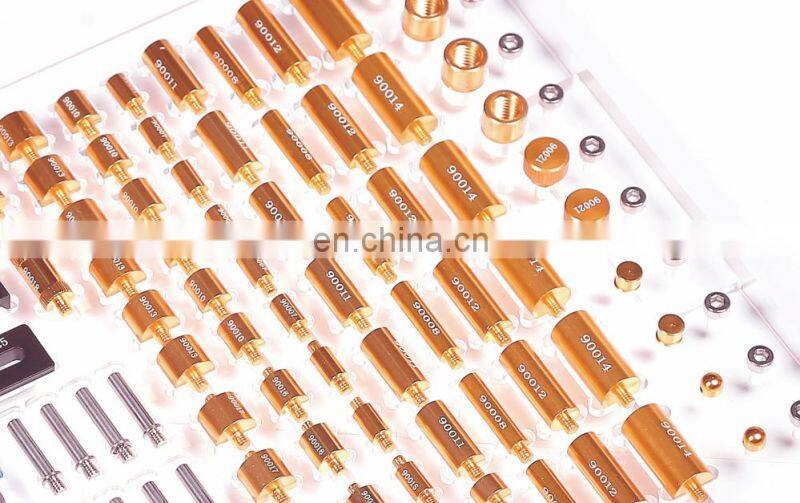

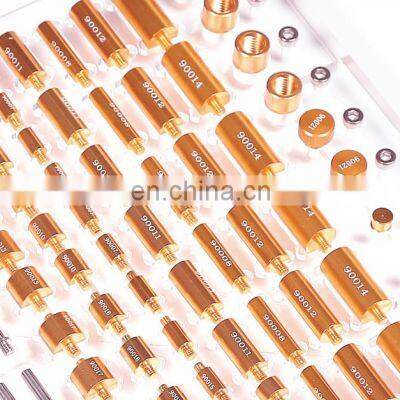

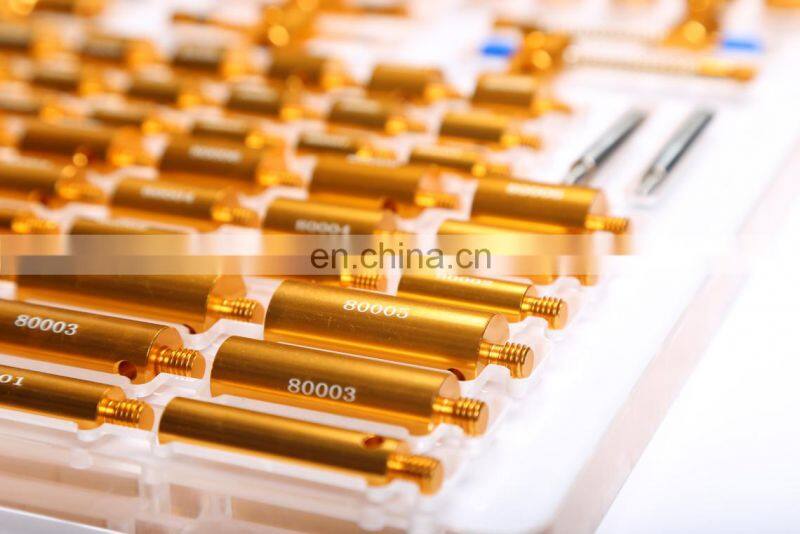

Fixtures Components

All components are made by precision manufacturing process and with anodise coating. Each part is with laser marking coding, so all the combination of the components can be repeatable for the subsequent inspections. Which helps to eliminate the variation of different parts or operators, and increasing the measuring accuracy and repeatability.
PARAMETER
Item
Serial No.
QTY
Tenshion clamp
90001
4
Short Wire tension clamp
90002
4
Long Wire tension clamp
90003
4
Short tension clamp support
90004
8
Long tension clamp support
90005
3
6*5mm standoff
90006
3
6*10mm standoff
90007
6
6*25mm standoff
90008
6
9*5mm standoff
90009
3
9*10mm standoff
900010
6
9*20mm standoff
900011
6
9*25mm standoff
900012
6
12*10mm standoff
900013
6
12*25mm standoff
900014
6
6*10mm Flat standoff
900015
4
9*10mm Flat standoff
900016
4
12*10mm Flat standoff
900017
4
9mm adjustable standoff
900018
2
6mm ball type standoff
900019
2
Muti direction adaptor
900020
2
Tension sopport screw
900021
2
L blcoks
900022
1
Ajustable slide
900023
4
Direction switching block
900024
1
Direction switching block base
900025
1
Tension sopport
900026
1
M4-M8 adaptor
900027
4
Transparent adjustable slide
900028
8
M3 srew driver
900029
1

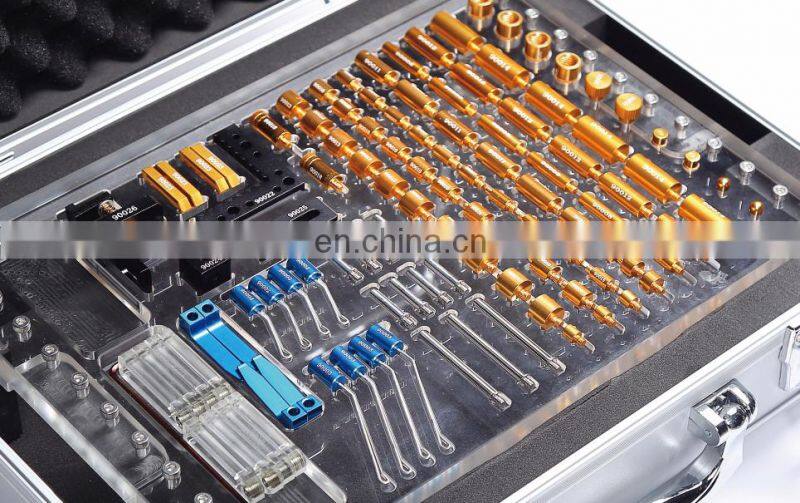

Components packing
M4*10 screws (20 pcs)
Packing Suitcase

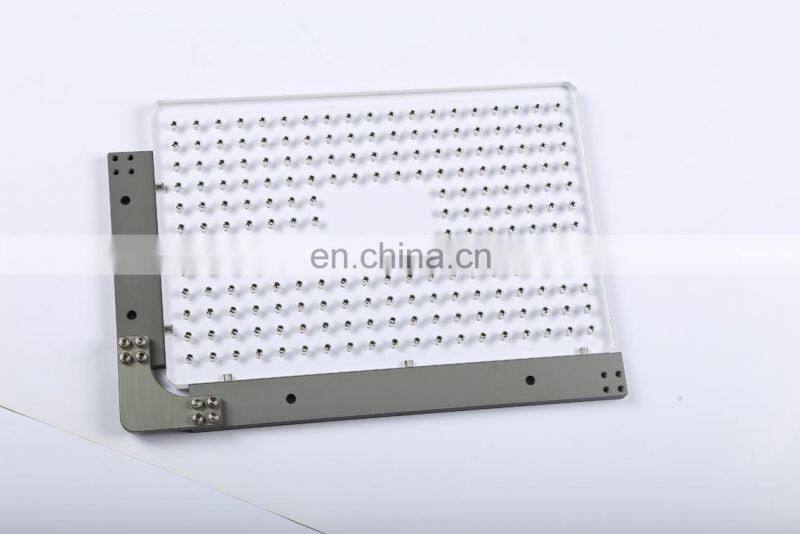

Base Plate Size
300*200mm, M4 Thread holes

400*300mm, M4 Thread holes

300*300mm, M4 Thread holes

400*400mm, M4 Thread holes

Other customized sizes
