measuring camera detection equipment video inspecting microscope

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

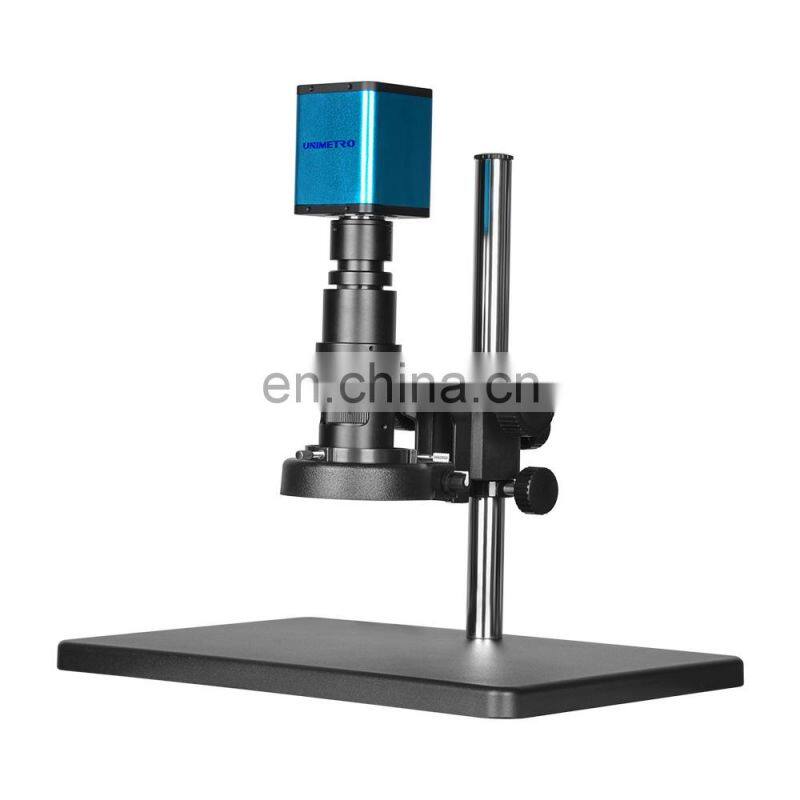

measuring camera detection equipment video inspecting microscope

Auto Focus Digital Microscope with multi measuring functions.

Product details

Product Name	Video Microscope
Lens Magnification	0.7,1.0,1.5,2.0,3.0,4.0,4.5X
Lens Working distance	80mm
CCD lens interface	C type
CCD Effective pixel	5M pixel
Image sensor	CMOS color / black and white
Color	Color / black and white
Field	2.5mm-22mm
Product Keywords	measuring microscope,camera detection equipment,video inspecting microscope

High Quality Auto Focus Video Microscope With Measurement Function

Video Microscope Introduction

Video microscope, also known as digital microscope, can observe samples from a new angle on the display without eyepiece, and can display and save high-quality full-color still images and dynamic high-definition films.

UNIMETRO video microscope adopts integrated body design, and a full set of optical system is independently developed. It has the functions of light source switching, continuous zoom, automatic focusing, precision measurement, etc.

Various Practical Functions

UNIMETRO video microscope has built-in image measurement software, which can easily take pictures, record videos, compare images, display images, measure crosshairs, mark, save and export data without computer; it can measure points, lines, circles, arcs and their related parameters, such as spacing, angle, radian, etc; it also has automatic edge finding, local amplification, exposure, color and other auxiliary adjustment tools, which makes the measurement more convenient and intuitive.

Characteristic

UNIMETRO video microscope has built-in HDMI high-definition output interface and external U disk to meet the storage requirements of image and video; USB interface can be connected with mouse to make the operation more convenient. This product is widely used in industrial testing, medical observation, teaching and scientific research, automation system and other fields, with clear imaging, strong three-dimensional sense, long working distance, wide field of vision and other characteristics, specially designed with a variety of lighting devices, led adjustable ring light source and fluorescent ring light source. Without external computer host, directly connect CCD and HDMI high-definition display, greatly saving space.

Technical parameters

Lens	Magnification	0.7,1.0,1.5,2.0.,3.0,4.0,4.5X
Lens	Working distance	80mm
Bracket	Lifting range	40mm
	Base size	380*260mm
	Column height	300mm
Camera	Lens interface	C type
	Shutter speed	1/50s(1/60s)~1/10000s
	Effective pixel	500W pixel
	OSD	Full digital UI design / mouse operation
	Output mode	HDMI
	Image sensor	CMOS color / black and white
	Storage mode	U disk storage / photo taking / video recording / measurement
	Color	Color / black and white
	Frame rate	1080P@60fps/1080P@50fps
	Target size	1/2.8〞
	Crosshairs	4 movable lines in horizontal and vertical directions respectively
	Measurement function	Distance measurement of point, line, rectangle, circle, arc, polygon, circle, ruler distance, point to line, line to line, angle automatic edge searching, etc
Total magnification		About 30-200 times adjustable (with 21 inch monitor)
Field		2.5mm-22mm

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

1. Are you a factory or trading company ?

We are a factory with over 10 years experience in Metrology industry.

2. What's your company mainly in?

We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixtures etc.

3. How to Choose the Appropriate Specification?

As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.

4. Do you accept customized service?

Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.

5. What is your warranty period?

Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
