Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine

Shenzhen Ruicheng Technology Co., Ltd.
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine thumbnail-1
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine thumbnail-2
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine thumbnail-3
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine thumbnail-4
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine photo-1
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine photo-2
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine photo-3
Wholesale CMM 108pc Fixtures Kits Fix the Workpiece on the Coordinate Measurement Machine photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Details Description
Title goes here.
The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
Modular Fixtures-VMM
FlexFix series CMM fixtures system is designed and developed by UNIMETRO which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components.
FlexFix series CMM fixtures are modular and can be expanded with user's requirements to provide a complete fixturing solution for any part regardless of its size, shape or material.
For multiple applications such as electronics, aerospace, automotive, plastic or medical care, the FlexFix series can provide a full solution to the CMM fixturing requirements. The series offers fixture plates with M8 threaded fittings in a wide choice of standard sizes, which are made of high accurate aluminum material and with complex manufacturing process, to ensure the accuracy and reliability of the system. Perfect fixturing solutions can be assembled very quickly without any tools to increase throughput and avoid delays in inspection.
Fixtures Components

The Flexfix series Fixturing components are designed to hold components firmly with the minimum necessary force and without any special tools, all components are with different function including supporting, clamping or pressing. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts. Also it is easy to set up a clear probe path of 3D measuring.
PARAMETER
Item
Serial No.
QTY
12*50mm Standoff
80001
6
12*30mm Standoff
80002
6
16*50mm Standoff
80003
6
16*30mm Standoff
80004
6
20*50mm Standoff
80005
6
20*30mm Standoff
80006
6
12*20mm Standoff
80007
6
16*20mm Standoff
80008
6
20*20mm Standoff
80009
6
Pusher clamp
800010
2
Screw pusher clamp
800011
2
Adjustable pivot joint
800012
2
Adjustable jack stand
800013
2
Magnet
800014
4
Pin Standoff
800015
2
Adptor
800016
6
Base board screw
800017
2
V post
800018
2
Screws
800019
4
Adjustable slide
800020
8
Tenshion clamp
800021
4
Hold down clamp
800022
2
Short tension clamp support
800023
2
Long tension clamp support
800024
2
Cone
800025
3
Nylon cone
800026
3
Screw driver
800027
2

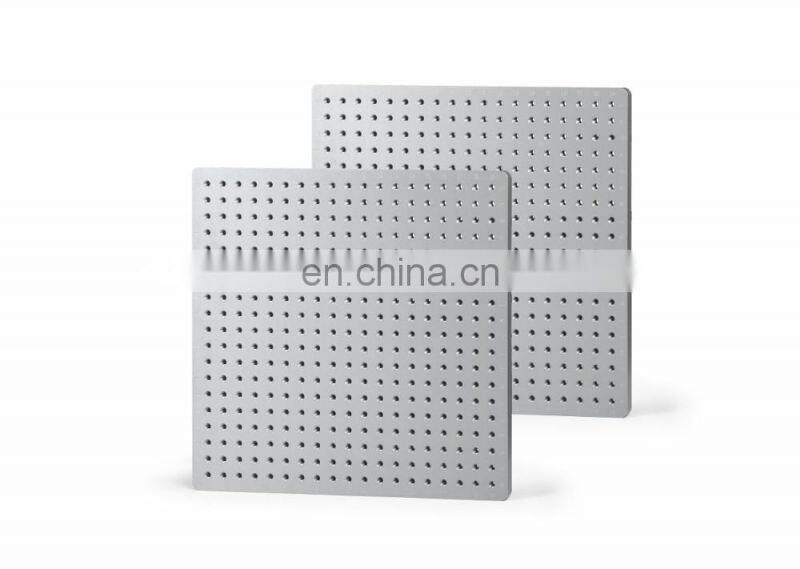

CMM Base Plates
Base Plate Size
400*300mm, M8 Thread holes

400*400mm, M8 Thread holes

500*500mm, M8 Thread holes

600*600mm, M8 Thread holes

Other customized sizes

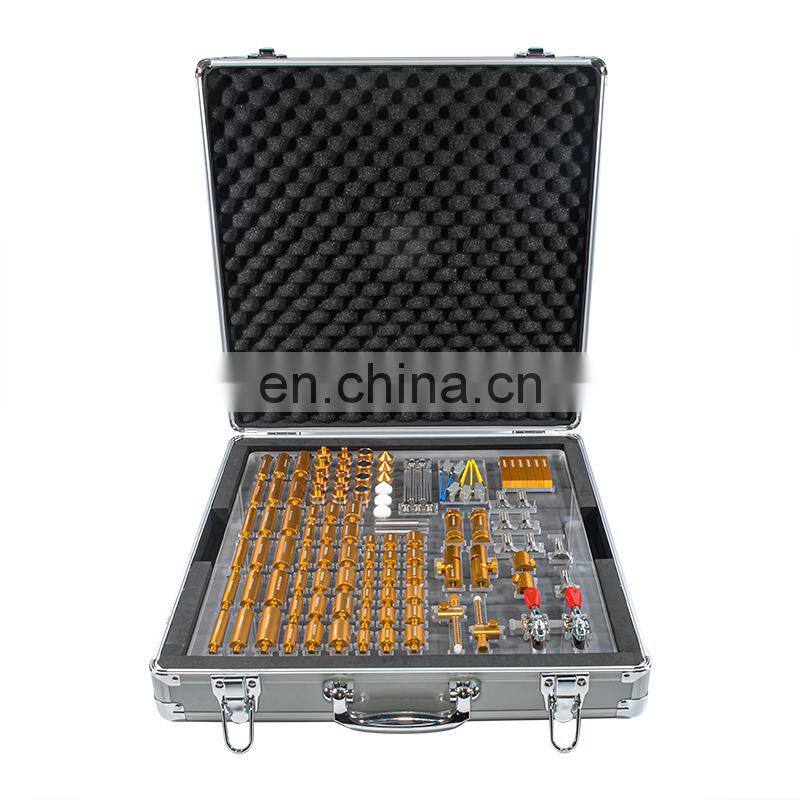

Product packaging
About us

UNIMETRO helps you to build your own business!

UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.
Our service
Unimetro focus on per step in business process including the design, manufacture, installation and after sales service.
On-site service and guidance:
* 24 Hours online by phone, email, whatsup, skype, youtube, facebook…etc.
* Spot stock, Fast delivery
* After sale service
1 year warranty service and Free test software upgrades.
Technical training for technical engineers.
Provide matching testing solutions.
Site installation equipment and usage instructions.
