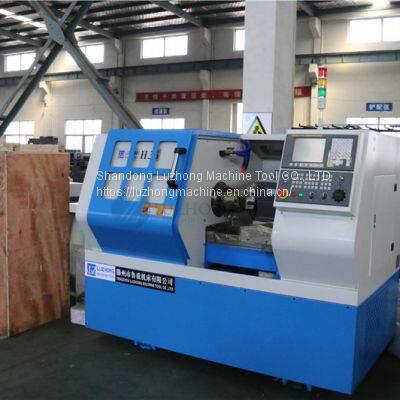

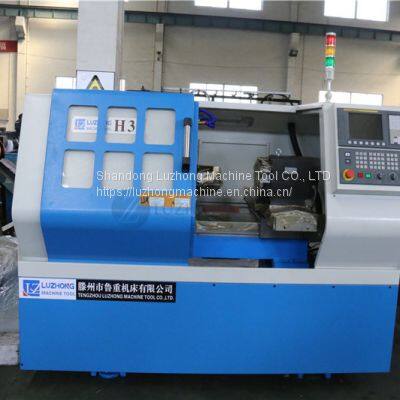

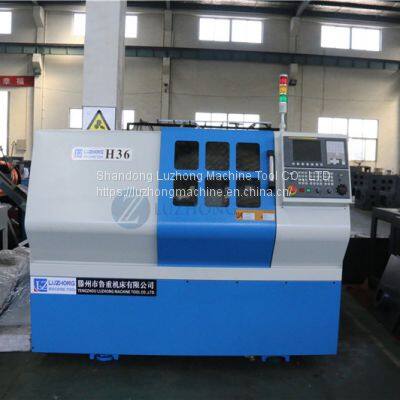

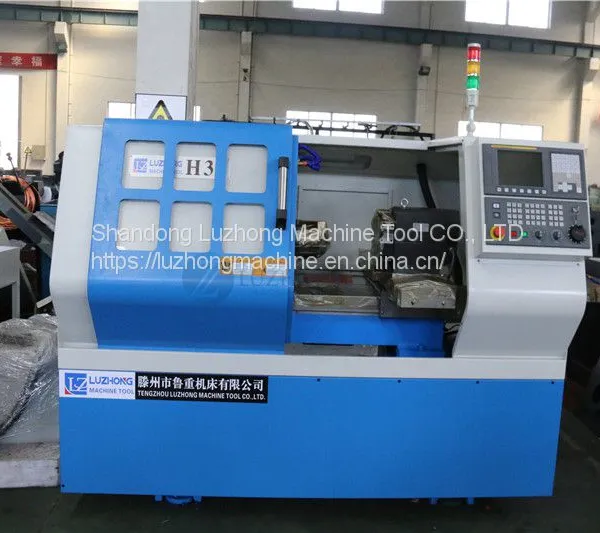

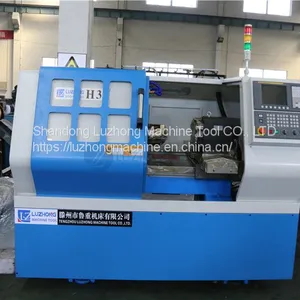

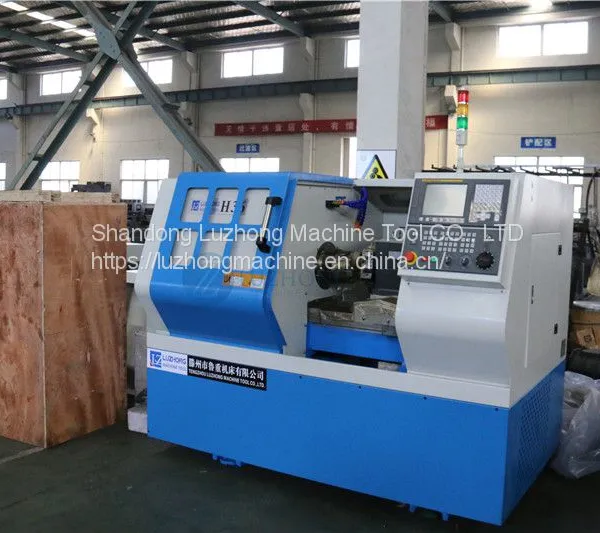

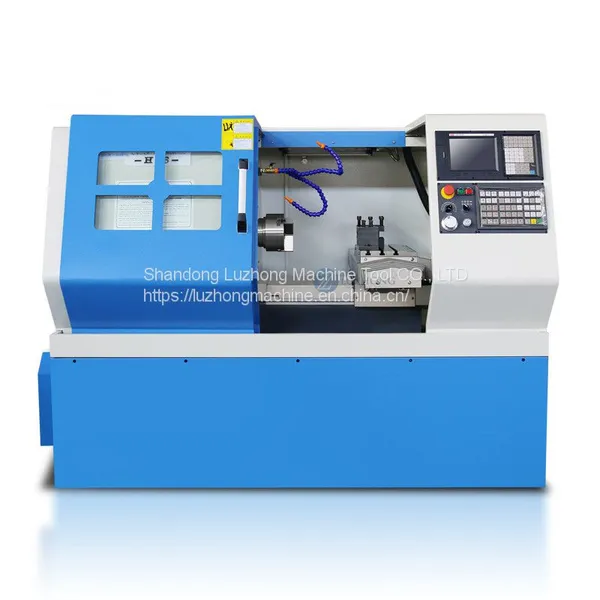

H36/H46 Horizontal Metal Cheap Flat Bed CNC Lathe Machine price
Product Description
Product Parameters
SPECIFICATIONS | Units | H36 | H46 |
Swing over bed | mm | 360 | 460 |
Swing over cross slide | mm | 110 | 140 |
Distance between centers | mm | 250 | 330 |
Spindle bore | mm | 48 | 56 |
Spindle nose type | - | A2-5 | A2-5 |
Spindle speed steps | - | Stepless | Stepless |
Spindle speed range | rpm | 2500(Optional:4000) | 3500 |
Turret/tool post | - | Gang type | Gang type |
Tool size | mm | 20 x 20 | 25 x 25 |
X axis travel | mm | 340 | 360 |
Z axis travel | mm | 250 | 330 |
X axis rapid traverse | mm/min | 15000 | 15000 |
Z axis rapid traverse | mm/min | 15000 | 15000 |
Main spindle motor | kw | 4 | 5.5 |
Guide rail type | - | Linear rail | Linear rail |
Machine weight | kg | 1500 | 2200 |

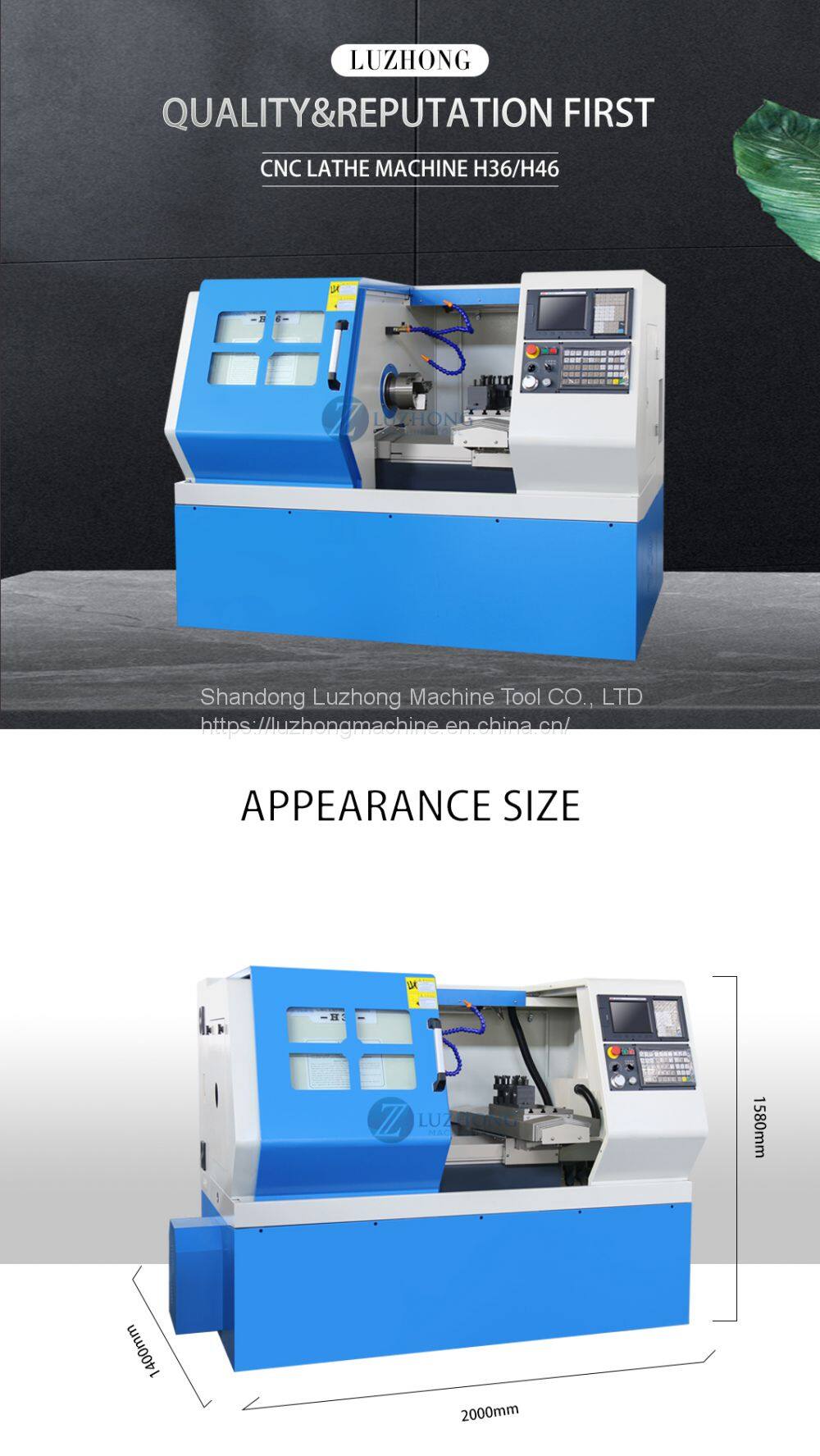

Overall dimension | mm | 2000x1400x1580 | 2300x1800x1600 |

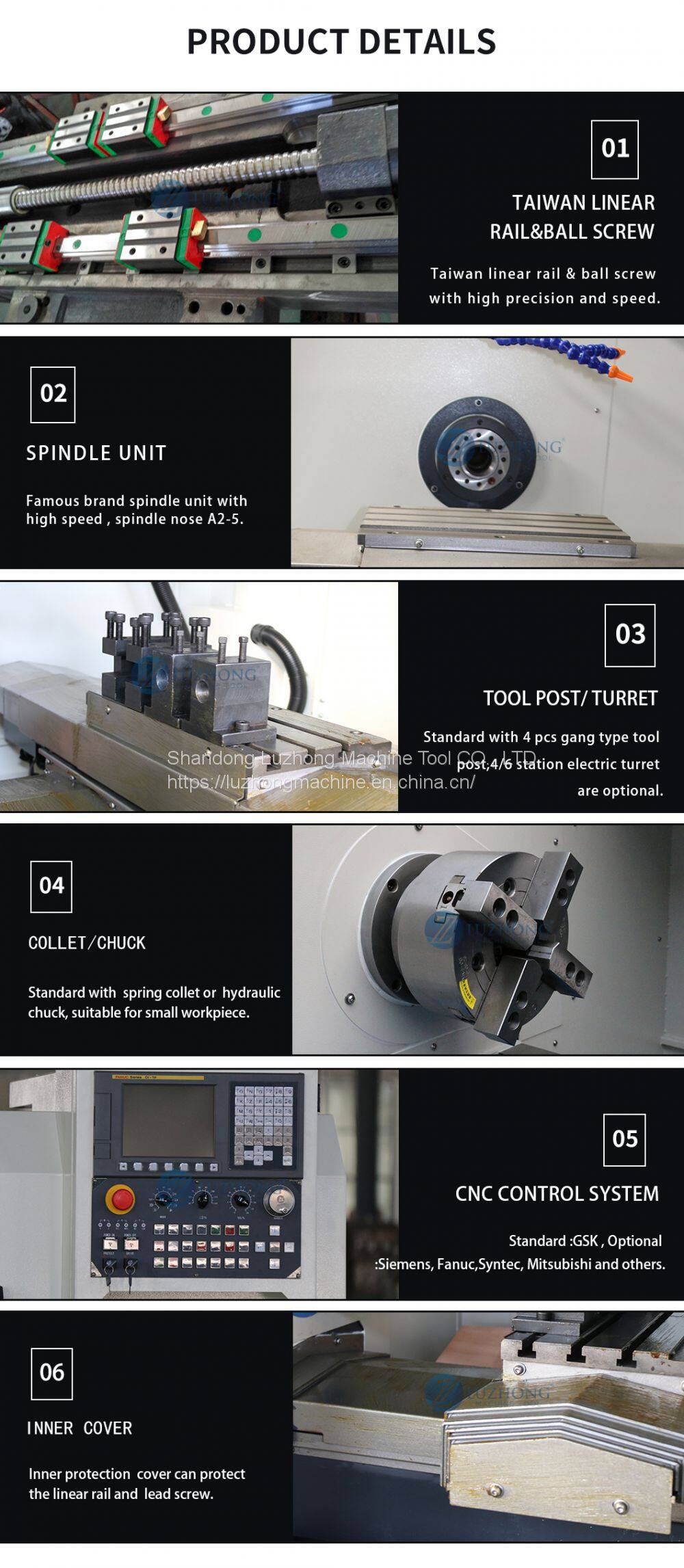

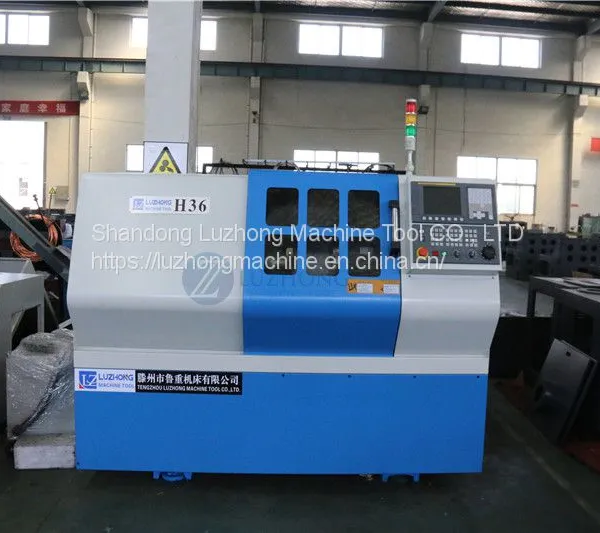

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
