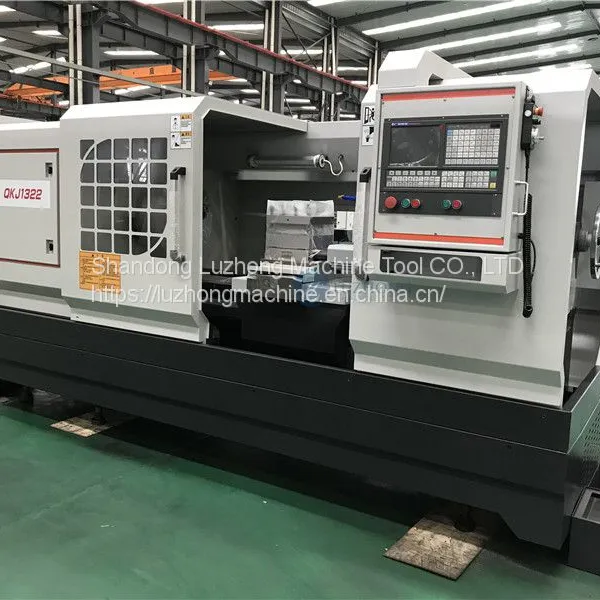

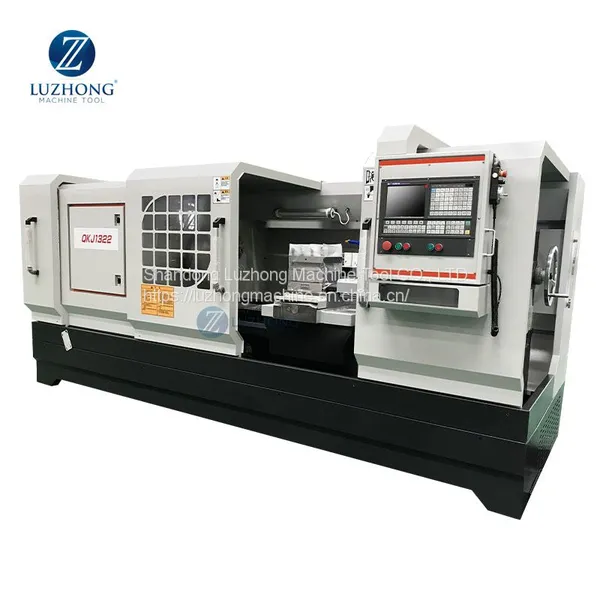

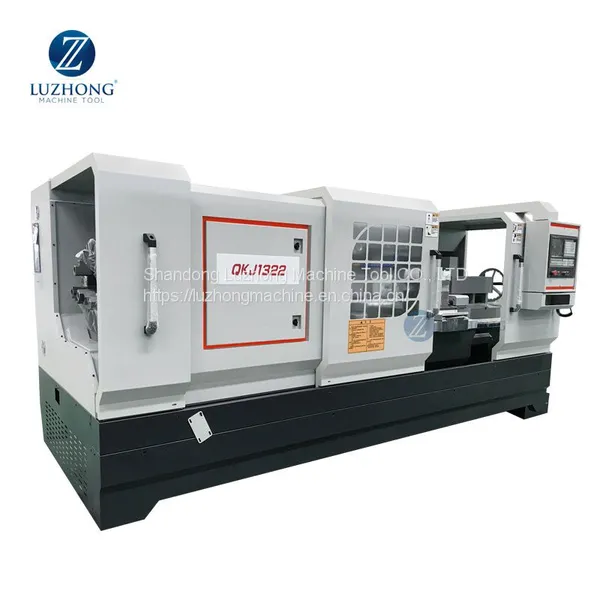

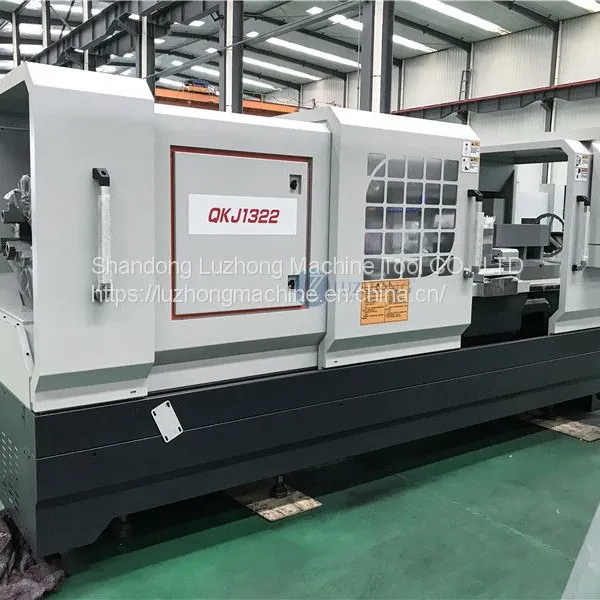

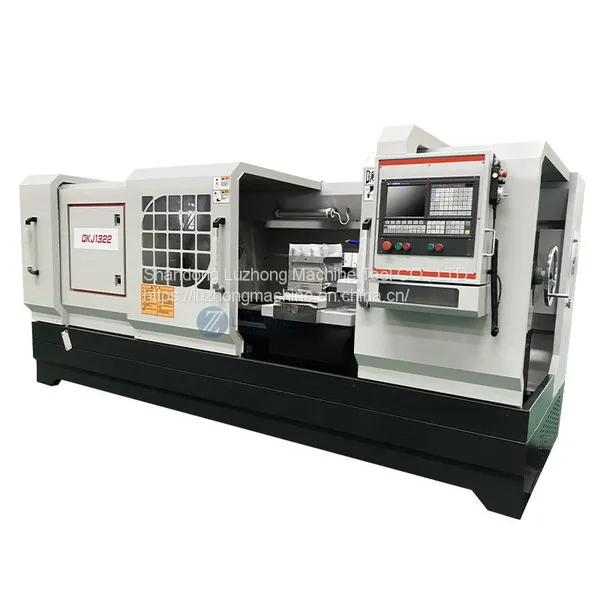

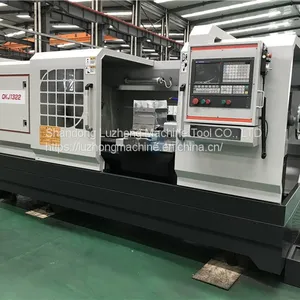

QK1322 Horizontal lathe machine Mini metal lathe machine
Product Description
CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
CNC turret 4 position |
Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield |
Product Parameters
SPECIFICATION |
Units |
QK1322 |
|
Swing over bed |
mm |
630/800 |
|
Swing over cross slide |
mm |
340/520 |
|
Distance between centers |
mm |
1000/1500/3000 |
|
Pipe threading range |
mm |
50-220 |
|
Guideway width |
mm |
550 |
|
Max. load capacity |
T |
3 |
|
Spindle bore |
mm |
225 |
|
Spindle speed steps |
- |
VF. 4 steps |
|
Spindle speed range |
rpm |
20-550 |
|
Chuck |
mm |
φ500 3-jaw manual |
|
Turret/tool post |
- |
CNC turret 4 position |
|
Tool shank size |
mm |
32 x 32 |
|
X axis travel |
mm |
320/420 |
|
Z axis travel |
mm |
850/1350/2850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ100 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kW |
11 |
|
Coolant pump motor |
kW |
0.125 |
|
Weight for 1000 |
kg |
4700 |
|
Weight for 1500 |
kg |
5200 |
|
Weight for 3000 |
kg |
6200 |
|

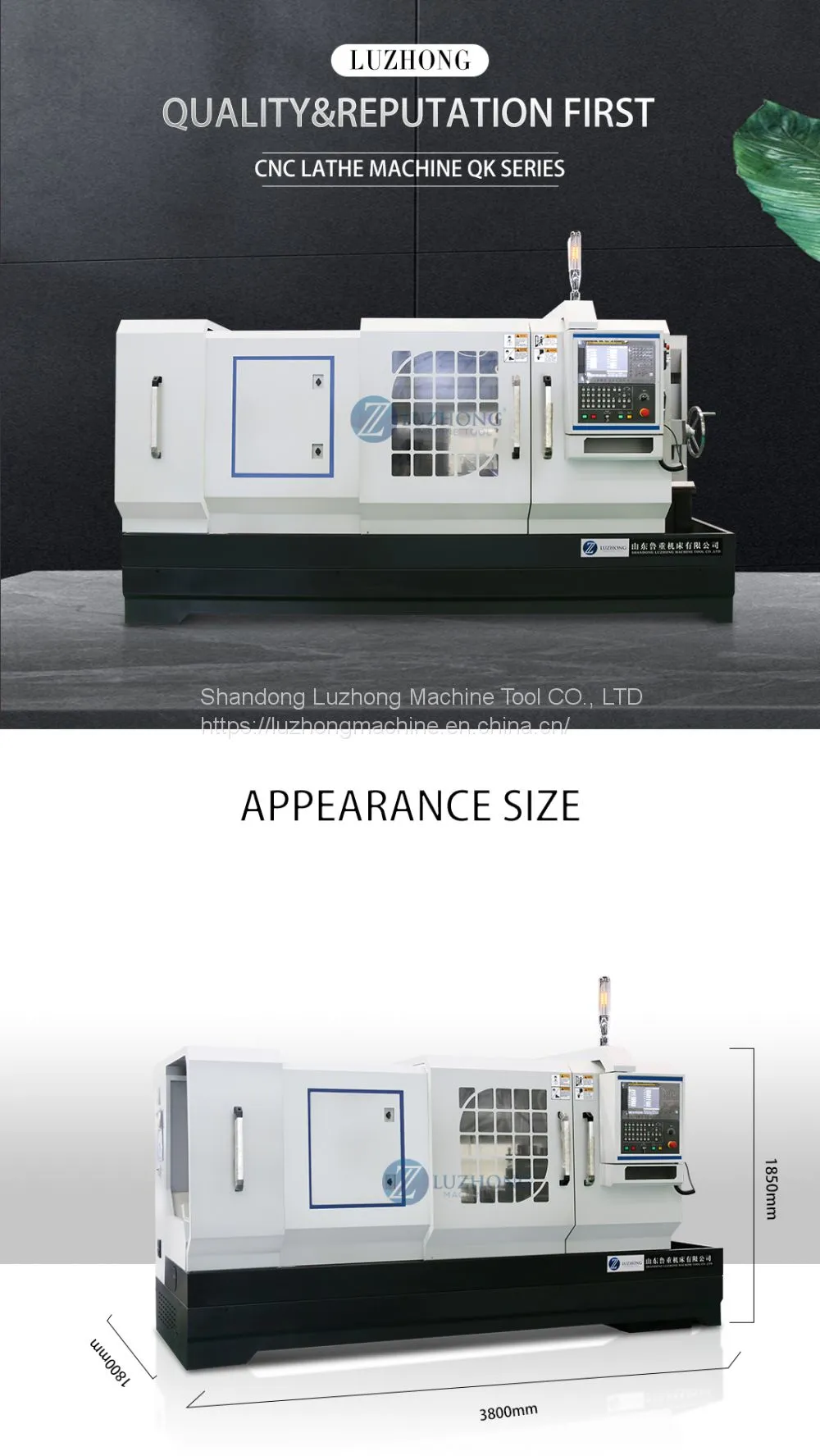

Dimension for 1000 |
mm |
5000x1880x1850 |
|
Dimension for 1500 |
mm |
6500x1880x1850 |
|
Dimension for 3000 |
mm |
7500x1880x1850 |
|

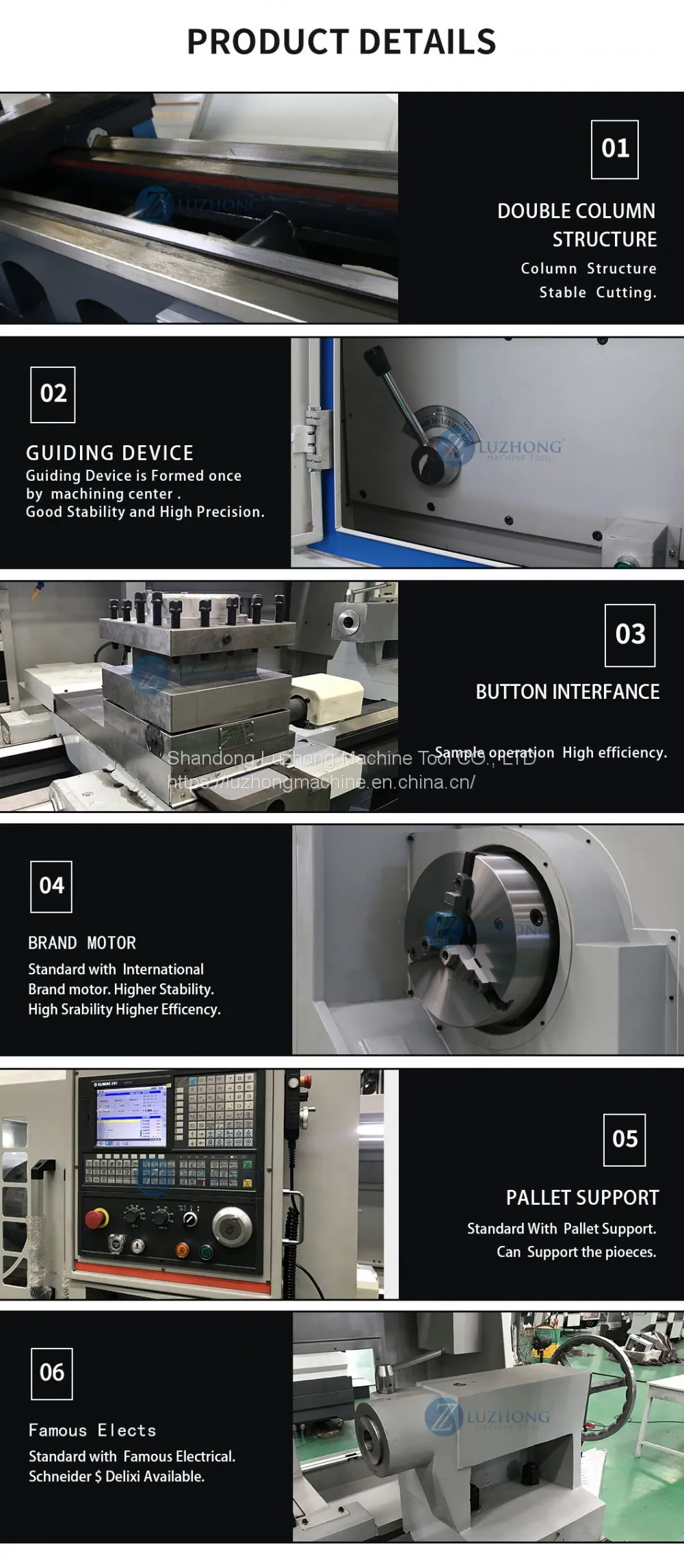

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
