TCK36A Luzhong metal TCK36A cnc turning center lathe with slant bed linear rail
Product Description
45 degree slant bed
High rigidity cast iron
High accuracy Taiwan linear guide ways

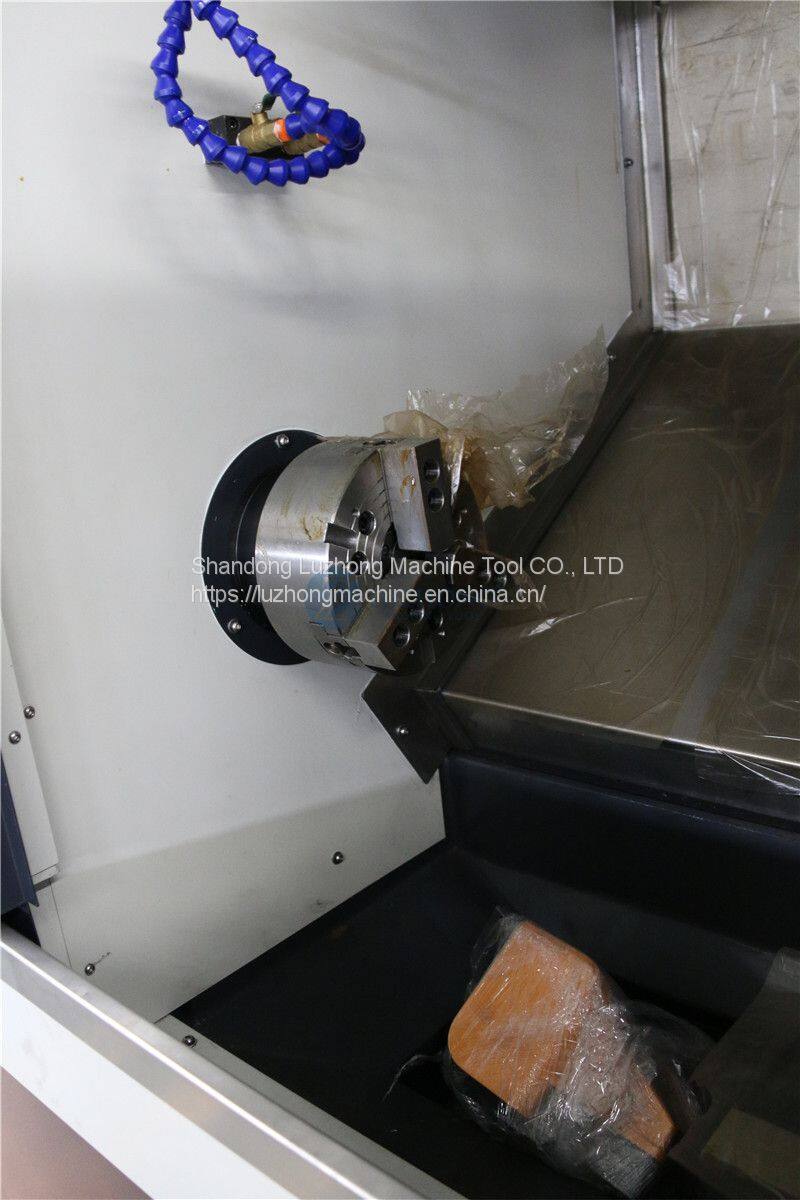

Hydraulic chuck
Hydraulic tailstock

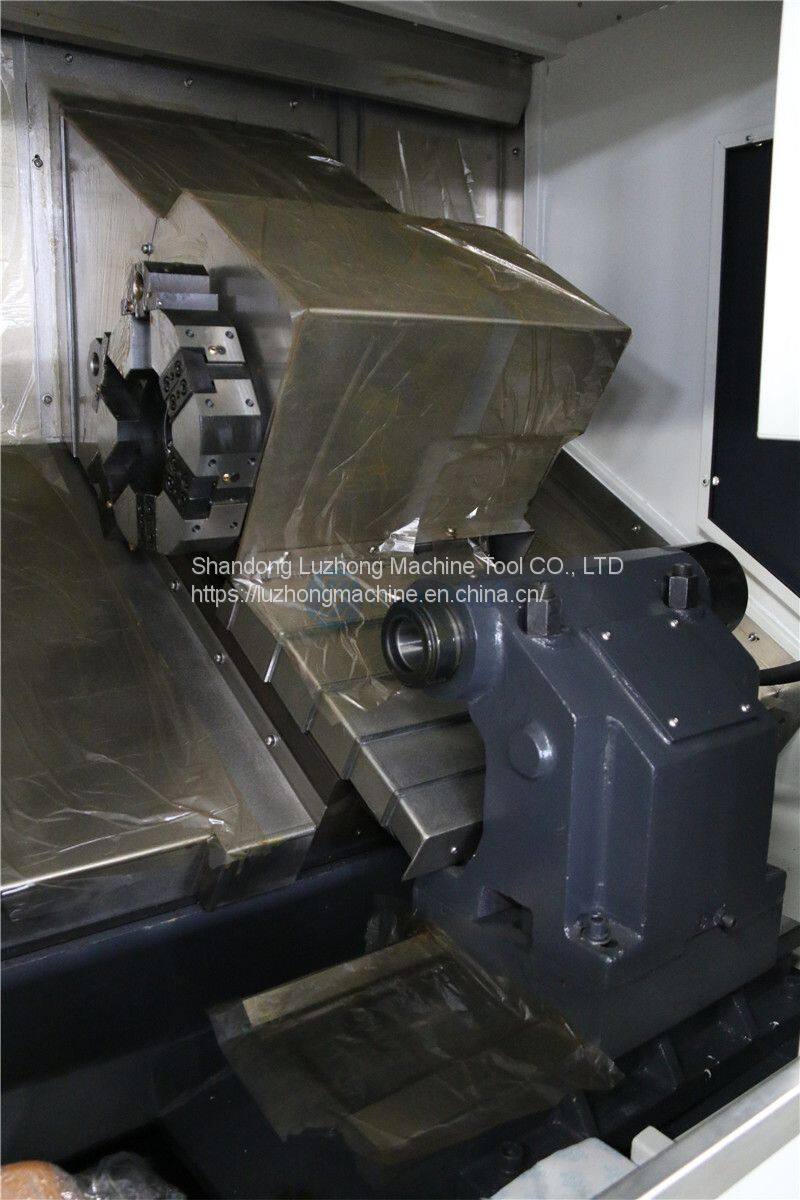

8 Station hydraulic turret
Product Parameters
Specification | Units | TCK36A |
Max.swing over bed | mm | 360 |
Max.swing slide | mm | 170 |
chuck | Hydraulic chuck 6 inch | |
Spindle taper | A2-5 | |
X travel | mm | 310 |
Z travel | mm | 350 |
Max machining length | mm | 300 |
Guide rail form | Taiwan guide rail | |
Spindle speeds | rpm | 4000 |
Spindle tube diameter | mm | 48 |
Rapid feed speed | m/min | X:15 Z:20 |
X/Z motor range | Nm | 6 |
Spindle motor power | kw | 3.7 |
Tailstok | Hydarulic taistock | |
X/Z repositioning accuracy | mm | ±0.003 |
Machine dimension(L*W*H) | mm | 2150x1500x1750 |
Weight | kgs | 2200 |

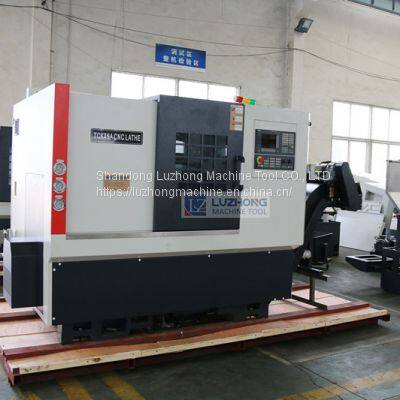

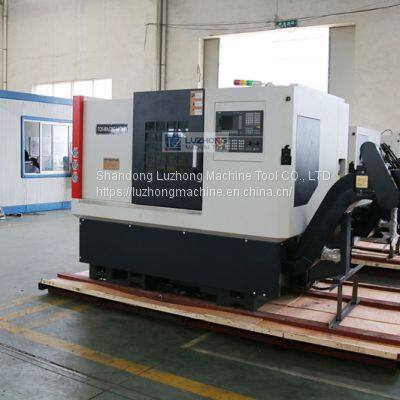

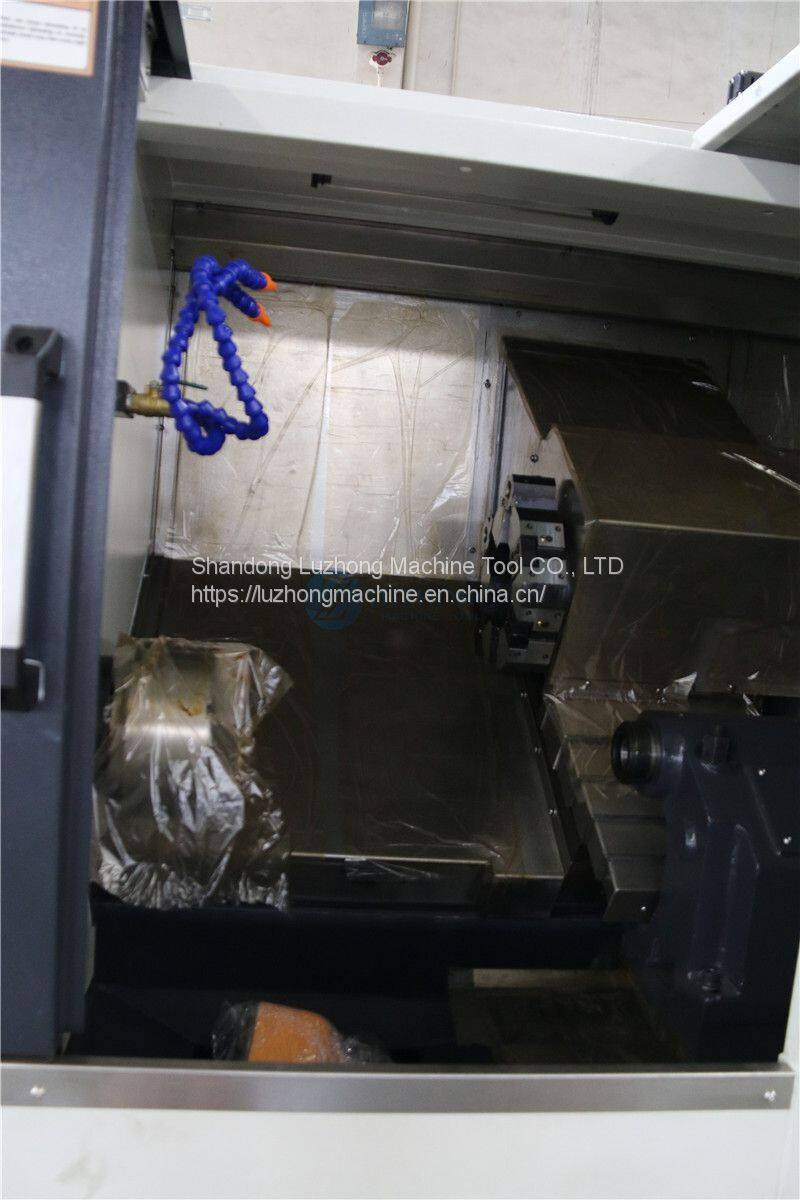

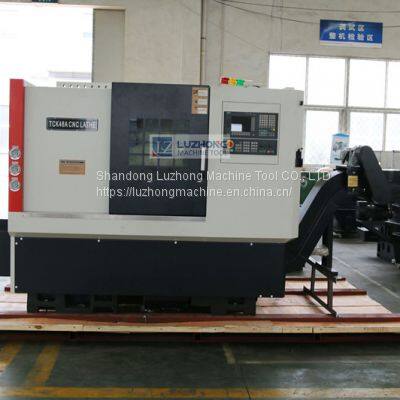

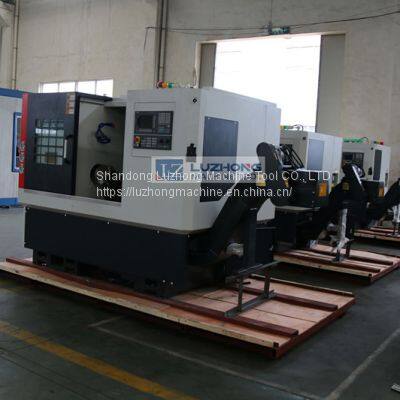

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
