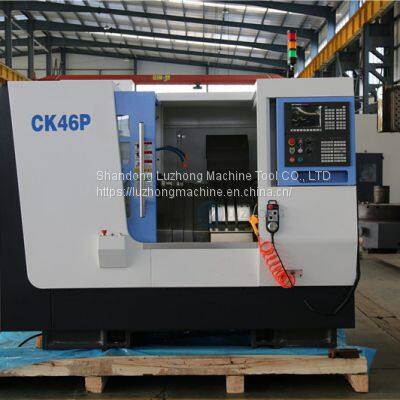

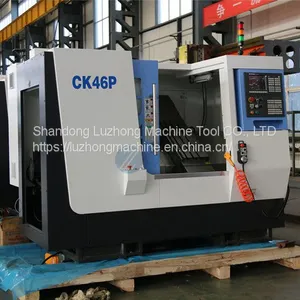

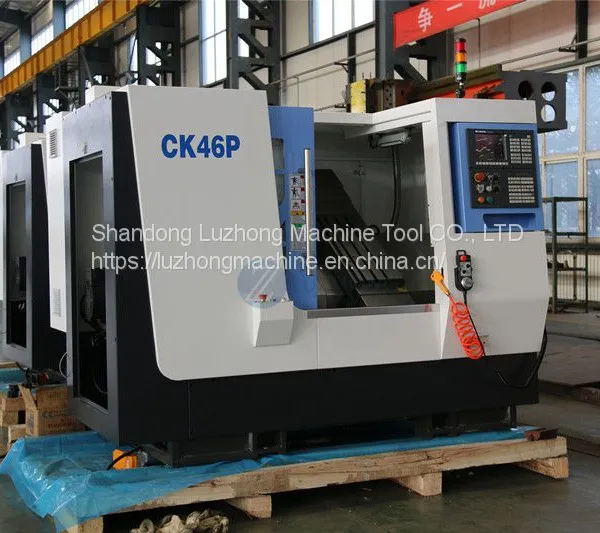

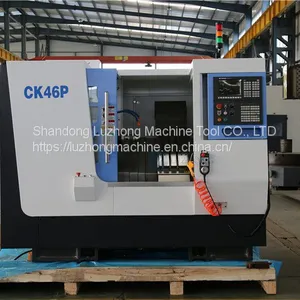

CK46P High Speed High Precision Automatic CNC Slant Bed Linear Rail Lathe Machine
Product Description
Product Parameters
Specifications | Units | CK46P |
Max.swing over bed | mm | 360 |
Max. Swing over cross slide | mm | 110 |
Max. Processing length | mm | 330 |
Cross slide length | mm | 600 |
Distance between cross slide and spindle axis | mm | 55 |
Spindle nose | A2-5 | |
Spindle speed range | R/min | 50-5000 |
Spindle bore | mm | 56 |
Bar capacity | mm | 45 |
Spindle motor power | kw | 7.5 |
X/Z axis travel | mm | 410/330 |
Tool post type | Gang type tool post | |
X/Z axis positioning accuracy | mm | 0.006 |
X/Z axis repositioning accuracy | mm | 0.003 |
X/Z rapid traverse | Mm/min | 24000 |

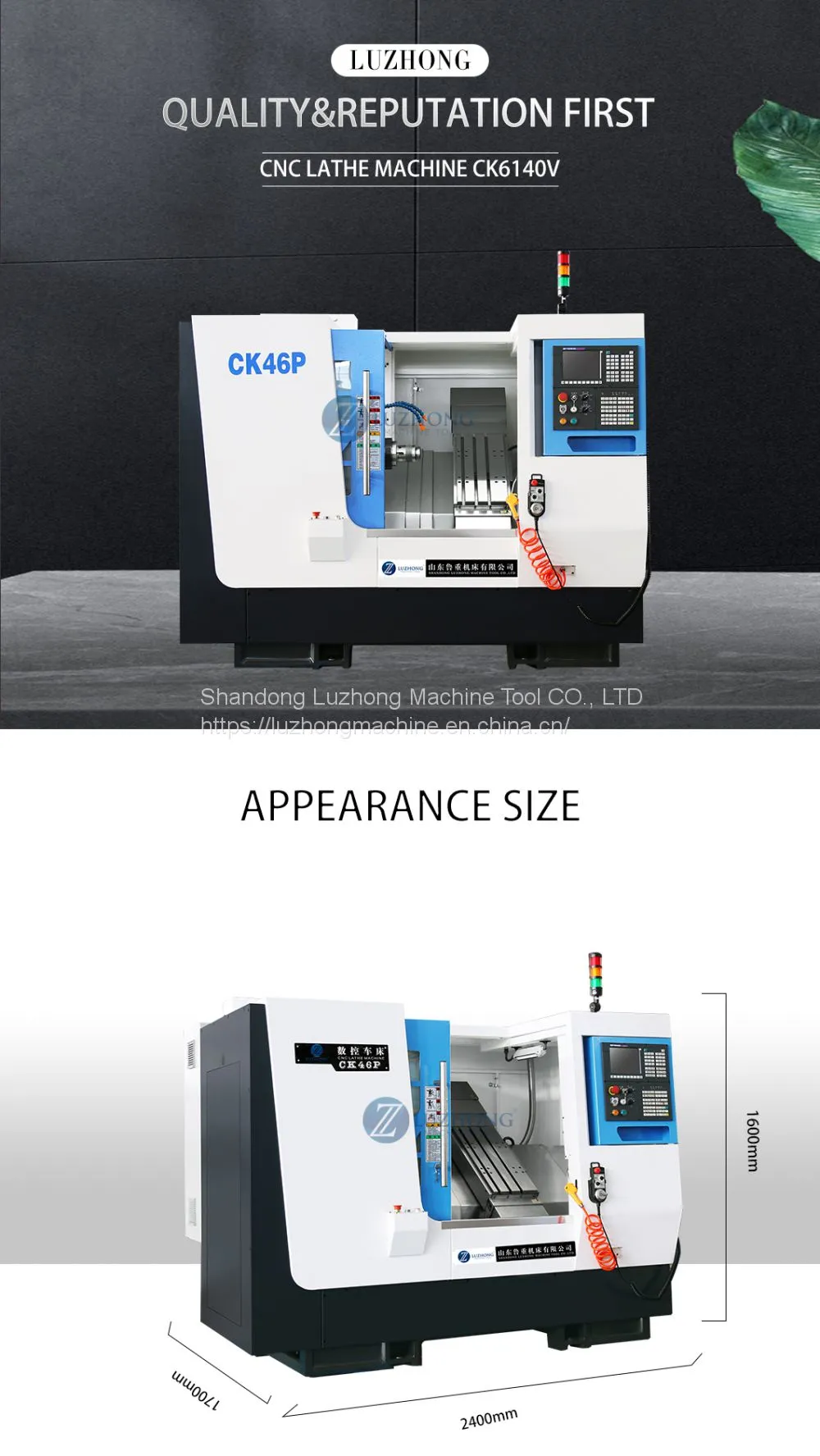

Machine dimension(LxWxH) | mm | 2400x1700x1600 |
Net weight | Kg | 2800 |

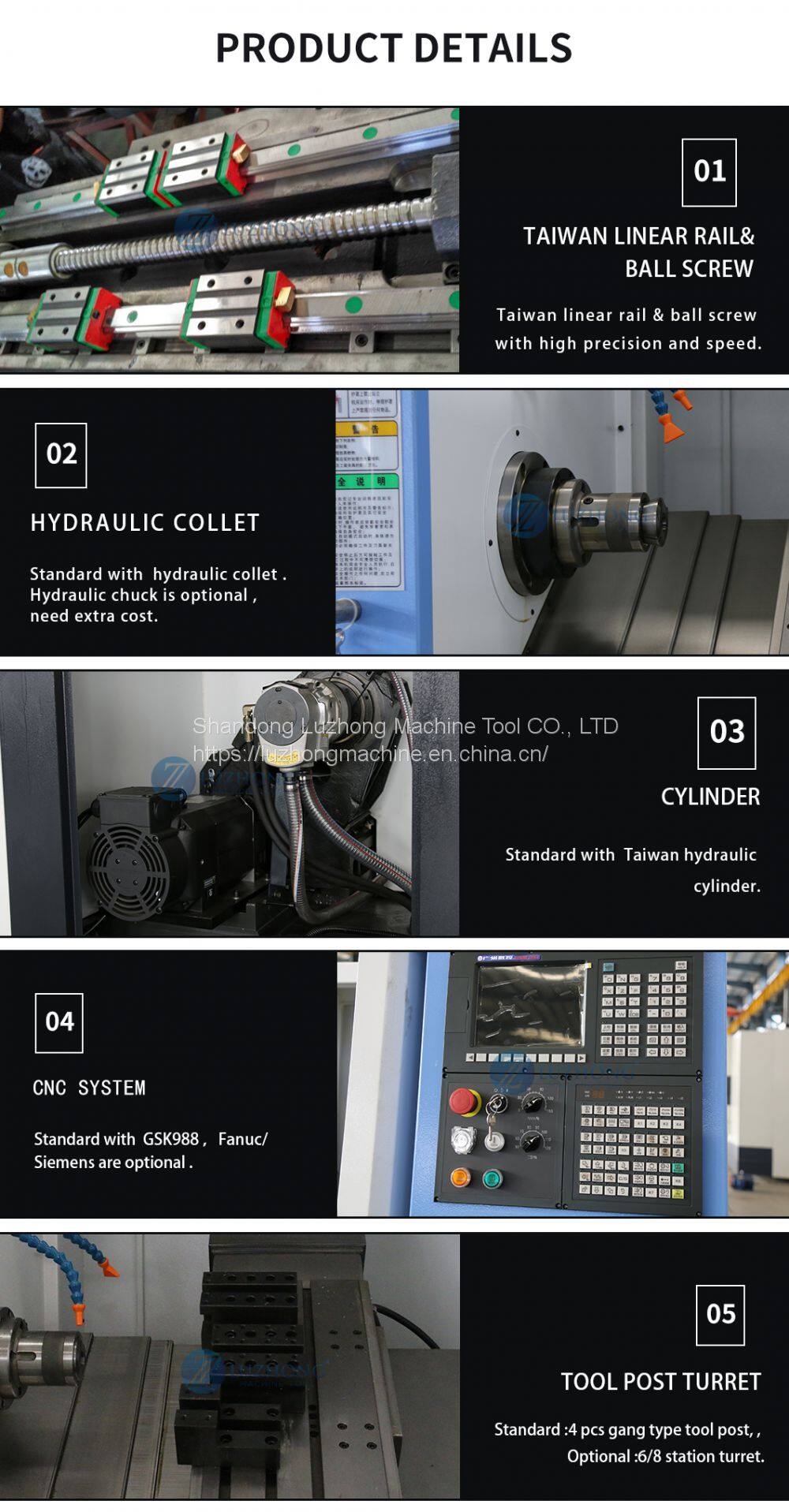

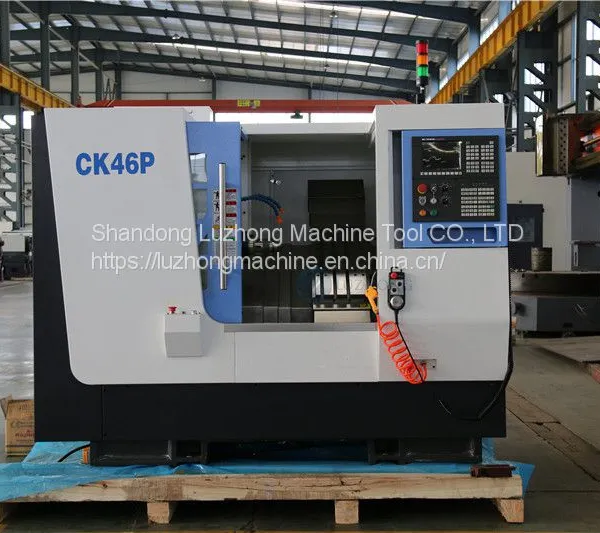

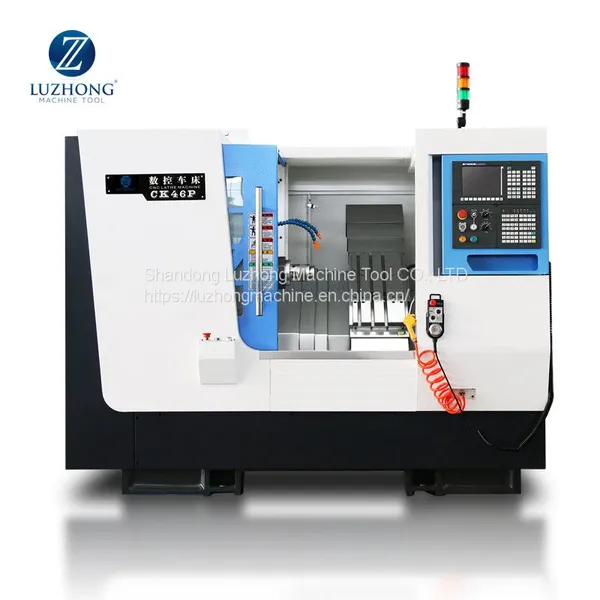

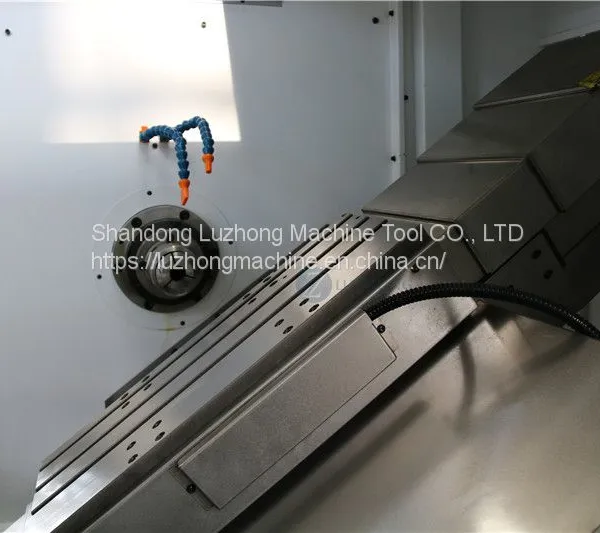

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
