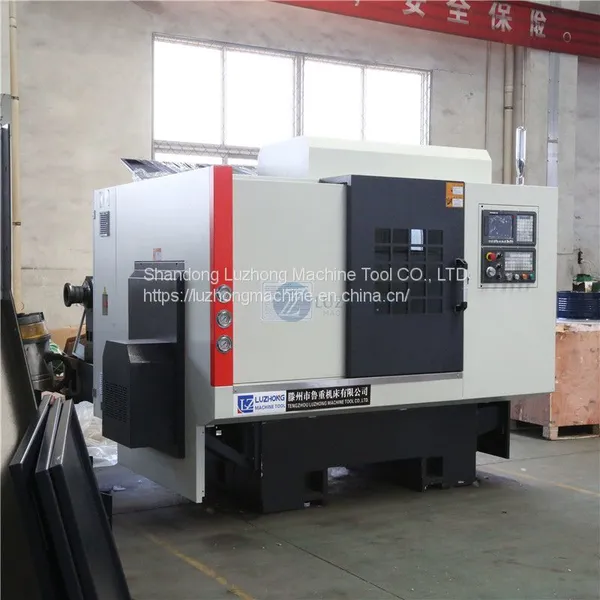

TCK6350 Torno CNC Machine with 4 Axis CNC Lathe Machine Horizontal Heavy Duty CNC Metal Precision
Product Description
Application：
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various
metric and inch threads etc, with higher efficiency and higher precision in bulk.
The main performance characteristics：
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure

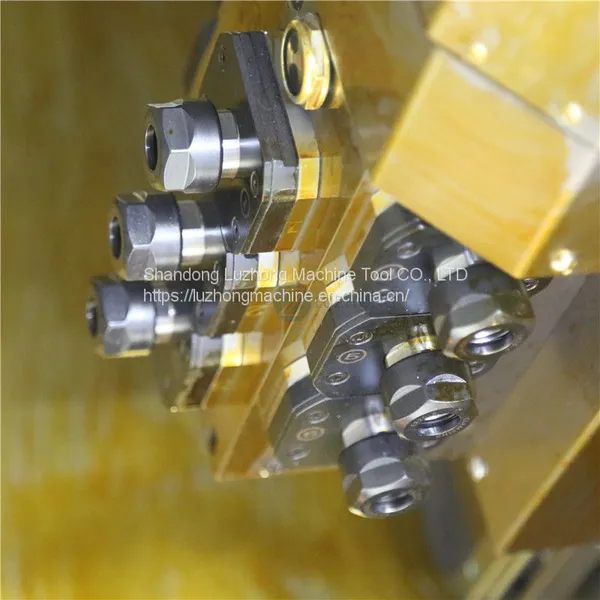

5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW

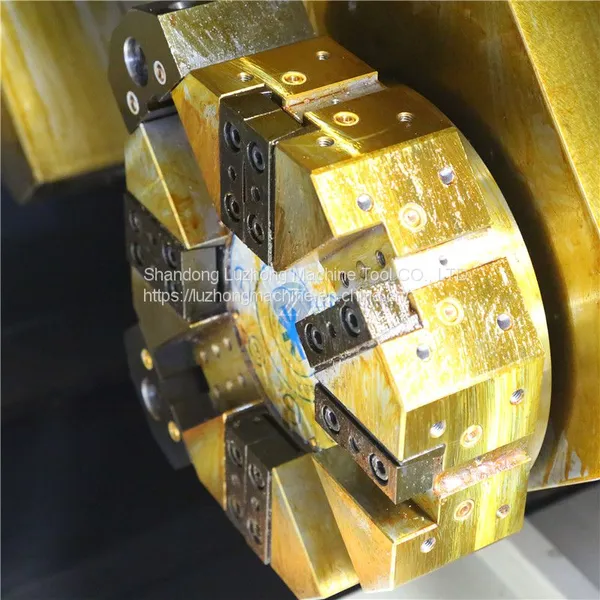

Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
Product Parameters
Specification |
Unit |
TCK6340 |
TCK6350 |
Max. swing over bed |
mm |
400 |
Φ520 |
Max. swing over cross slide |
mm |
140 |
Φ220 |
Max. processing length |
mm |
300 |
410( gang tool)/330 (turret) |
X/Z axis travel |
mm |
380/350 |
500/500 |

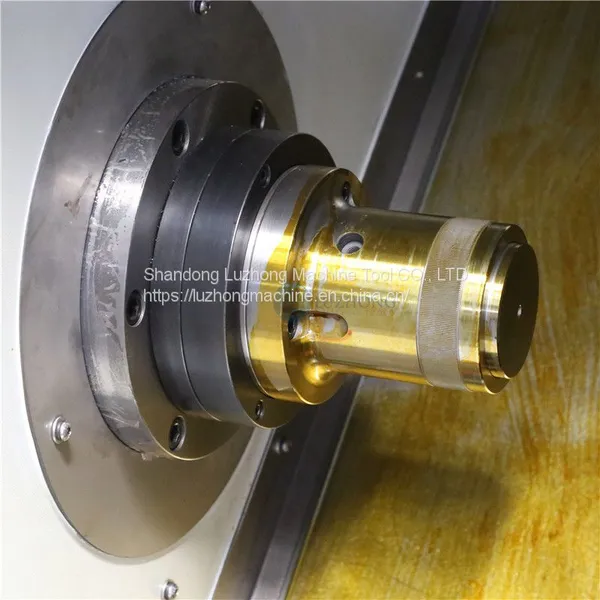

Spindle unit |
mm |
170 |
200 |
Spindle nose |
A2-5 |
A2-6(A2-8 optional) |
|
Spindle bore |
mm |
56 |
66 |
Spindle drawing pipe diameter |
mm |
45 |
55 |
Spindle speed |
rpm |
3500 |
3000 |
Chuck size |
inch |
6/8 |
10 |
Spindle motor |
kw |
5.5 |
7.5/11 |
X/Z repeatability |
mm |
±0.003 |
±0.003 |
X/Z axis feed motor torque |
N.m |
6/6 |
7.5/7.5 |
X/Z rapid traverse |
m/min |
18/18 |
18/18 |
Tool post type |
Gang type tool post |
Gang type tool post |
|
Cutting tool shape size |
mm |
20*20 |
25*25 |
Guide form |
45° inclined guide rail |
45° inclined guide rail |
|
Total power capacity |
kva |
9/11 |
14/18 |

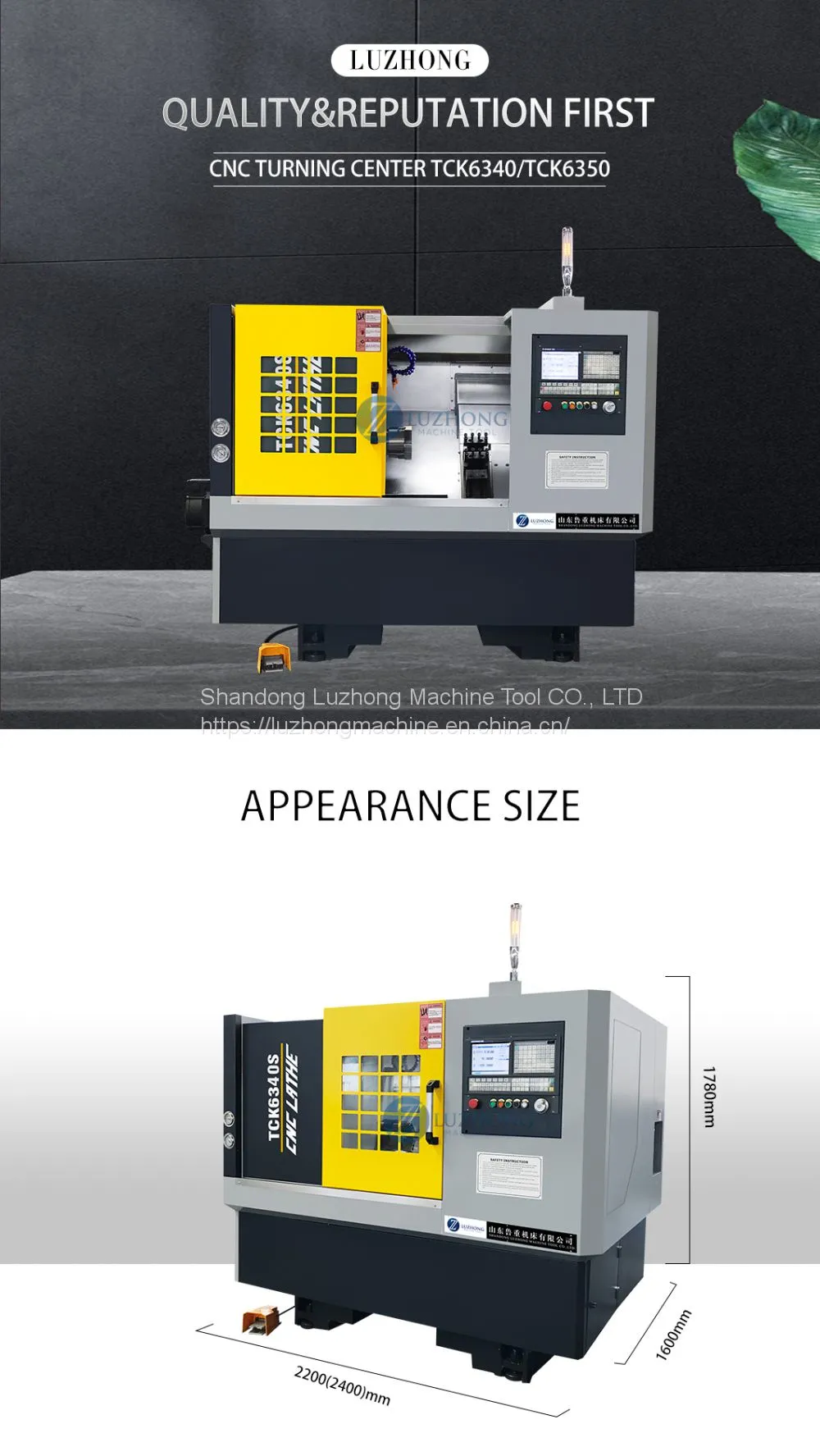

Machine dimension (L*W*H) |
mm |
2300*1500*1750 |
2550*1400*1710 |
N.W. |
KG |
2500 |
2900 |

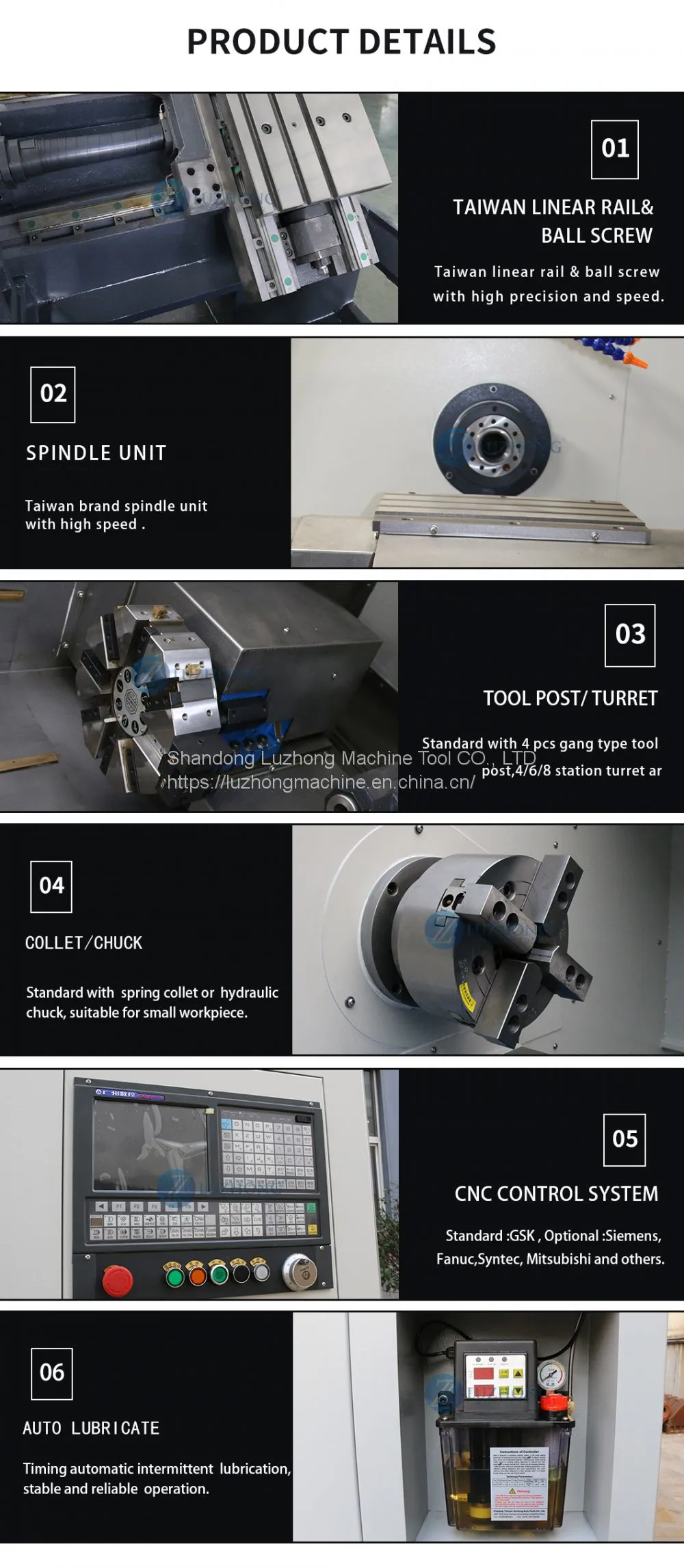

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
