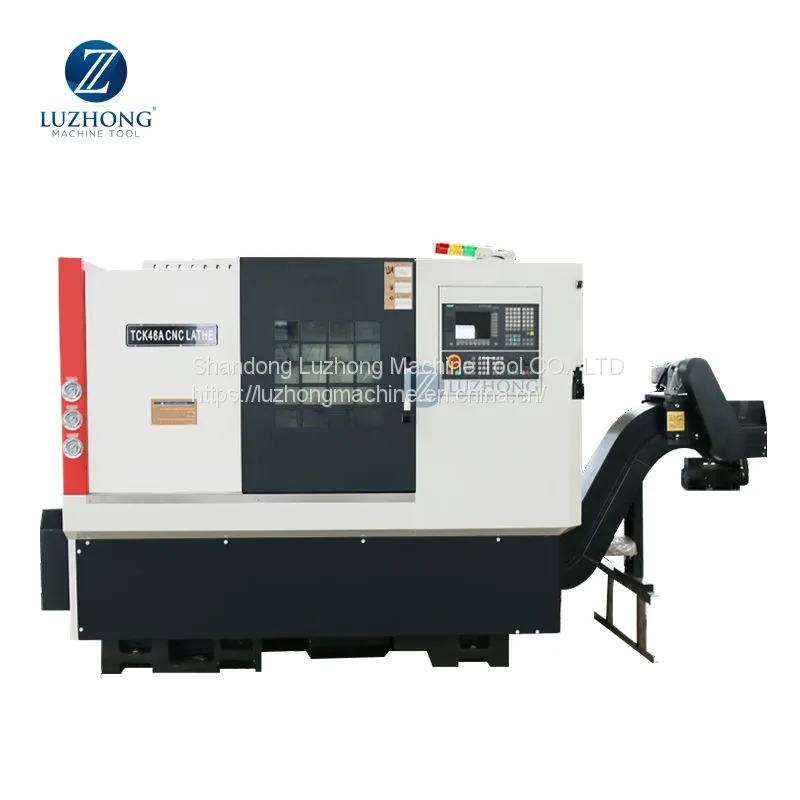

TCK66A Luzhong cnc precision turning lathe machine center
Product Description
45 degree slant bed
High rigidity cast iron
High accuracy Taiwan linear guide ways
Hydraulic chuck
Hydraulic tailstock
8 Station hydraulic turret
Product Parameters
SPECIFICATIONS |
Units |
TCK46A |
TCK50A |
TCK56A |
TCK66A |
Swing over bed |
mm |
460 |
500 |
560 |
660 |
Swing over cross slide |
mm |
170 |
260 |
360 |
400 |
Distance between centers |
mm |
350 |
350/500 |
500 |
600 |
Spindle bore |
mm |
56 |
66 |
65 |
85 |
Bar capacity |
mm |
45 |
45 |
45 |
75 |
Spindle nose type |
- |
A2-5 |
A2-6 |
A2-6 |
A2-8 |
Spindle speed steps |
- |
Stepless |
Stepless |
Stepless |
Stepless |
Spindle speed range |
rpm |
3500 |
3000 |
4200 |
2800 |
Turret/tool post |
- |
Hydraulic turret |
Hydraulic turret |
Hydraulic turret |
Hydraulic turret |
Tool size |
mm |
25 x 25 |
25 x 25 |
25 x 25 |
25 x 25 |
X axis travel |
mm |
240 |
240 |
200 |
280 |
Z axis travel |
mm |
400 |
400/540 |
560 |
600 |
X axis rapid traverse |
mm/min |
18000 |
18000 |
18000 |
18000 |
Z axis rapid traverse |
mm/min |
18000 |
18000 |
18000 |
18000 |
Main spindle motor |
kw |
5.5 |
7.5 (opt.11) |
11 |
11 |
Tailstock quill diameter |
mm |
70 |
70 |
74 |
100 |
Tailstock quill taper |
- |
MT5 |
MT5 |
MT5 |
MT5 |
Tailstock quill travel |
mm |
80 |
80 |
- |
- |
Tailstock travel |
mm |
200 |
200/450 |
450 |
650 |
Guide rail type |
- |
Slant bed linear rail |
Slant bed linear rail |
Slant bed linear rail |
Slant bed linear rail |
Machine weight |
kg |
2600 |
2900 |
4000 |
4800 |
Overall dimension |
mm |
2500x1700x1890 |
2500x1700x1890 2600x1850x2000 |
2650x1900x1900 |
3700x2000x2100 |

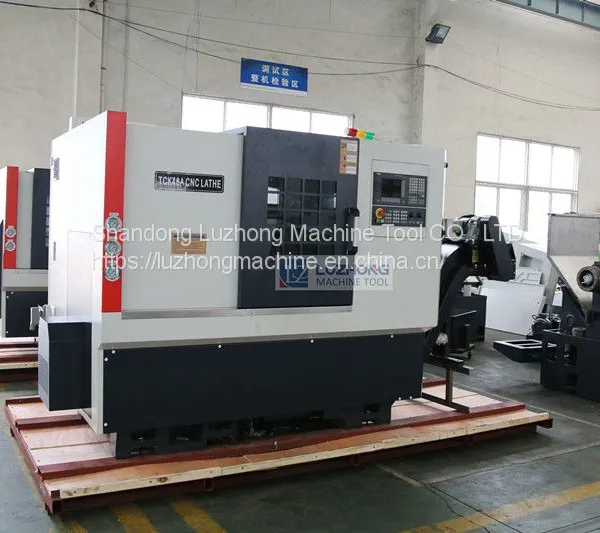

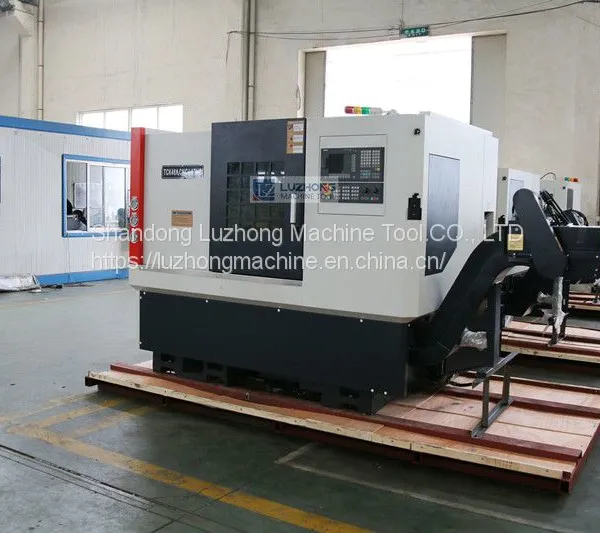

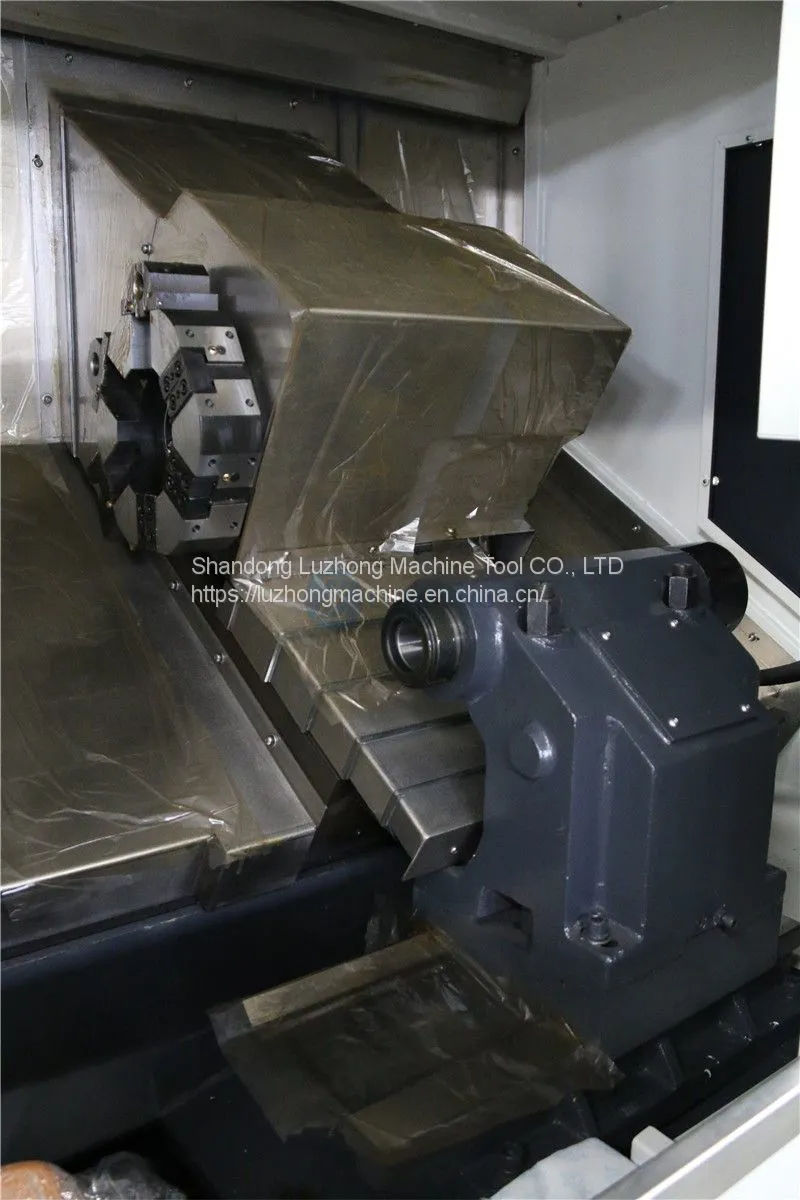

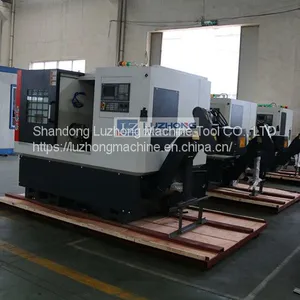

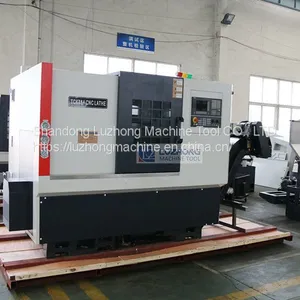

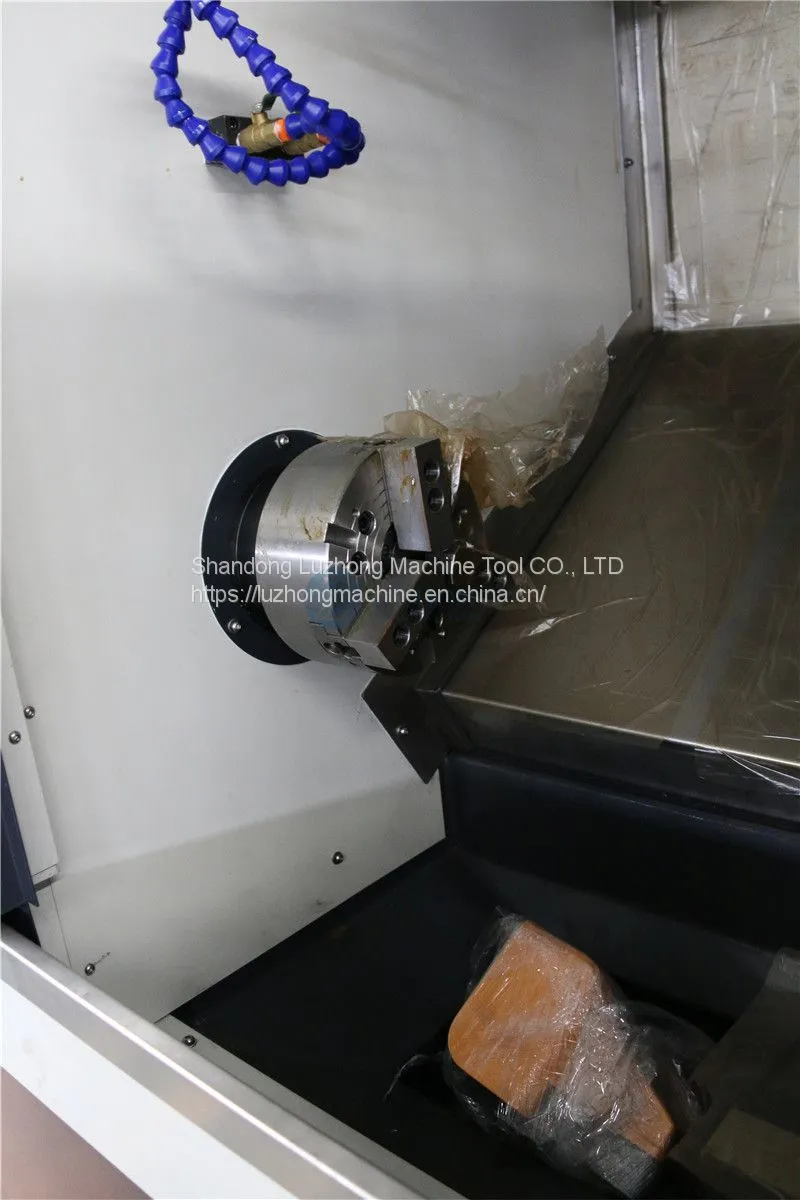

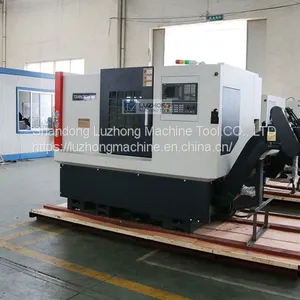

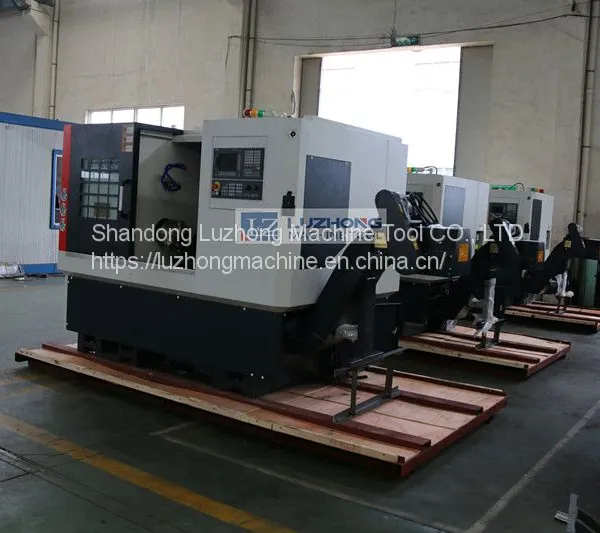

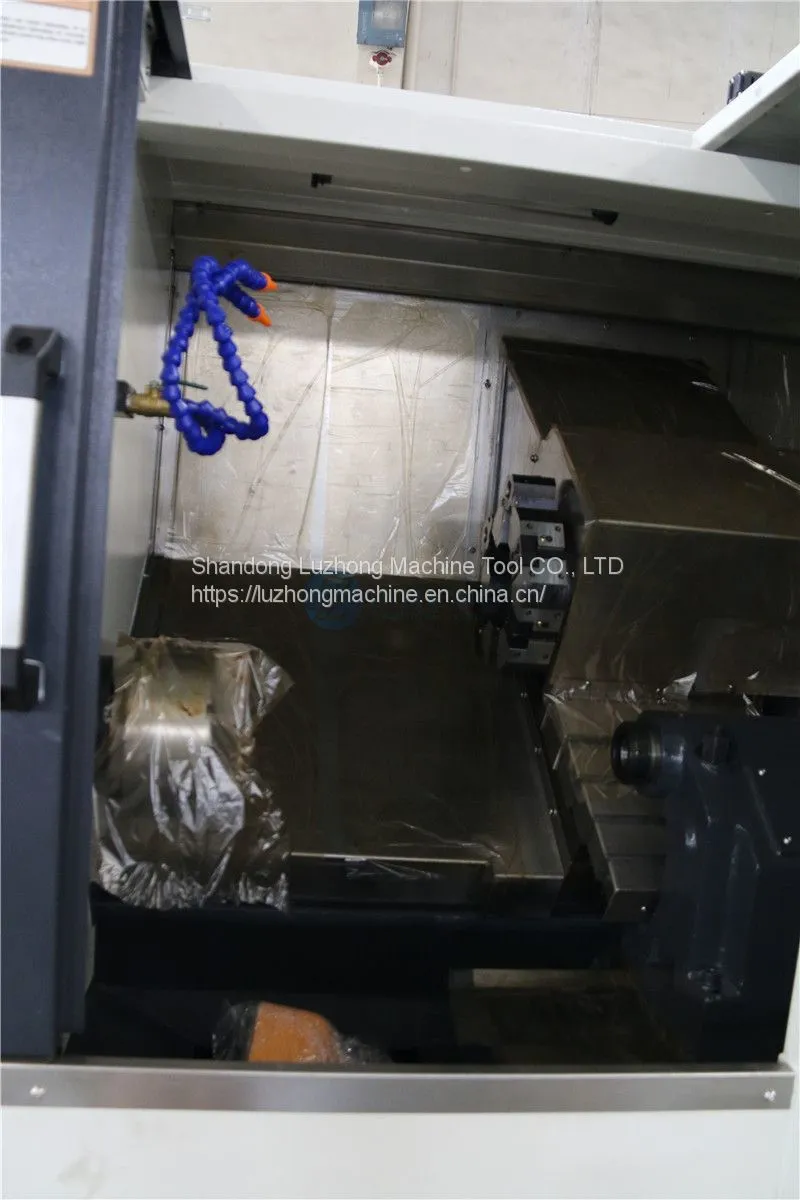

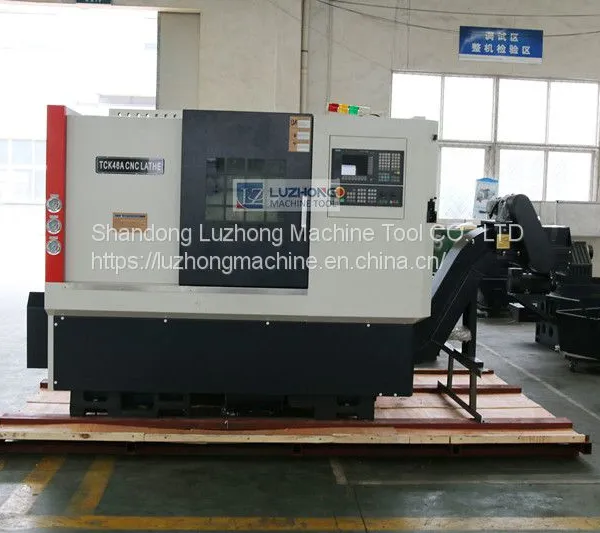

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
