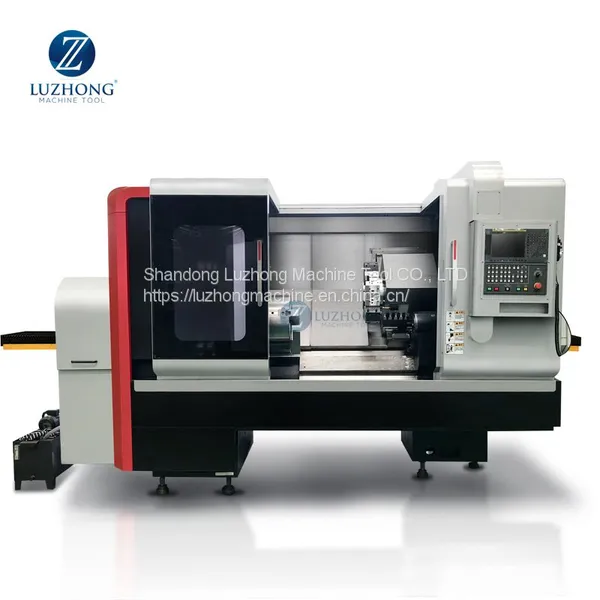

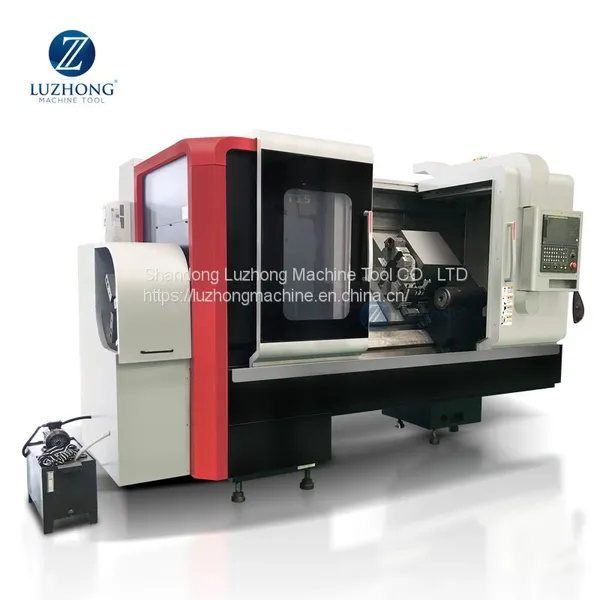

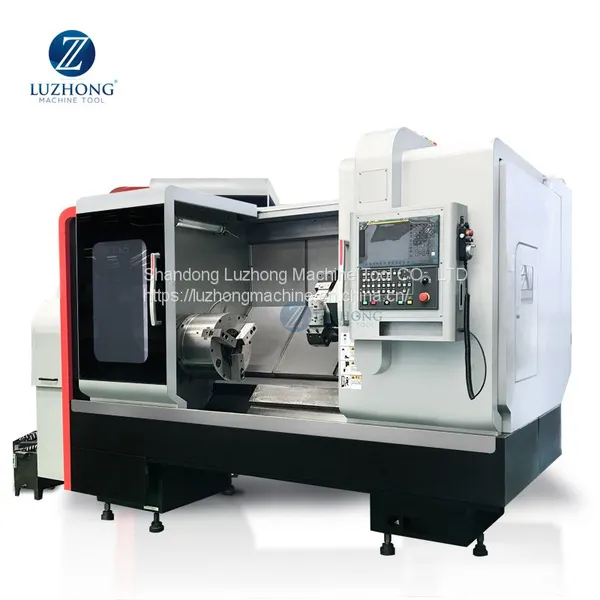

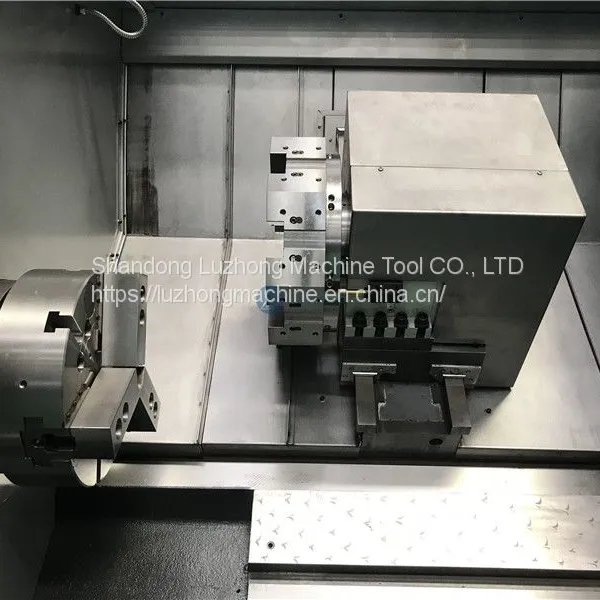

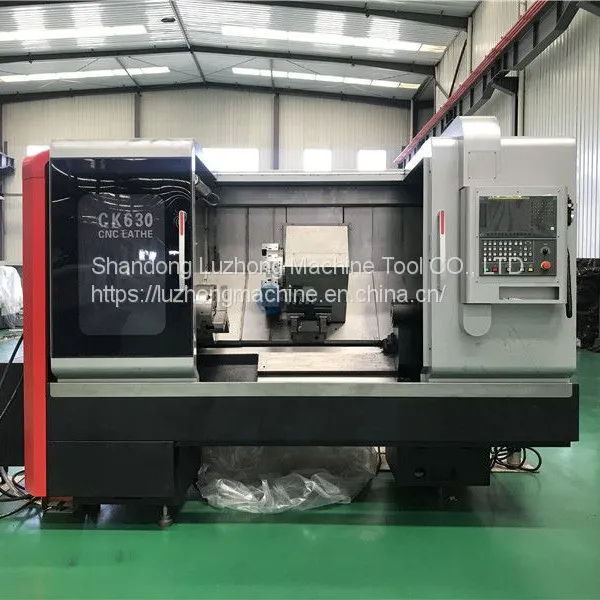

TCK500 Multi purpose High Speed Slant Bed Linear Rail lathe machine Heavy duty lathe
Product Description
CNC LATHE INTRODUCTION
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
◆One-piece bed adopts high strength iron to ensure rigidity and precision
◆Slant bed design and linear guideways enqure process speed and accuracy
◆Carriage and guide-way contact surface use Turcite B to maintain accuracy
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
Siemens controller, hydraulic turret, hydraulic chuck, hydraulic tailstock |
Fanuc or other brand CNC controller, power turret, tool setting arm |
Product Parameters
SPECIFICATIONS |
Units |
TCK500 |
TCK630 |
TCK800 |
|
Swing over bed |
mm |
500 |
630 |
800 |
|
Swing over cross slide |
mm |
380 |
440 |
650 |
|
Distance between centers |
mm |
500/1000/1500/ 2000/3000 |
1000/1500/2000/3000 |
1000/1500/2000/3000 |
|
Guideway width |
° |
45 |
45 |
45 |
|
Spindle bore |
mm |
82 |
105 |
105 |
|
Spindle speed steps |
- |
Stepless |
Stepless |
Stepless |
|
Spindle speed range |
rpm |
35-3000 |
150-1500 |
50-1500 |
|
Chuck |
in |
10’’ Hydraulic chuck |
15’’ Hydraulic chuck |
15’’ Hydraulic chuck |
|
Turret/tool post |
- |
Hydraulic turret 8position |
Hydraulic turret 8position |
Hydraulic turret 12position |
|
Tool shank size |
mm |
25 x 25 |
32 x 32 |
32 x 32 |
|
Boring tool holder size |
mm |
φ40 |
φ50 |
φ50 |
|
X axis travel |
mm |
300 |
335 |
400 |
|
Z axis travel |
mm |
500/1000/1500/ 2000/3000 |
1000/1500/2000/3000 |
1000/1500/2000/3000 |
|
X axis rapid traverse |
mm/min |
10000 Linear guideway |
4000 Hard |
10000 Linear |
10000 Linear guideway |
Z axis rapid traverse |
mm/min |
15000 Linear guideway |
6000 Hard |
15000 Linear |
15000 Linear guideway |
Tailstock quill diameter |
mm |
φ75 |
φ130 |
φ130 |
|
Tailstock quill taper |
- |
MT5 |
MT5 |
MT5 |
|
Tailstock quill travel |
mm |
150 |
150 |
150 |
|
Main spindle motor |
kw |
15 |
15 |
22 |
|
Coolant pump motor |
kw |
0.37 |
0.37 |
0.37 |
|
Weight for 500 |
kg |
6000 |
6500 |
7000 |
|
Weight for 1000 |
kg |
6500 |
7000 |
7500 |
|
Weight for 1500 |
kg |
7000 |
7500 |
8000 |
|
Weight for 2000 |
kg |
7500 |
8000 |
9000 |
|
Weight for 3000 |
kg |
8500 |
9000 |
9500 |
|

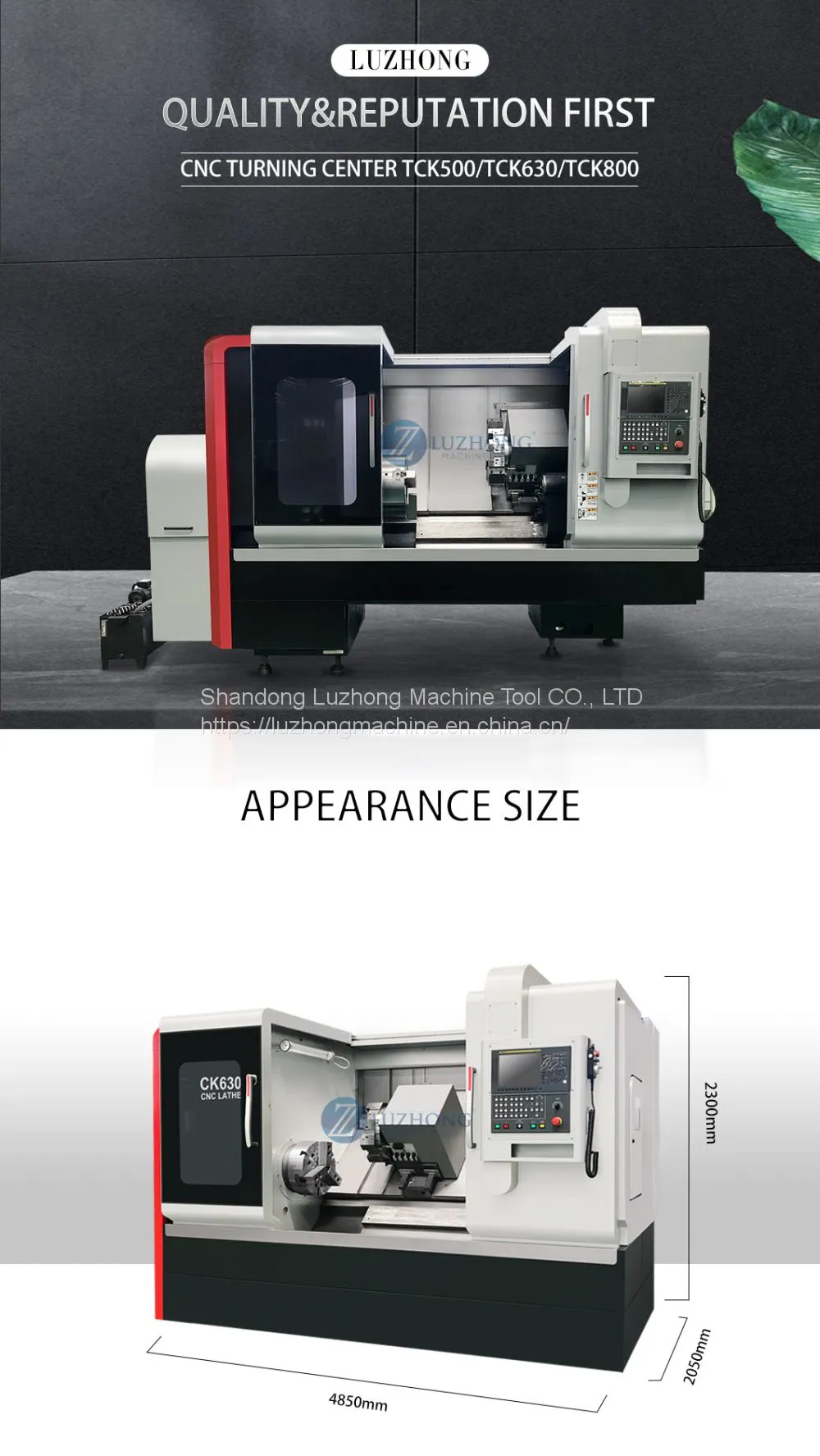

Dimension for 500 |
mm |
4350x1800x1800 |
- |
- |
|
Dimension for 1000 |
mm |
4850x1800x1800 |
4850x2050x2300 |
4850x2570x2400 |
|
Dimension for 1500 |
mm |
5350x1800x1800 |
5350x2050x2300 |
5350x2570x2400 |
|
Dimension for 2000 |
mm |
5850x1800x1800 |
5850x2050x2300 |
5850x2570x2400 |
|
Dimension for 3000 |
mm |
6850x1800x1800 |
6850x2050x2300 |
6850x2570x2400 |
|

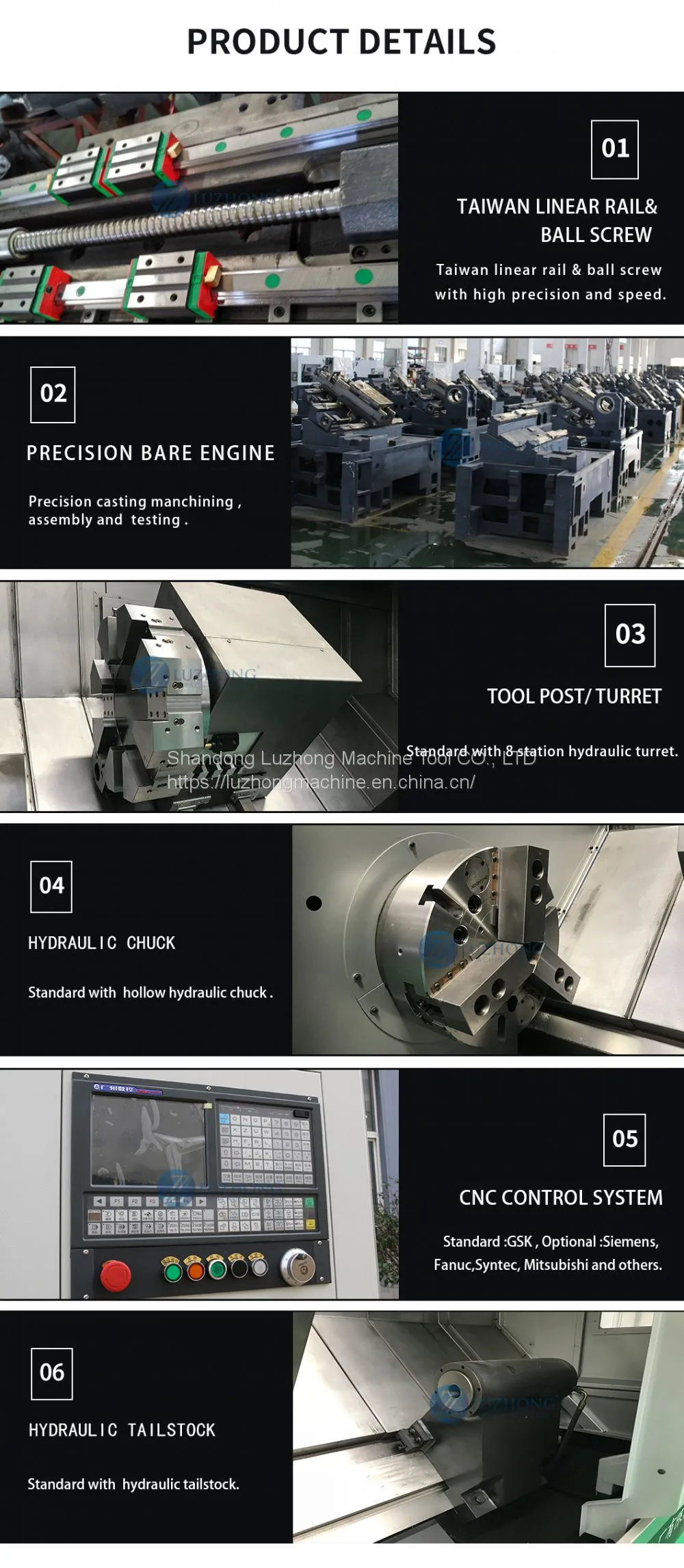

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
