Home > Products > CNC lathe machine > CK6150D High Precision Horizontal Metal Automatic Turning CNC Lathe Machin

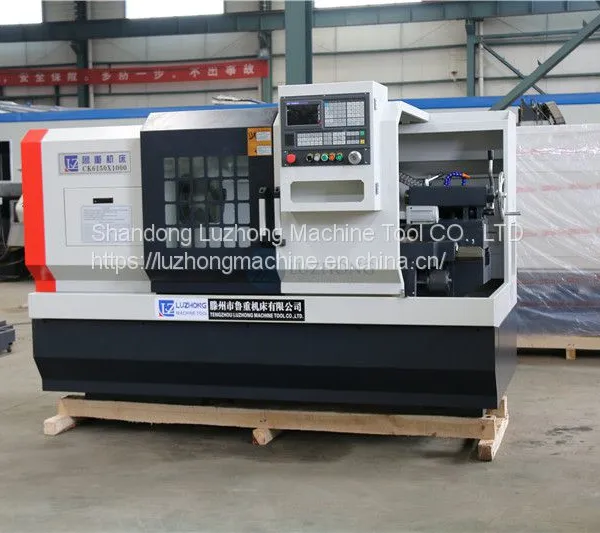

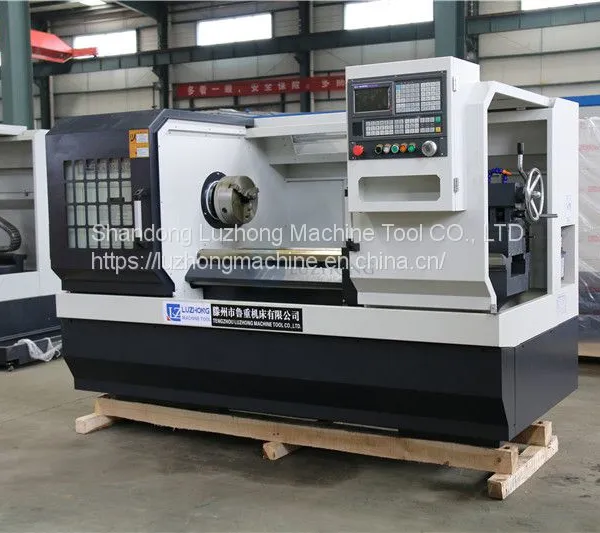

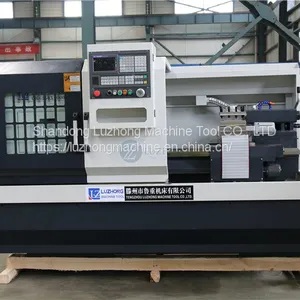

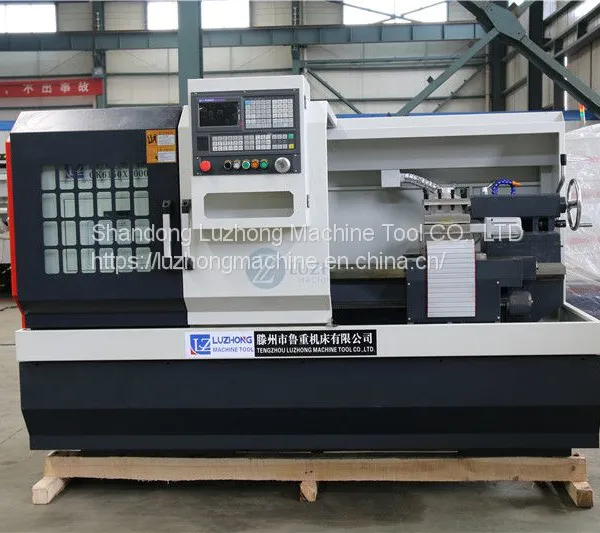

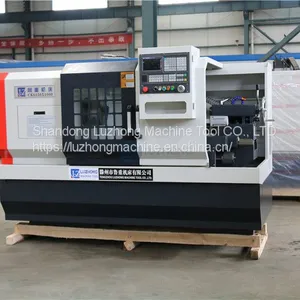

CK6150D High Precision Horizontal Metal Automatic Turning CNC Lathe Machin
- 1000 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 20 days
Product Details
Brand Name: | Luzhong | Place of Origin: | China | Model Number: | CK6150D |
Type: | Horizontal | Certification: | GS, CE, RoHS, ISO 9001 | Weight: | 1900KG |
Dimension(L*W*H): | 2200x1650x1750mm | Voltage: | Customized | Condition: | New |
Power(W): | 7.5KW | Automatic Grade: | Semi-Automatic | CNC or Not: | Normal |
Max. Swing Diameter: | 500mm |
Product Description
CK6150D High Precision Horizontal Metal Automatic Turning CNC Lathe Machin
Product Description
Product Parameters
SPECIFICATIONS | Units | CK6150D |
Swing over bed | mm | 500 |
Swing over cross slide | mm | 280 |
Distance between centers | mm | 750/1000/1500/2000 |
Spindle bore | mm | 52 |
Spindle bore taper | - | MT6 |
Spindle nose type | - | C6 |
Spindle speed steps | - | Manual 2 steps |
Spindle speed range | rpm | L:70-700 H:160-1600 |
Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 300 |
Z axis travel | mm | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |
Tailstock quill diameter | mm | 75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 140 |
Main spindle motor | kw | 7.5 |
Coolant pump motor | kw | 0.125 |
Weight for 750 | kg | 1900 |
Weight for 1000 | kg | 2000 |
Weight for 1500 | kg | 2200 |
Weight for 2000 | kg | 2400 |

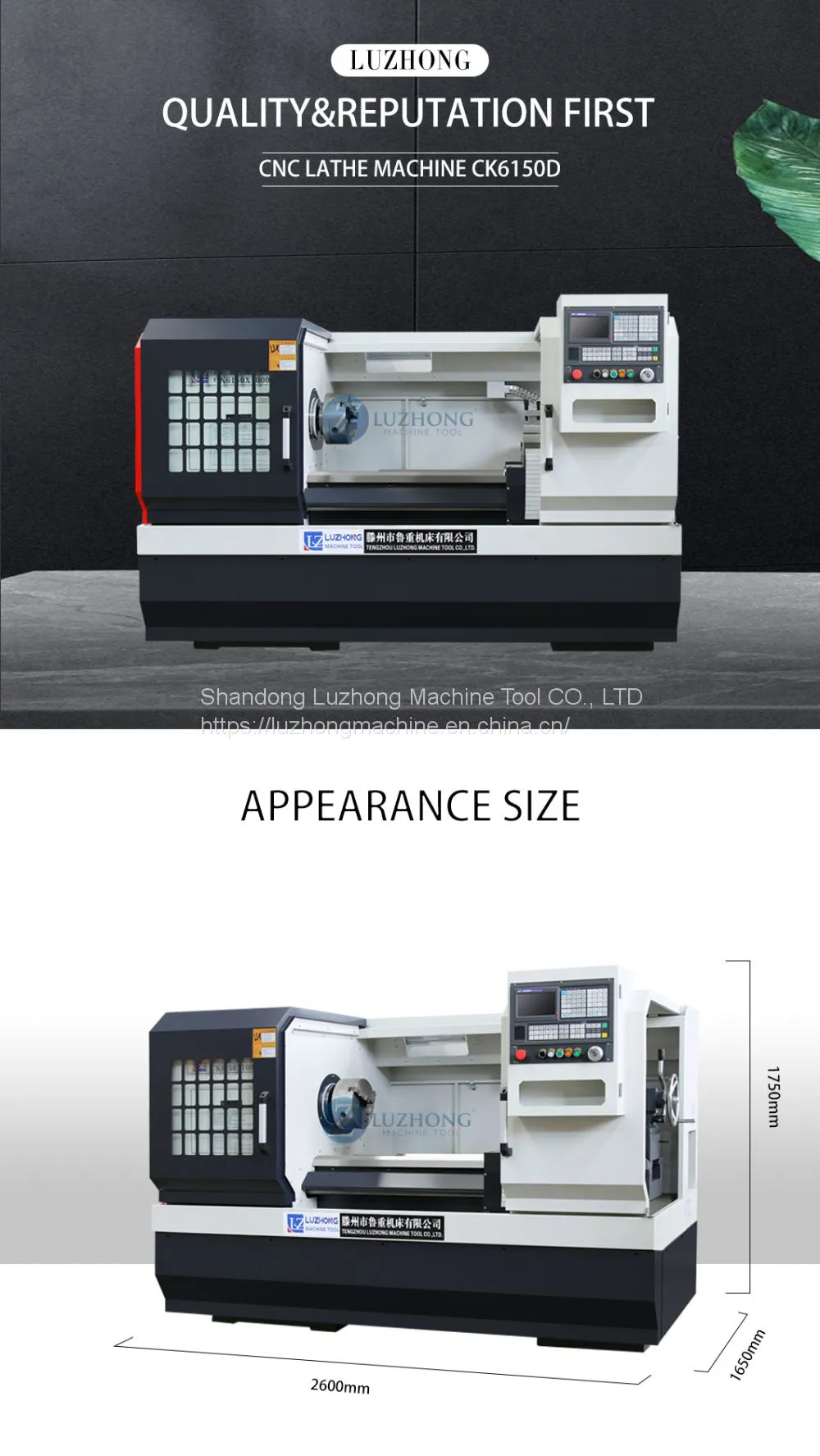

Dimension for 750 | mm | 2200x1650x1750 |
Dimension for 1000 | mm | 2500x1650x1750 |
Dimension for 1500 | mm | 3000x1650x1750 |
Dimension for 2000 | mm | 3500x1650x1750 |

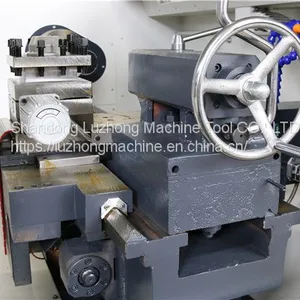

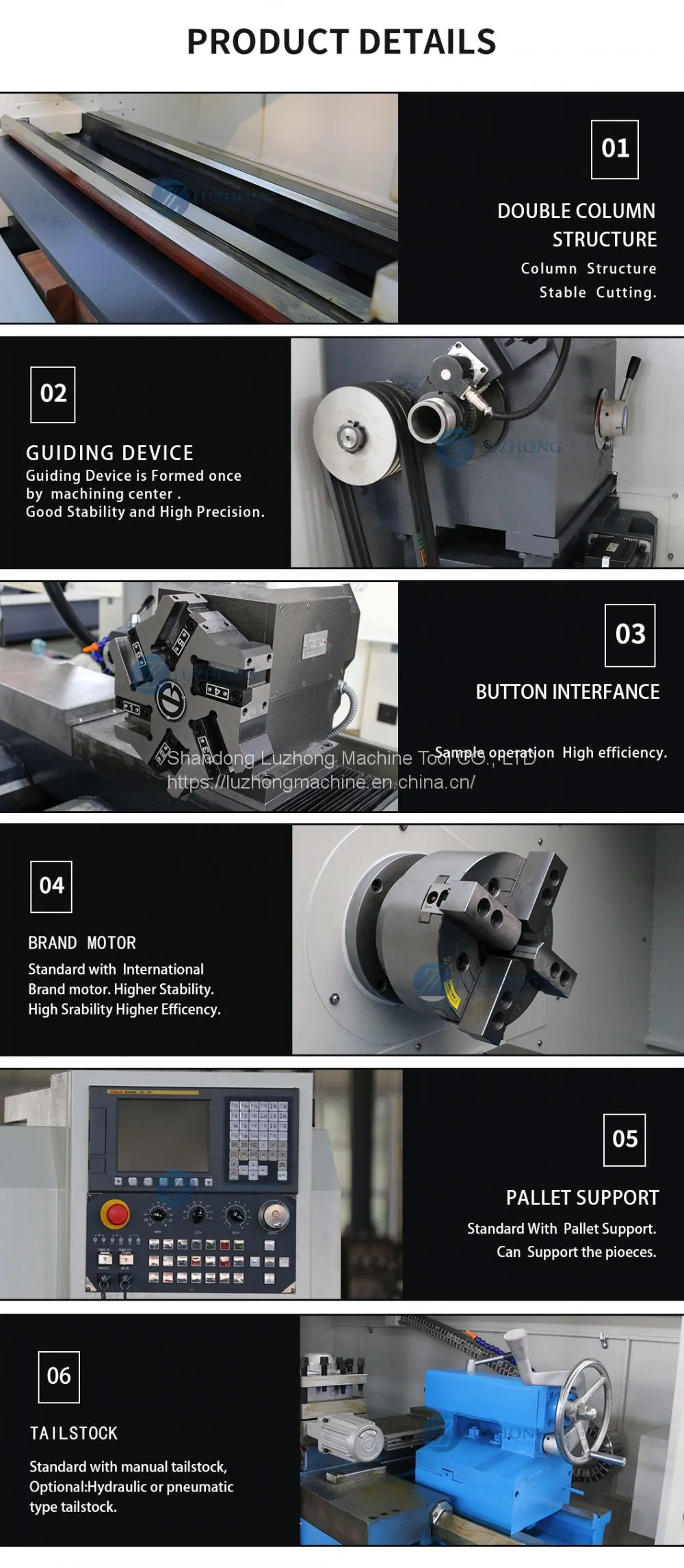

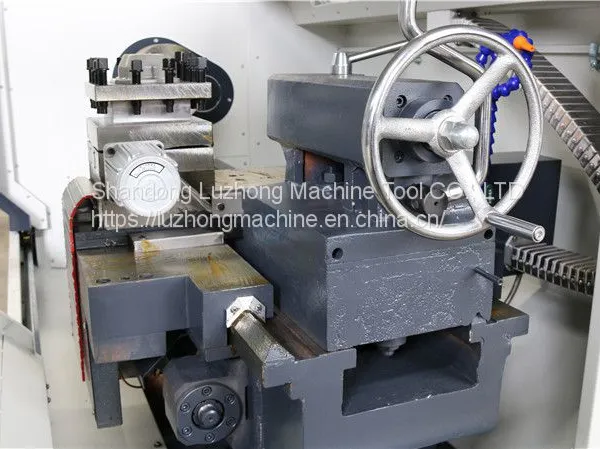

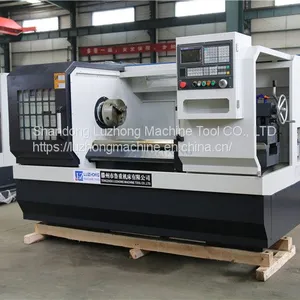

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
