KS-CX9800L Floor Type Full Spectrum Direct Reading Metal Spectrometer for Metal Analysis
1.Application:
KS-CX9800L Floor Type Full Spectrum Direct Reading Spectrometer is the introduction of European
technology,using the second generation CCD spectroscope technology which is international recognized.
It is provides the ideal performance and fit for product assurance testing and material identification.
It is most suitable instruments for the determination of various elements in different matrices.
In steel, raw iron, cast iron, non-ferrous metal production a fully or even partially automated analysis
results in a cost reduction. It is a preferred choice for the analysis of the elements concentration in metal.
2.Technical Specifications:
Model |
KS-CX9800L |
Optical System | |
Optical Structure |
The Full Spectrum Of Vacuum Type Optical System Structure Paschen Runge |
Light Room Temperature |
Automatic Temperature Control |
Wavelength Range |
160 nm ~ 800 nm |
Grating Focal Length |
350 mm |
Gating Ruling |
3600 l/mm |
|
Class 1 Spectral Line Dispersion Rate |
1.2 nm/mm |
Detector |
A Plurality Of High Performance Linear CCD |
The Average Resolution |
10 pm/pixel |
Excitation Table | |
Gaseous Fluid |
Argon Flushed |
Argon Flow |
Excited State: 3-5L/min; Standlly State: No Stand By Flow |
Electrode |
Tungsten Electrode Material Injection Technology |
Purge |
Click On The Self Purging Function |
Compensate |
Thermal Deformation Compensation Design |
Analytical Gap |
The Sample Table Analytical Gap: 4 mm |
| More Detailed Technical Parameter, Please Contact Me Directly. | |

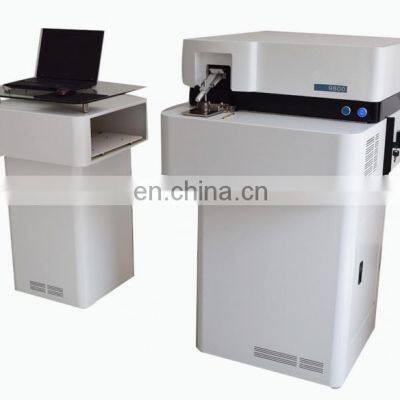

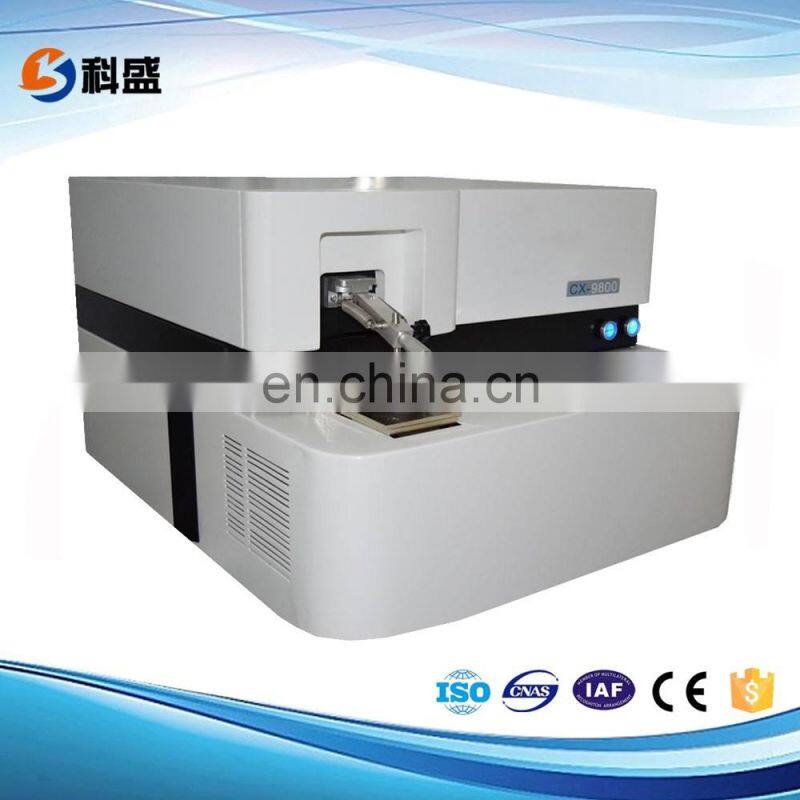

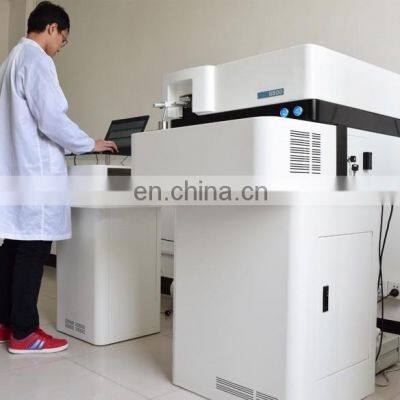

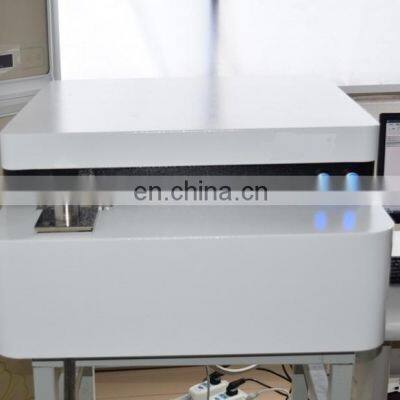

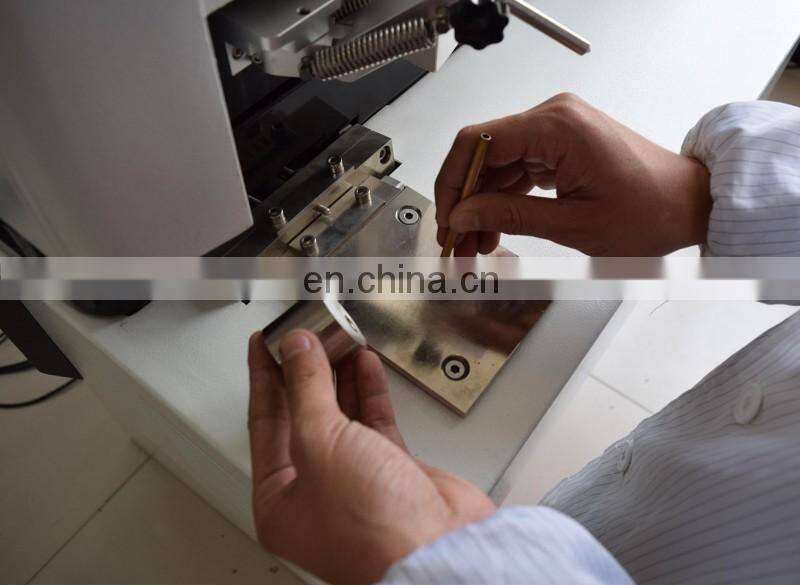

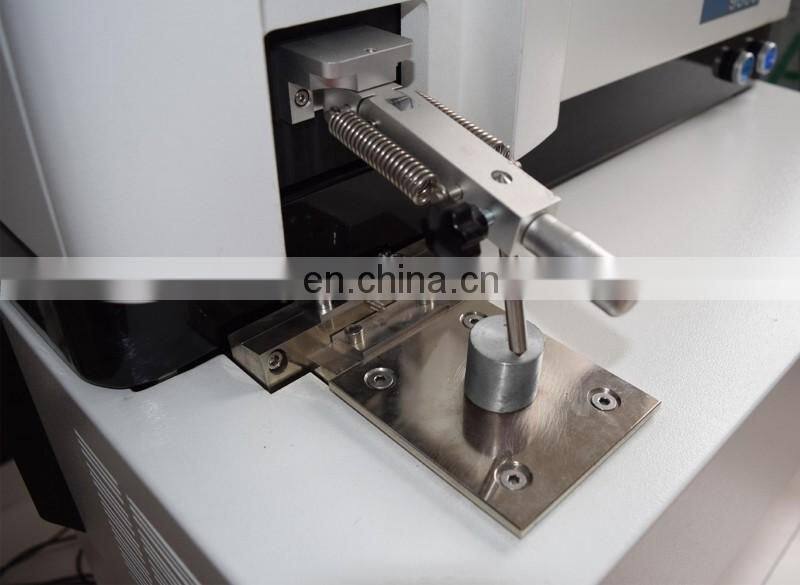

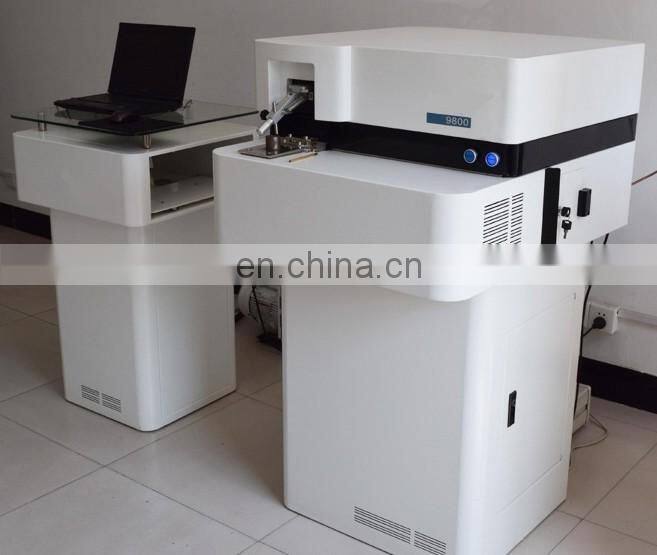

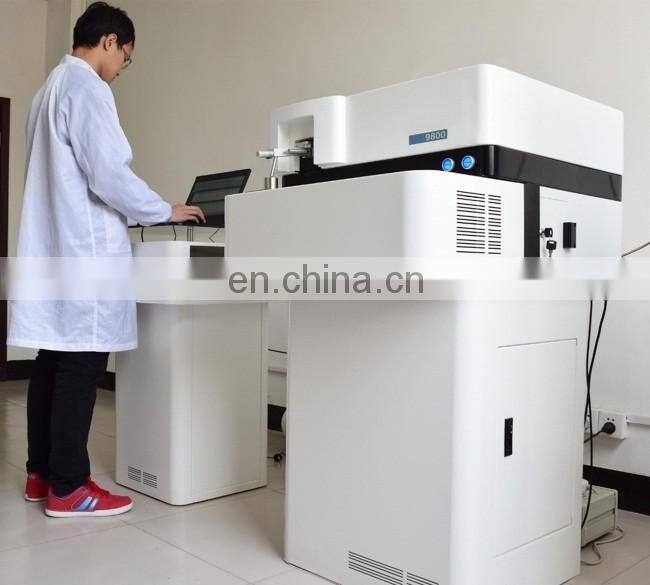

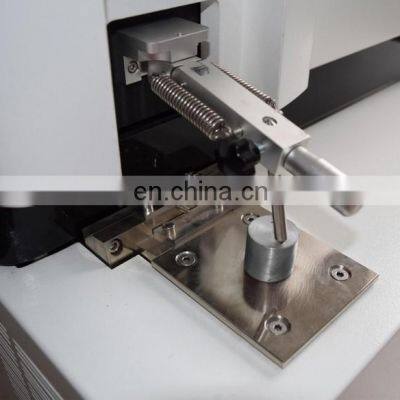

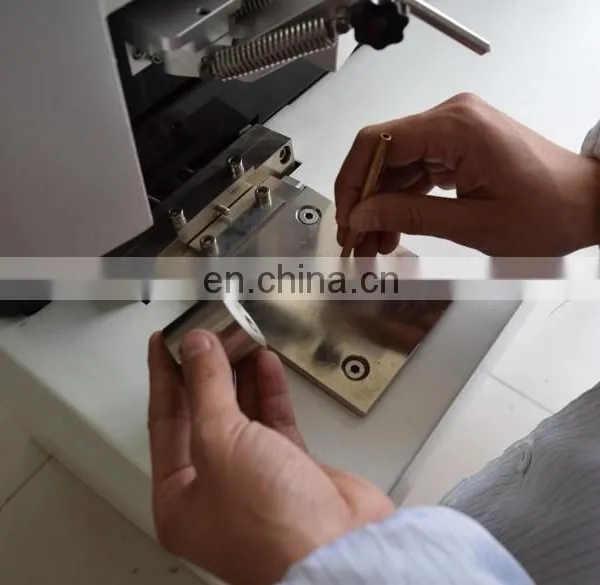

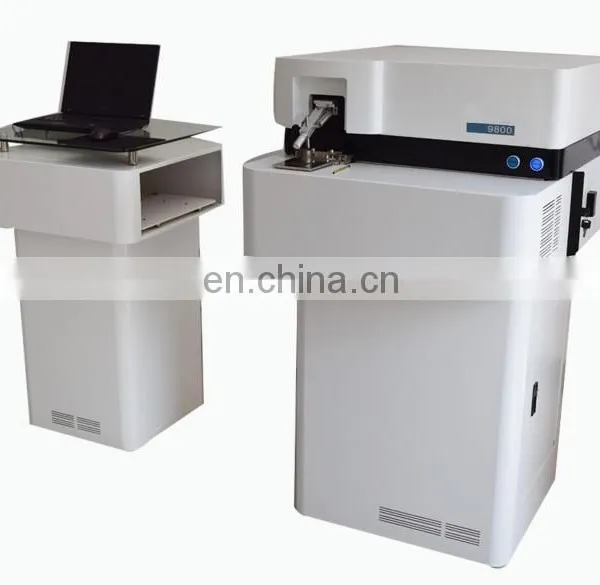

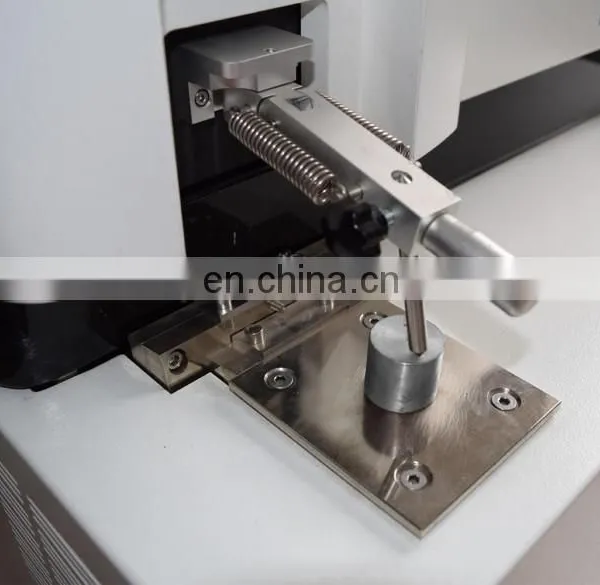

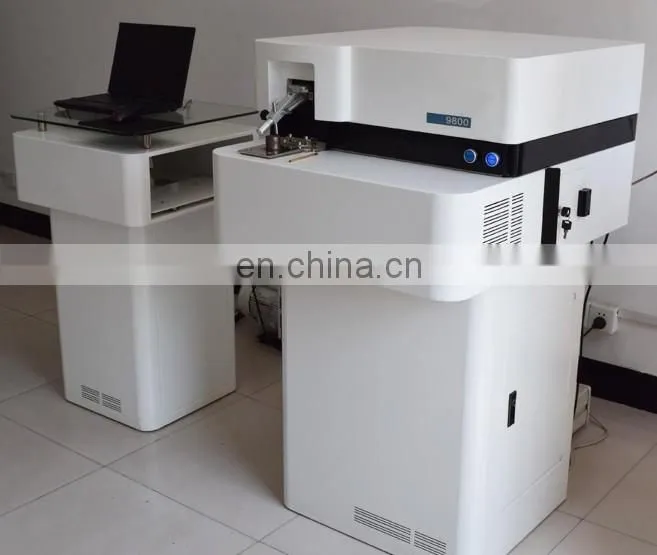

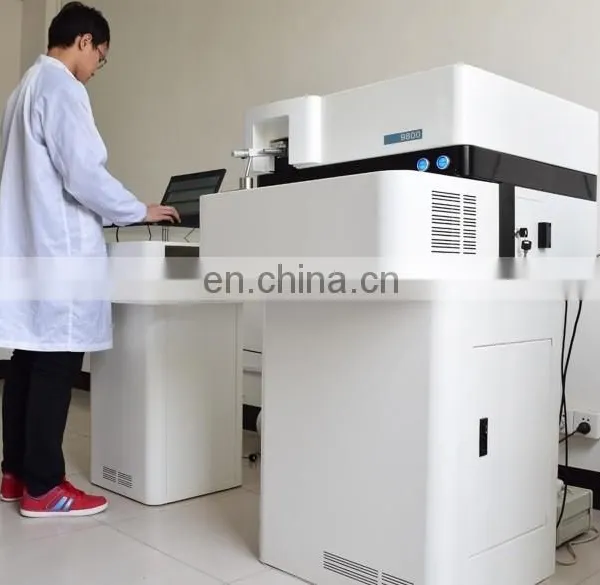

3.The Realistic Pictures
