4XC Binocular or Trinocular Inverted Metallurgical Microscope with artificial contrast analysis
1. Application:
MODEL 4XC METALLOGRAPHIC MICROSCOPE is mainly used for metal identification and analysis of the internal structure of organizations. It is the important device which can be used to study the metallography of metal, and it is also the key instrument to verify the product quality in industrial application. This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. specifications:
Three eyepiece tube | Tilting angle: 30° Adjustable range: 55-75mm |

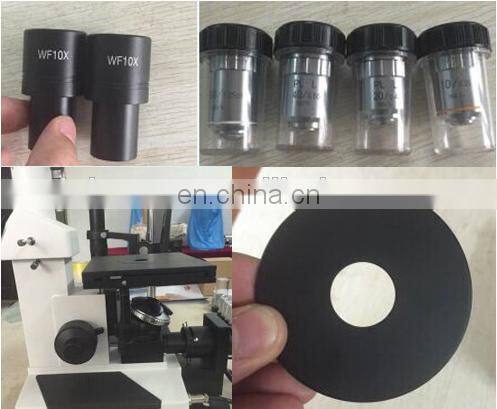

Eyepiece | Wide view eyepiece 10X (16mm) |
Objective lens | Flat fielding achromatic objective lens10X, 25X, 40X, 100X (oil) |
Loading table | 150 x 200mm |
Moving range | vertical 15mm, horizontal 15mm |
Objective lens (optional) | 60X, 80X |
Eyepiece (optional) | 12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |

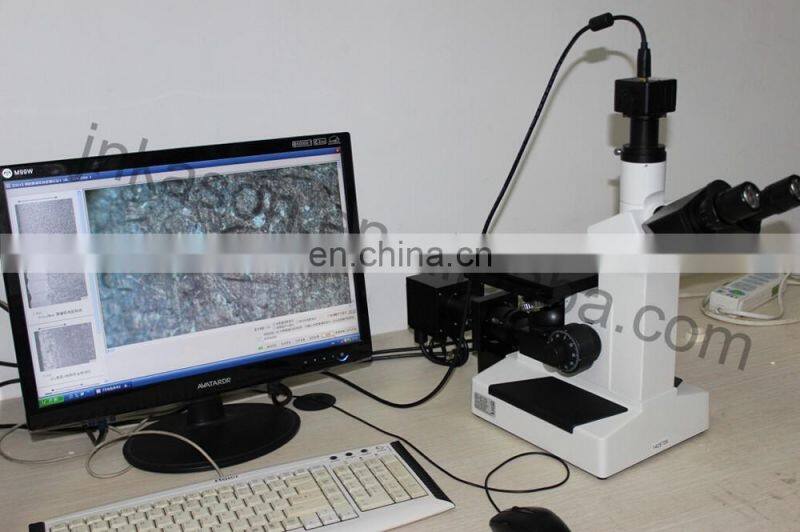

Photographic device (optional) | 1. Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens |
