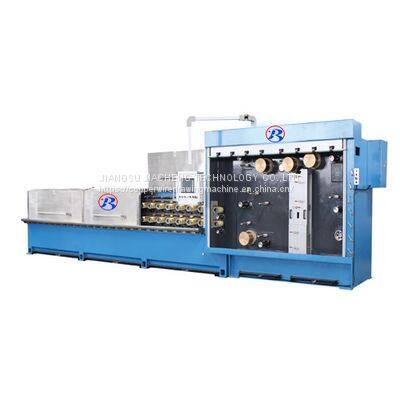

Fully Automatic Multi Wire Drawing Machine for 2wire, 4 Wires, 8 Wires, 16 Wires
US$ 23000 - 24000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Usage:
Drawing
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
40 days
Related Products
-
High Quality Intermediate Copper Wire Drawing MachineUS$ 20000 - 30000MOQ: 1 Set -
China High Speed Copper Rod Breakdown Machine With AnnealingUS$ 20000 - 30000MOQ: 1 Set
-
How to Choose Cable Stranding MachineUS$ 30000 - 50000MOQ: 1 Set
-
High Speed Electric Wire and Cable Making MachineUS$ 30000 - 35000MOQ: 1 Set
-
Multi Wire Drawing MachineNegotiableMOQ: 1 Piece
Place of Origin
China
Usage
Drawing
Multi Wire Drawing Machine for 16 Copper Wires
This type copper wire drawing machine is used to draw and anneal 16 copper wire one time, take 8 wires in each spool and can twist the wire directly in next step, it apply advanced technology design.
MACHINE DETAILS:
No. |
Name |
Data |
|
1 |
Inlet diameter |
16×Φ1.8-Φ2.6 |
mm |
2 |
Outlet diameter |
16×Φ0.45-Φ0.92 |
mm |
3 |
Max. Drawing times |
21 |
times |
4 |
Die size |
Φ25*12 |
mm |
5 |
Ductility |
1~14 dies 1.26 15~20 dies 1.205 |
|
6 |
Max drawing speed |
25 |
m/s |
7 |
Main motor power |
250 |
KW |
8 |
Fix speed motor power |
75 |
KW |
9 |
Gear pump motor power |
4 |
KW |
10 |
Drawing capstan diameter |
Φ100 |
mm |
11 |
Drawing oil |
45 |
M³/h |
12 |
Pressure for cooling water |
≥0.2 |
Mpa |
