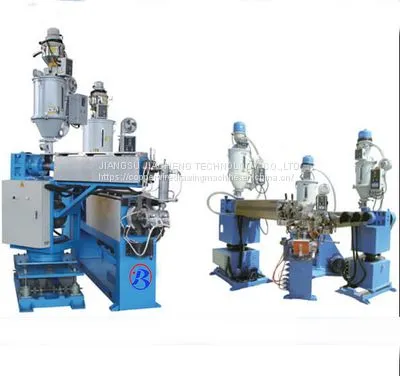

Power Cable Making Extruder
Application:
It is used for the insulation and sheath of cable with PVC,PE,NYLON etc.
Main specification:
Type |
Screw Parameters |
Power |
Haul-off Unit |
||||||
Dia.(mm) |
L/D Ratio |
Rotate Speed (r/min) |
Extrusion Capacity kg/h |
Main Motor Power (kw) |
Finished Wire Dia.(mm) |
Front caterpillar haul-off |
back caterpillar haul-off |
Line Speed (m/min) |
|
JC-90 Extrusion |
Φ90 |
25:1 |
90 |
280 |
90 |
4-45 |
500 |
1250 |
10-150 |
JC-100 Extrusion |
Φ100 |
25:1 |
85 |
330 |
110 |
5-60 |
800 |
1600 |
10-120 |
JC-120 Extrusion |
Φ120 |
25:1 |
80 |
420 |
132 |
8-80 |
1250 |
2000 |
10-90 |
JC-150 Extrusion |
Φ150 |
25:1 |
70 |
780 |
160 |
15-120 |
2000 |
2500 |
10-60 |
JC-200 Extrusion |
Φ200 |
25:1 |
60 |
1000 |
250 |
35-145 |
2500 |
3150 |
2-60 |
Feature:
1-This power cable making extruder with precise design of the screw, durable, non-mucus not take off chrome, change color quickly.
2-The concentricity of wire is more than 90%.
3-PLC+Touch screen control system
