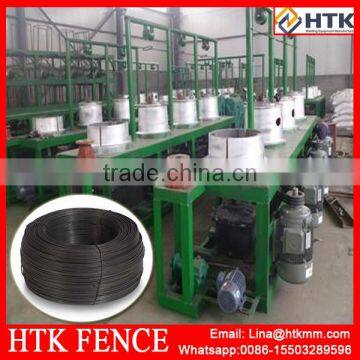

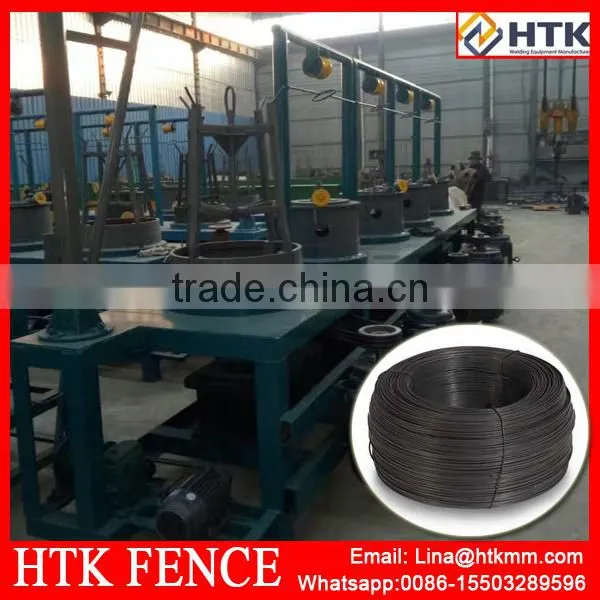

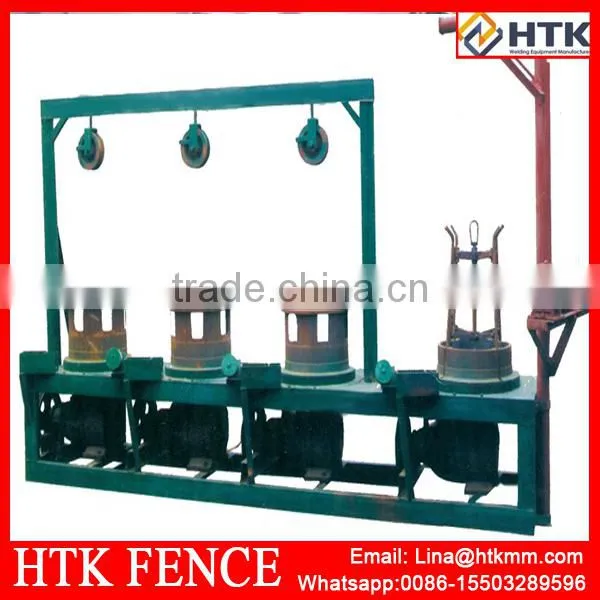

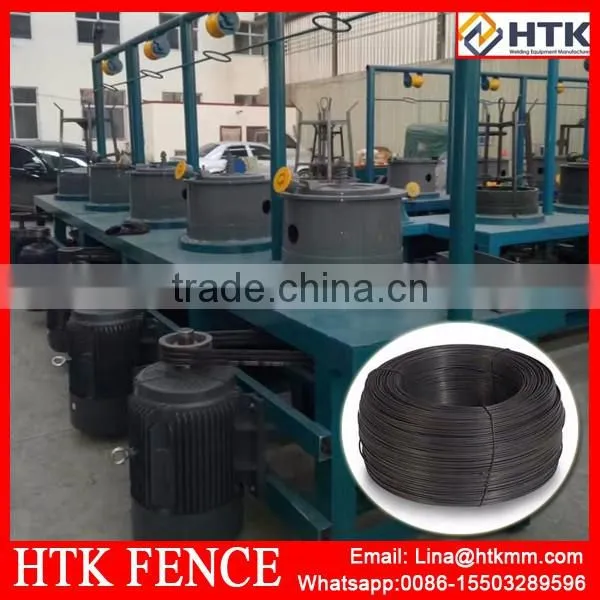

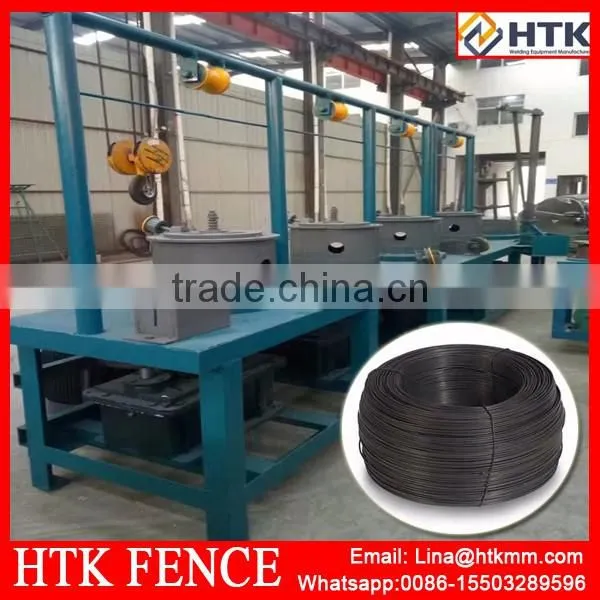

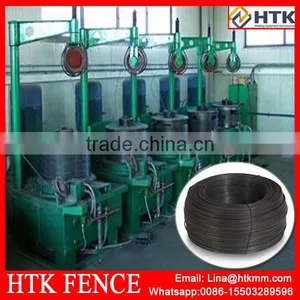

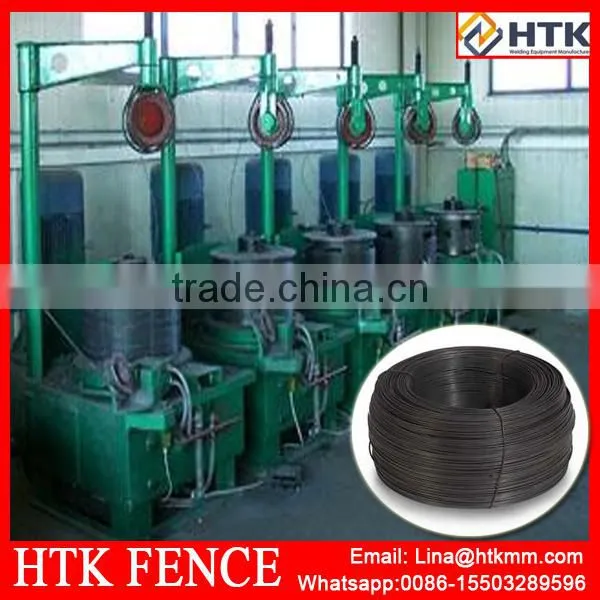

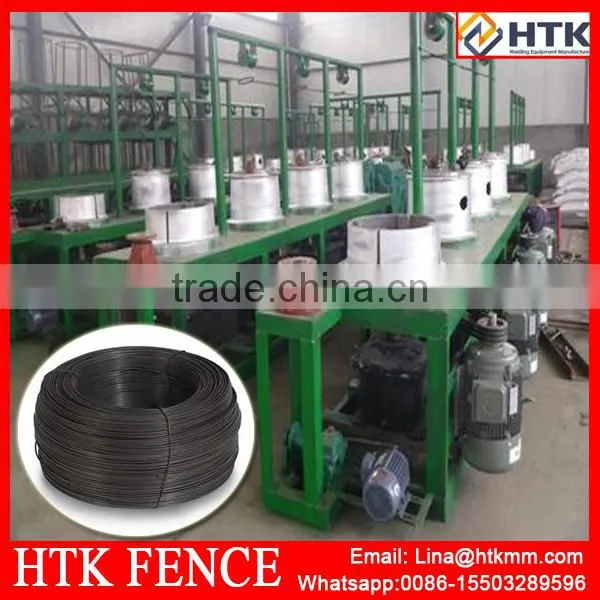

Multi Wire Drawing Machine
Straight Line Wire Drawing Machine
Wire drawing Machine are capable of drawing rod wires of high-,medium-,low-carbon steel, copper, aluminium, ect.and appliable to manufacturing industries such as wood screw, nail, conducting wire rope for electrician use, spring,etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in efficiency. The operation is simple and convenient.
Technical Parameters:
ITEM |
UNIT |
8/80 |
10/560 |
10/550 |
10/450 |
Capstan dia |
mm |
600 |
560 |
550 |
450 |
Material strenght |
Mpa |
1150 |
1150 |
900 |
1300 |
Max incoming dia |
mm |
8-6 |
6.5 |
6.5 |
3.6 |
Min outgoing dia |
mm |
3-2 |
1.8 |
1.8 |
1.1 |
Total compressibility |
% |
85 |
92.33 |
92.33 |
90.7 |
Max average compressibility |
% |
25 |
25 |
25 |
21 |
Max line speed |
m/min |
300 |
400 |
400 |
400 |
Single motor power |
kw |
37-30 |
30-18.5 |
22-15 |
18.5-7.5 |
weight |
kg |
3000 |
2500 |
2200 |
2000 |
Domenions |
mm |
2000*1200*2600 |
1700*1100*2400 |
1520*820*2300 |
1520*820*2200 |
Fence Machine |
Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine |
Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine |
Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine |
Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine |
Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines |
grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
Payment: 30%TT in advance and pay off the balance against the copy of B/L.
MOQ: 1 Set.
Welcome to visit 15 years old factory!!!
