Multi Wire Drawing Machine LZ9-600

Multi Wire Drawing Machine LZ9-600 thumbnail-1
Multi Wire Drawing Machine LZ9-600 thumbnail-2
Multi Wire Drawing Machine LZ9-600 thumbnail-3
Multi Wire Drawing Machine LZ9-600 photo-1
Multi Wire Drawing Machine LZ9-600 photo-2
Multi Wire Drawing Machine LZ9-600 photo-3
US$ 30,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name WANYI Machine
Model Number LZ9-600
Voltage 380/220V
Power(W) 9X22KW
Dimension(L*W*H) 8000X1560X1500MM
Weight 9000KG
Certification third parts
Warranty one year freely
After-sales Service Provided Engineers available to service machinery overseas

Rough drawing LZ9/600 drawing machine

1 Machine included:

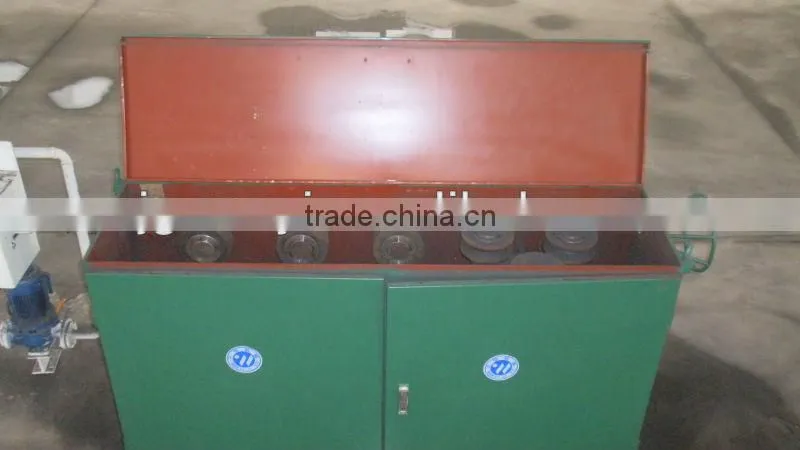

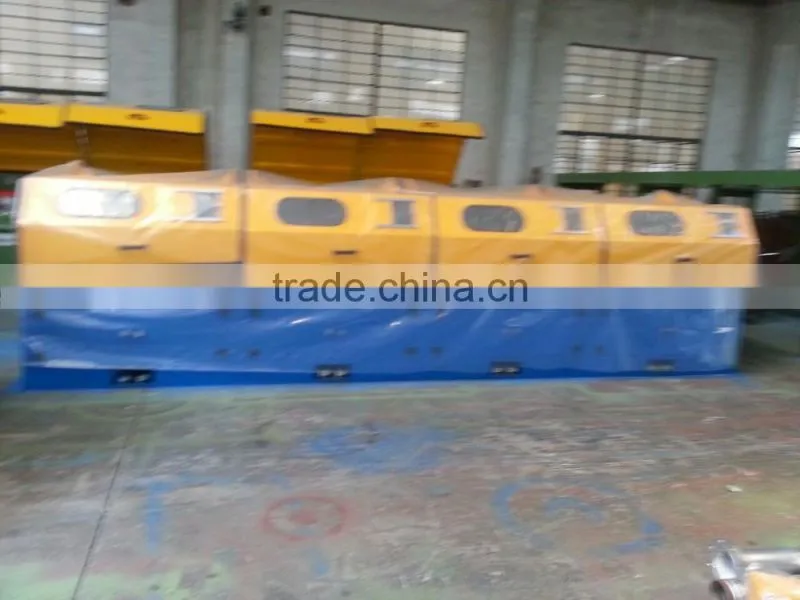

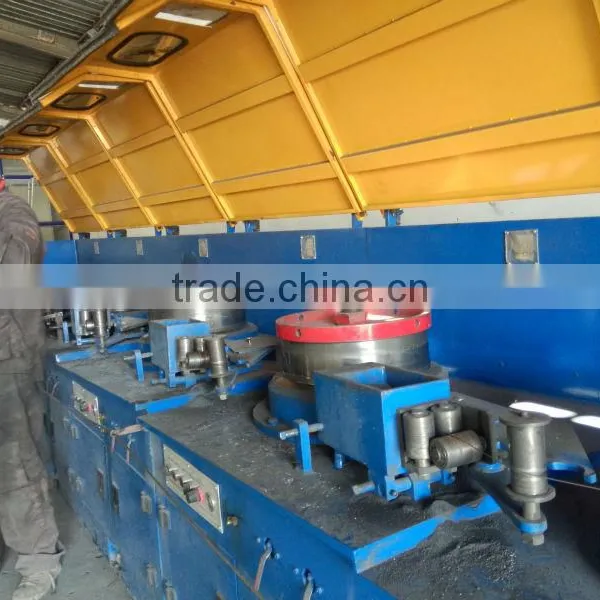

(1) LZ9/600 straight line drawing machine

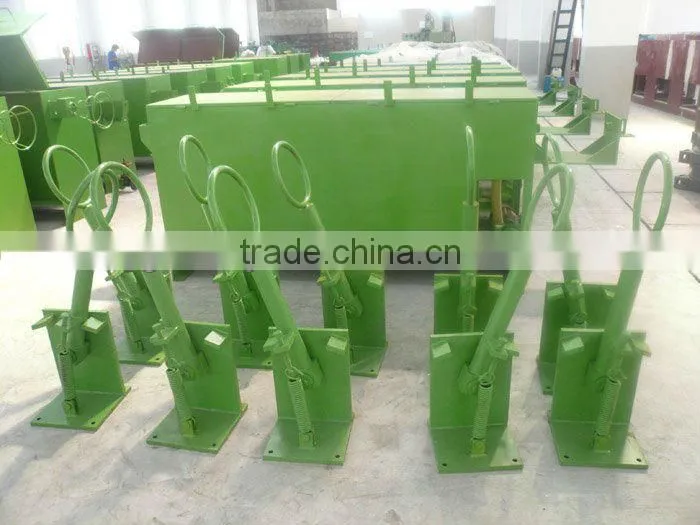

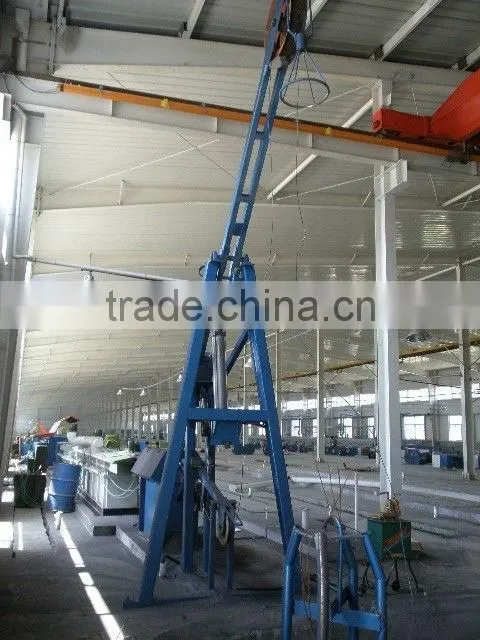

(2) tensile rack devices

(3) 800 spool (h-wheel)take-up machine or trunk type take up machine

(4) with human-machine interface touch screen control work station

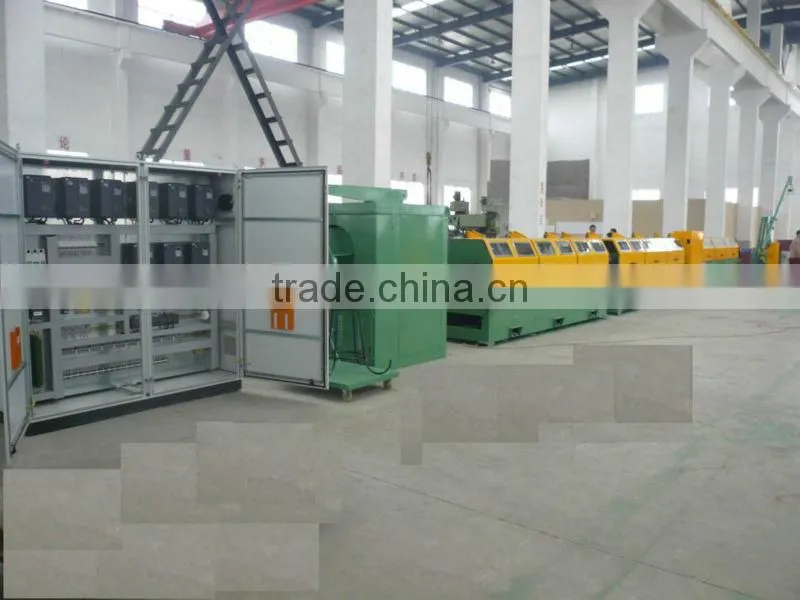

(5) complete electrical control cabinet

2main technical parameters and points:

(1) biggest inlet strength: 450MPa or less

(2) biggest inlet diameter:  5.5 mm

(3) the outlet diameter 1.5mm

(4) max compression ratio: 92.5%

(5)the highest drawing speed 8-10m/s, normal speed: 6m/s

(6) water and water pressure: 8 m³/h water pressure 0.25 Mpa or more

(7)air and pneumatic: 2.0 m³/h  Air pressure 0.6 Mpa or more multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600

multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600multi wire drawing machine LZ9-600

Specifications



1.Drawing unit using VVVF, PLC controlled

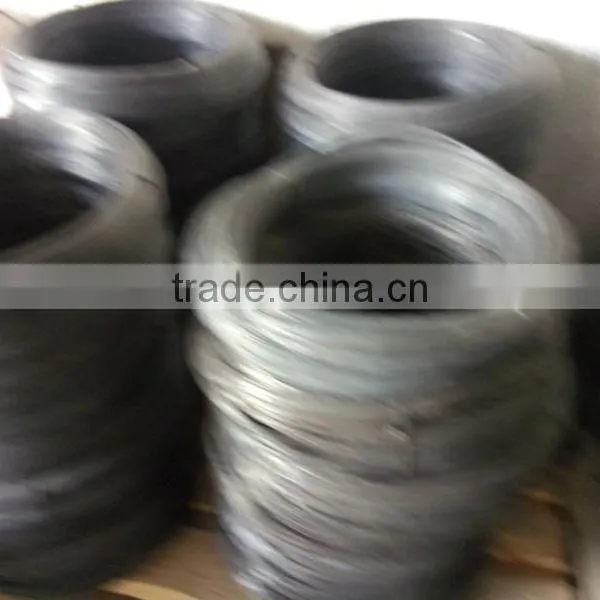

2. mainly for drawing high-carbon, low-carbon steel,copper wire



1.Drawing unit using VVVF, PLC controlled
2. mainly for drawing high-carbon, low-carbon steel



Model No.of drafts Max.inlet wire(mm) duction(mm) Motor power(kw) production speed





300

8-12

2.5

0.4

3-4.5

25m/s

350

8-12

3.5

0.6

5.5-11

25m/s

400

8-12

4.2

0.75

7.5-15

25m/s

450

8-12

4.5

0.96

15-22

18m/s

600

6-10

6.5

1.4

22-37

16m/s
