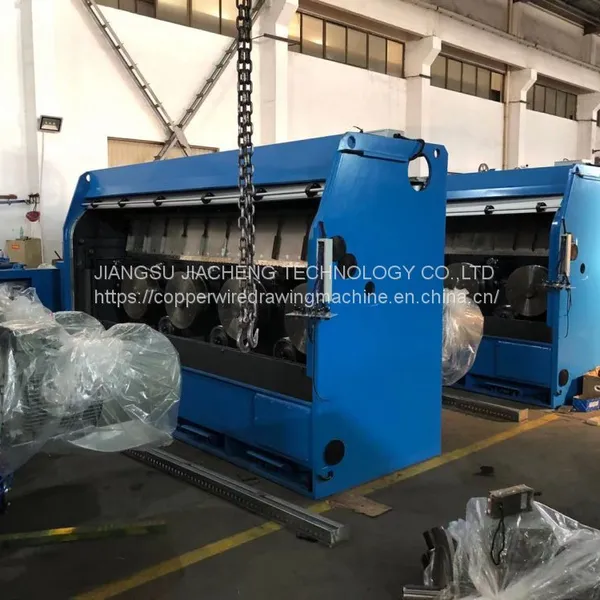

China High Speed Copper Rod Breakdown Machine With Annealing
US$ 20000 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Port of Shipment:
Shanghai
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
40 days
Related Products
-
Fully Automatic Multi Wire Drawing Machine for 2wire, 4 Wires, 8 Wires, 16 WiresUS$ 23000 - 24000MOQ: 1 Set -
High Quality Intermediate Copper Wire Drawing MachineUS$ 20000 - 30000MOQ: 1 Set
-
How to Choose Cable Stranding MachineUS$ 30000 - 50000MOQ: 1 Set
-
High Speed Electric Wire and Cable Making MachineUS$ 30000 - 35000MOQ: 1 Set
-
Copper Rod Breakdown MachineNegotiableMOQ: 1 Set
Copper Rod Breakdown Machine for 2 Wires
Usage:
This machine can draw both round wire and S shape wire, Z shape wire etc.
Especially suitable for carbon fiber cable, Aluminum Conductor Composite Core (ACCC conductor) and reinforced cable.
Machine details
Machine type |
LSD 450/13-2 |
LSD450/11-2 |
LSD459/9-2 |
|
Drawing capstan dia. (mm) |
450 |
450 |
450 |
|
Max. Die No. |
13 |
11 |
9 |
|
Inlet dia. (mm) |
Copper |
8 |
||
Al, Al alloy |
9.5 |
|||
Outlet dia. (mm) |
Copper |
1.2-4.2 |
1.5-4.2 |
2.0-4.2 |
Al, Al alloy |
1.7-5.0 |
2.2-5.0 |
2.8-5.0 |
|
Max. drawing speed (m/s) |
30 |
25 |
20 |
|
Single motor power (KW) |
37/55 (AC) |
|||
Capstan arrangement |
Horizontal type |
|||
Lubrication type |
Full immersion |
|||
Take-up type (optional) |
Double take-up/single take-up/orbital coiler |
|||
Optional equipment |
On-line horizontal annealer |
|||
