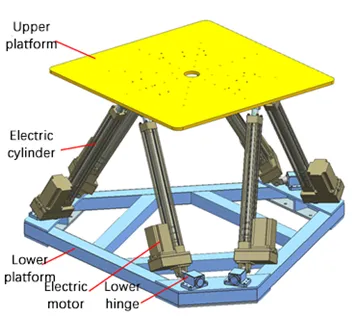

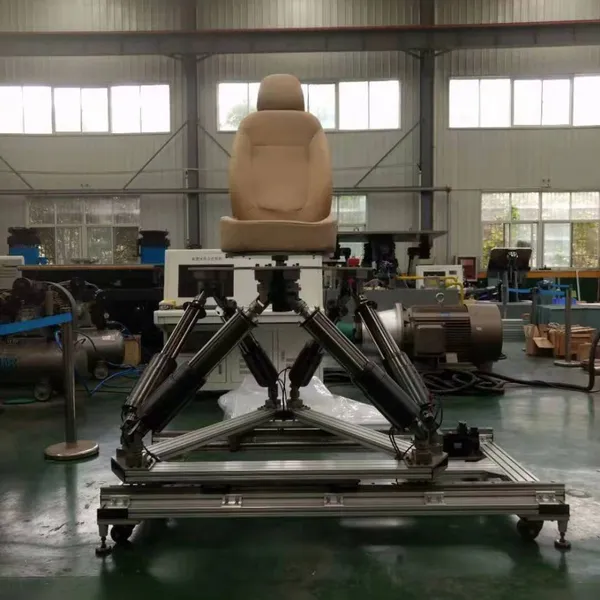

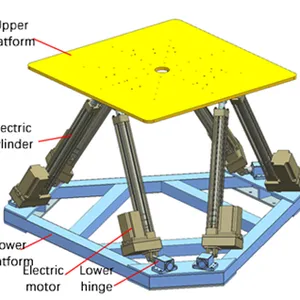

KRD61 series 6-DOF simulation table is a closed-loop servo simulation platform consisting of six servo actuators and six sets of dedicated hinges connected at the top and bottom platforms respectively. By virtue of the telescopic movement of the six actuators, the upper platform moves in six degrees of freedom (X, Y, Z, α, β, γ), so various space motion attitudes can be simulated.
It is widely applied as testing or training simulators in the field of aircraft, vessel, helicopters taking off and landing, automotive, train, earthquake, motion movies, entertainment equipment and other fields. It can even be used for docking of space spacecraft and for refueling of aerial tankers. In the processing industry, it can be made into six-axis linkage machine tools, smart robots, etc.
l It can realize posture simulation, sine wave simulation, single-DOF motion, and multiple-DOF composite motion.
l It can realize road spectrum filtering, road spectrum, wave spectrum, and flight spectrum replication.
l Provide third-party communication interface through TCP / IP protocol.
l Provide internal and external data output control interfaces.
Technical Specifications
|
Parameters |
KRD 60-100 |
KRD 60-300 |
KRD 60-500 |
KRD 60-1000 |
KRD 60-1500 |
KRD 60-2000 |
KRD 60-3000 |
KRD 60-5000 |
KRD 60-8000 |
KRD 60-10T |
||
|
Max. Load (kg) |
100 |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
8000 |
10000 |
||
Height of Specimen COG(mm) |
300 |
500 |
700 |
900 |
||||||||
Yawing |
Angle |
0~±10° |
||||||||||
Cycle |
3s~7s |
|||||||||||
Rolling |
Angle |
0~±45° |
||||||||||
Cycle |
3s～30s |
|||||||||||
Pitching |
Angle |
0~±30° |
||||||||||
Cycle |
4s~30s |
|||||||||||
Rolling Tilting Angle |
0~±45° |
|||||||||||
Pitching Tilting Angle |
0~±30° |
|||||||||||
Table Size (mm) |
800×800 |
1000×1000 |
1500×1200 |
1600×1300 |
1700×1500 |
1800×1600 |
3200×2100 |
3500×2800 |
4000×3000 |
|||
Power |
3-phase AC380V±10％ 20KVA |
3-phase AC380V±10％ 22KVA |
3-phase AC380V±10％ 37KVA |
3-phase AC380V±10％ 45KVA |
3-phase AC380V±10％ 55KVA |
3-phase AC380V±10％ 70KVA |
3-phase AC380V±10％ 90KVA |
3-phase AC 380V±10％ 110KVA |
3-phase AC380V ±10％150KVA |
|||
Working Environment |
Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing) |
|||||||||||
Installation Condition |
According to the foundation drawings provided by the manufacturer |
|||||||||||
Standards |
AC156 ISO 12405 ISO 13849-1 ISO 13090-1 ISO 2631-1 |
|||||||||||
