CNI100mW 473nm Blue Laser for Optogenetics

CNI100mW 473nm Blue Laser for Optogenetics photo-1
US$ 1,352 - 2,028 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Product Description

Lasers for Optogenetics & Neuroscience

Optogenetics is a booming multidisciplinary bioengineering technology. It has the characteristic of high spatial-temporal resolution and cell-type specific. It overcomes the disadvantages of traditional methods of the activity control for the cell and organism, and also provides a revolutionary method for the research of neuroscience. The research fields include fundamental research of neural circuit, study and memory research, habituation research, dyskinesia, sleep disorders, parkinsonism, depressive disorder, anxiety disorder etc., and many classic laboratory animal germ line (drosophila melanogaster, nemathelminth, mice, Marmoset, and machin etc.).

Neuroscience is the scientific study of the nervous system. It is currently an interdisciplinary science that collaborates with other fields such as chemistry, computer science, engineering, linguistics, mathematics, medicine, genetics, and allied disciplines including philosophy, physics, and psychology. It also exerts influence on other fields, such as neuroinduction and neurology. The scope of neuroscience has broadened to include different approaches used to study the molecular, cellular, developmental, structural, functional, evolutionary, computational, and medical aspects of the nervous system.



Features

■ Easy to install and maintain

■ CNI provided high reliability lasers

■All the necessary accessories can be provided

■ Customized solution can be provided upon request

Lasers Related

266 nm, 351 nm, 355 nm, 360 nm, 375 nm, 405 nm, 435 nm, 442 nm, 445 nm, 447 nm, 457 nm, 460 nm, 465 nm,
 473 nm, 488 nm, 491 nm, 515 nm, 520 nm, 532 nm, 543 nm, 556 nm, 561 nm, 589 nm, 593 nm, 633 nm, 637 nm, 640 nm, 642 nm, 650 nm, 671 nm, 690 nm, 720 nm, 750 nm, 785 nm, 800 nm, 808 nm, 825 nm, 830 nm, 905 nm, 915 nm, 940 nm, 980 nm, 1064 nm.

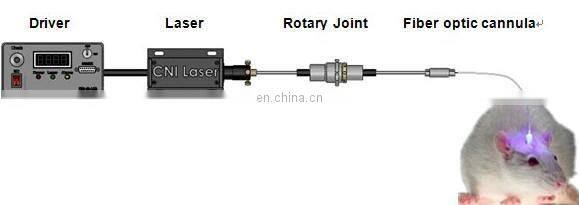

Experimental Device

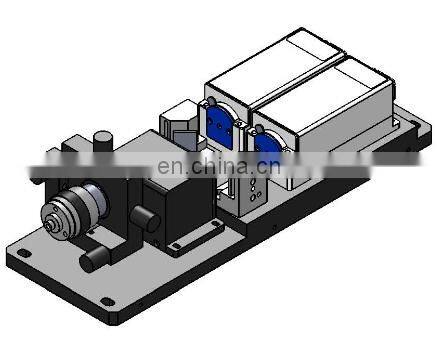

Detailed Images
Central wavelength (nm)
473±1
Operating mode
CW
Output power (mW)
>1, 5, 10, ... , 100
Power stability (rms, over 4 hours)
<3%, <5%, <10%
Transverse mode
TEM00
M2 factor
<1.2
Beam diameter at the aperture 1/e2(mm)
~1.2
Beam divergence, full angle (mrad)
<1. 5
Polarization ratio
>100:1, Vertical±5 degree (Horizontal Optional)
Noise of amplitude (rms, 1~20MHz)
~30%
Warm-up time (minutes)
<10
Beam height from base plate (mm)
24. 8
Operating temperature (℃)
10~35
Power supply (90-264VAC or 5VDC)
PSU-III-LED
PSU-III-FDA
PSU-III-OEM-97

Modulation option
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog

modulation option
Expected lifetime (hours)
10000
Warranty period
1 year
Accessories

Fiber Patch Cables

Fiber Optic Cannula & mating sleeve

Rotary Joint

                       Laser Power Meter

                          2-in-1 laser and fiber combiner

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find more product of our company?

 Search our web to find more products(including more contact way )
