High Performance Line Laser for Machine Vision

Changchun New Industries Optoelectronics Tech Co., Ltd.
High Performance Line Laser for Machine Vision thumbnail-1
High Performance Line Laser for Machine Vision photo-1
US$ 385 - 899 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Product Description

High Performance Line Lasers for Machine Vision

This series of lasers are designed with high performance, high reliability, can be widely used in various 2D/ 3D vision applications and inspection systems. Professional for the visual field applications, with fine stripes, uniform power distribution, clear edges, it can maximize the imaging resolution and accuracy of Machine visual applications.
To meet customers' demand, CNI can provide different wavelengths, different power line laser. Compact dimensions and high reliable structure will make it easy to combine with varies of vision systems.

Specifications

Mechanical Structure Indicators


Model
Line-Z
Max. outline dimensions
Φ22×180 mm
Protection Class
IP67, dust and water proof
Connector plug
M12 plug, 4 pins
Thread
M20

Electronic Performance Indicators

Power supply
Wide power input 5-30V DC (with wrong connection
Current
300mA (max)
Modulation function
TTL modulation and Analog input adjusting power
Max. modulation freqency
100 kHz (TTL)
Analog input signal
0-2.5V (frm min to max)

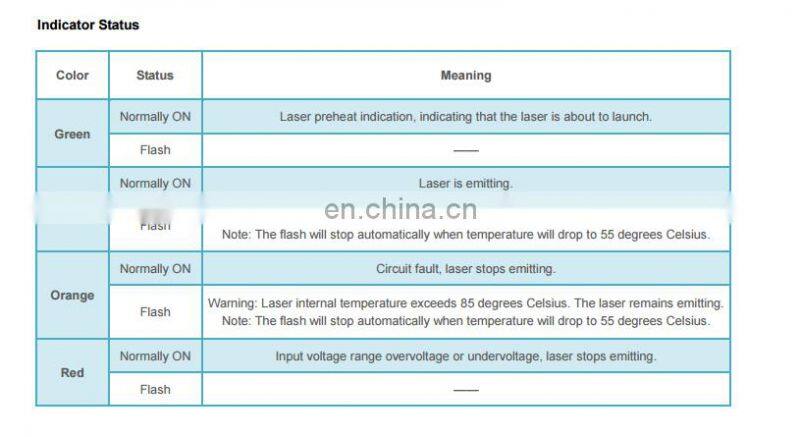

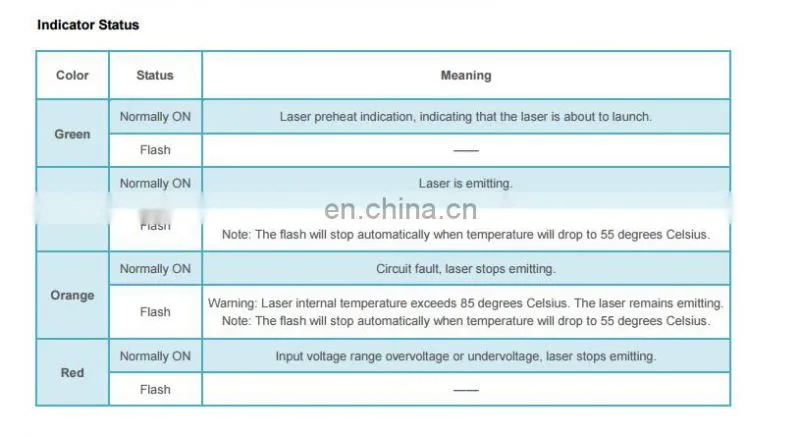

Indicator
Green/ blue/ orange/ red

Optical Parameters

Ouput power
Max 150mW (depends on wavelength)
Laser power
Continuously adjustable
Wavelength
Varies of options 405nm-980nm
Luminance uniformity
85%, 80%, 75%, 70%, etc,...
Straightness error
Less than 0.1%, 0.5%, 1%,...
85% peak power proportion in corss-section
95%, 90%, 85%, 80%,...
Temperature & Power stability
Less than 0.5%, 1%, 3%,...
Fan angle°
7°/10°/15°/30°/45°/60°/75°/90°
Working distance
50-2000mm (adjustable)

External Condition

Ambient temperature in operation
-10-50°C (depends on wavelength)
Ambient temperature in storage
-10-80°C
Ambient temperature in operation
Max 90%, no frosting

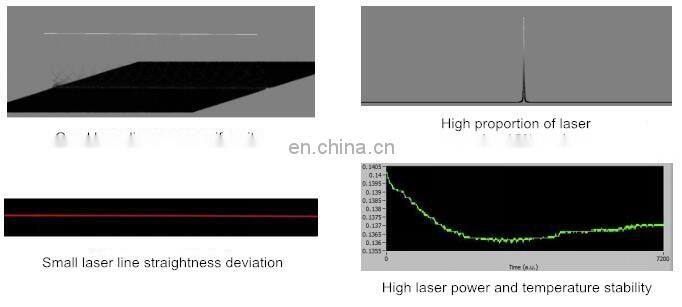

Laser Performance

Signal Control


Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Customer Visit
Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

（1） International Tel: +86-431-85603799

（2） Fax: +86-431-87020258

5. How to find more product of our company?

 Search our web to find more products(including more contact way )
