High energy 1064nm IR Laser for Radar Application
- 100 Unit / Units per Month
- Beijing
- T/T Credit Card
You May Like
Product Details
| Brand Name | CNI | Place of Origin | Jilin, China |
Product Description
High energy diode pumped all solid state Q-swiched laser at 1064nm has the features of high singl epulse energy,short pulse duration,and high peak power,which is widely used in radar,topography measurement,ranging,scientific research,and so on.

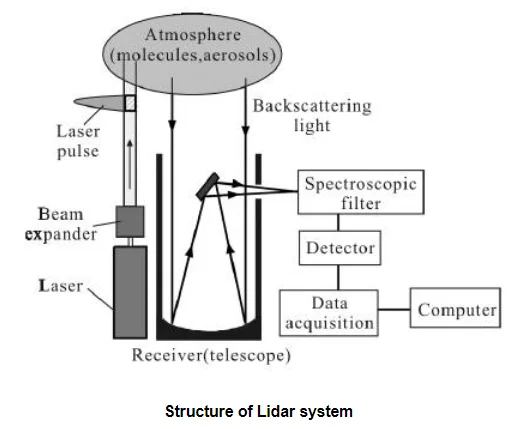

System of detecting Aerosol
The absorption and scattering of Aerosols to sunlight will greatly change the atmosphere system. Aerosol testing provides important data to the study of global warming and pollution of the environment.
CNI provides lasers for the system of detecting Aerosol
based on Mie scattering theory.

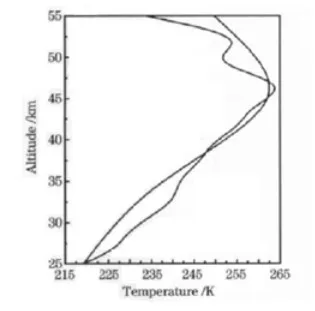

System of detecting the atmospheric temperature
Detection of atmospheric temperature is important to the analysis
of weather forecasting, atmospheric environment and process of atmospheric dynamics. At present, the method of measuring middle
atmosphere temperature is rare, so observing stratospheric temperature
by lidar is very effective.
CNI provides lasers for detection system of the atmospheric
temperature based on Rayleigh scattering theory.
Modle | EO-1064-H |
Wavelength (nm) | 1064±1 |
Operating mode | Q-switched: EO (Electro-optic) |
Single pulse energy (mJ) | 0.5-1 |
Pulse duration (ns) | <6 |
Rep. rate (kHz) | One fixed value between 2~7kHz |
Power stability (rms) | <1%, <2% |
M^2 | <1.5 |
Pointing stability (urad, std) | <20 |
Beam divergence, full angle (mrad) | <3 |
Beam diameter (mm) | ~1 |
Beam height from base plate (mm) | 31,77.5,77 |
Warm-up time (minutes) | <15 |
Cooled method | Conduction (EO-1064-H-I/II/III) |
Operating temperature (℃) | 15-30 |
Power supply (DC 15V, 20A) | PSU-EO-H |
Expected lifetime (hours) | 10000 |
Warranty period | 1 YEAR |
Options | Repetition rate 1~200KHz available. Volume will be increased appropriately. |

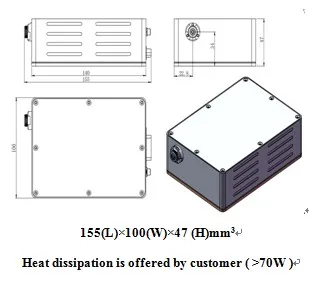

EO-1064-H Laser Head and Power Supply
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
