1. Functional feature
1). Used to measure the concentration of HC, CO, CO2, O2, NO in the Automobile Exhaust Gas.
2). Two kinds of test function: General and Two-speed idle
3). Full English Menu Operation
4). LCD (liquid crystal) screen displays
5). Auto-zeroing
6). Automatic calculation and show the air-fuel ratio λ
7). Equipped with RS232 digital serial communication interface to facilitate networking
8). Optional function: rotate speed and oil temperature measurement
9). Equipped with functions of Plate number and time display
10). Can store and search 500 groups of data, built-in printer
11). Measurable with liquefied gas (LG), liquefied natural gas (LNG) and gasoline and other alternative fuel vehicles.
2. The main technical parameters
| Instrument Precision | |||
| Measurement Range | Indicated Error | ||
| Absolute Error | Relative error | ||
| CO | 0~10×10-2 (%)vol | ±0.06×10-2(%)vol | ±5% |
| CO2 | 0~20×10-2 (%)vol | ±0.5×10-2(%)vol | ±5% |
| HC | 0~10000×10-6 (ppm)vol | ±12×10-6 vol | ±5% |
| O2 | 0~25×10-2 (%)vol | ±0.1×10-2(%)vol | ±5% |
| NO | 0~40000×10-6 (ppm)vol | ±25×10-6 vol | ±4% |
| Other Sepcifications | |
| Response Times: | CO, HC, CO2≤ 10S |
| NO, O2≤ 15S | |
| Power: | 220V / 50Hz (can be customized) |
| Preheating Time: | 10min (3 min. warm-up for fast measurement) |
| Display Method: | LCD large screen display |
| Gross Weight: | 15Kg |
| Packing Size: | 610*500*330mm |
| Temperature | -5~40 centigrade |
| Humidity | no more than 85% |
| Atmospheric Pressure | 86~106kPa |
| Packing List | ||
| Item | Description | Qty |

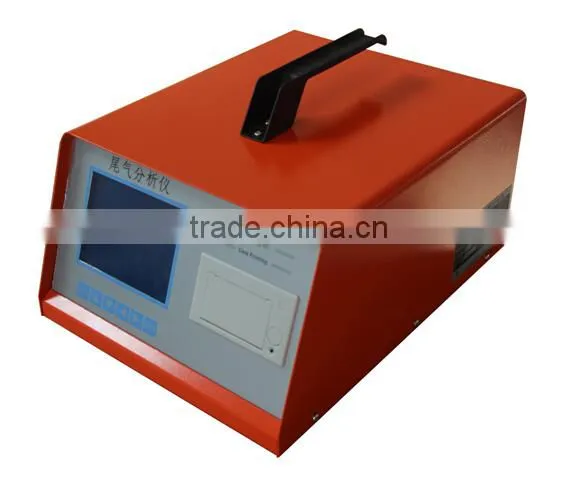

| 1 | SV-5Q Automobile Exhaust Gas Analyzer | 1 |
| 2 | Standard Gas(if ship by air, will not be included) | 2 |
| 3 | Protective Tube | 2 |
| 4 | Sampling Handle | 1 |
| 5 | Probe Tube | 1 |
| 6 | Operation Instruction | 1 |
| 7 | Calibration Certificate | 1 |
| 8 | Filter Paper | 1 |
| 9 | 220V power line | 1 |
| 10 | Front Filter | 8 |
| 11 | After-filter Tip | 10 |
| 12 | Tail Pipe (1m) | 1 |
| 13 | Print Paper | 1 |
| 14 | Specialized Spanner | 1 |
| 15 | Network Tie-in | 1 |
| 16 | Pump Cover | 2 |
| 17 | Filter Element For Oil-water Separator | 2 |
| 18 | PC Software and Operation video | 1 |
| 19 | Oil temperature Tester ( Free) | 1 |
| 20 | RPM Tester (Free) | 1 |
L&T Mechanical & Electrical Equipment Co., Ltd. is a major import-export enterprise located in the port city of Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, since 1994, we supplied billions of dollars worth of products to domestic and overseas partners every year. Our mission is to develop business by continually exceeding customers’ expectations on service and product reliability.
FAQ
Q1: How can I get the after sale service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts for free for the problems caused by us.
If it is caused by man-made problems, we will send the spare parts to customers. Only need to pay cost of spare parts.
Any problem during usage, customers can call us directly.
Q2: Are you a factory or a trade company?
A: We are an export department of our group company. We have our own factory.
Q3: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory. We can pick you up at the airport.
Hotel booking service is available.
Q4: How can I trust your company?
A: With 12-years-export experience, we can provide you suitable recommendation and competitive price
1. ISO9001:2008 quality management system certified.
2. Professional foreign trade team, satisfy each customer’s demands.
3. Professional product, strictly quality control, timely delivery guaranteed.
Q5: Is your price competitive?
A: Only good quality machine and instruments we supply. Surely we will give you best factory price based on superior product and service.
Q6: Can I change the motor voltage?
A: Yes, we can install different motors such as 110V,220V,380V.
Q7: Can I put my logo on?
A: Welcome OEM order.
