Product Description

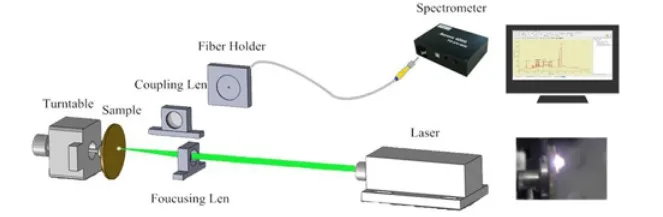

LIBS is an atomic emission spectrocopy technique.Its application have been reported conceming metalanalysis,soll analysis,agricultural product analysis,coal analysis,aqueous solution analysis,jewel authenticate and etc.

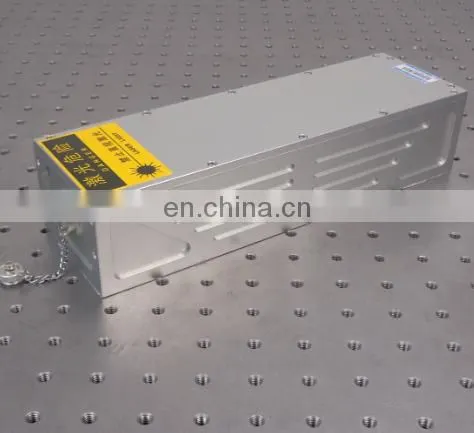

High energy diode pumped all solid state Q-switched Laser at 1064nm has the features of high single pulse energy, short pulse duration,and high peak power, DPS-1064-D single pulse energy 0.5-2mj optional,belowLaser can be used for solid testing.1064nmpulse IR Laser For LIBS is widely used in LIBS, LIF, ICP-MS, LCD repair, scientific research, and so on
Feature:
CNI self-made high performance laser source
Long-distance, real-time, online,Small size, quick response
Easy to install, uninstall and maintain
Adapt to the harsh environment
Customized solutions available

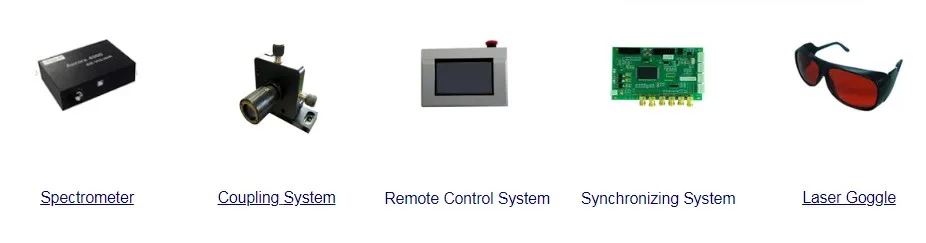

Accessories:
SPECIFICATIONS:
.
Model | DPS-1064-D | ||||||
Wavelength (nm) | 1064±1 | ||||||
Operating mode | Q-switched: EOM (Electro-optic modulation) | ||||||
Single pulse energy (mJ) | 0.5,1,2 | ||||||
Pulse duration (ns) | <10 | ||||||
Rep. rate (Hz) | 1~100 , EXT (adjustable) | ||||||
Energy stability | <3%,<5% | ||||||
Beam divergence, full angle (mrad) | <2 | ||||||
Beam diameter (mm) | ~2.5 | ||||||
Warm-up time (minutes) | <15 | ||||||
Beam height from base plate (mm) | 45 | ||||||
Cooled method | Air Cooled | ||||||
Operating temperature (℃) | 15-30 | ||||||
Power supply (220/110VAC) | PSU-DPS-D | ||||||
Expected lifetime of lamp (pulses) | 10^9 | ||||||
Warranty period | 1 year | ||||||
Available Options | Jitter (Sdev):~1ns ( Electro-optic modulation); Battery power supply | ||||||
Dimensions
DPS-1064-D Laser ane Power supply
