CNI Blue Single Longitudinal Mode Laser for Holography

CNI Blue Single Longitudinal Mode Laser for Holography thumbnail-1
CNI Blue Single Longitudinal Mode Laser for Holography photo-1
US$ 5,000 - 10,100 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
MSL-FN-473
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number MSL-FN-473
Product Description

Lasers for Holography

 Holography is divided into two processes which are recording and reproduction, the interference fringes is generated on the holographic plate through thesuperposition between the reference light and the reflected light during the recording. Then, after the holographic plate is processed in the darkroom, an image exactly same to the original objectwill be reproduced from the interference pattern on the photosensitive sheet by diffraction. Compared with ordinary photographic, Holography not only records the amplitude of light field of the object, but also records the relative phase of the reflected light waves. Holography is widely used inholographic microscopy, holographic security, data storage, deformation measurement, holographic interferometry and etc.

Features

■ High reliability single longitudinal mode lasers ( coherence length >50m )

■ Easy to install and maintain. Relevant components can be provided

■ Customized solution can be provided upon request

Laser Related

  Wavelengths: 360nm, 405nm, 457nm, 473nm, 532nm, 556 nm, 561 nm, 589 nm, 633 nm, 656nm, 660nm, 671nm, 1064nm,

1342nm, 1550nm, etc. Multi-wavelengths system is also available on request

Accessories

Beam Shutter

Beam Expander

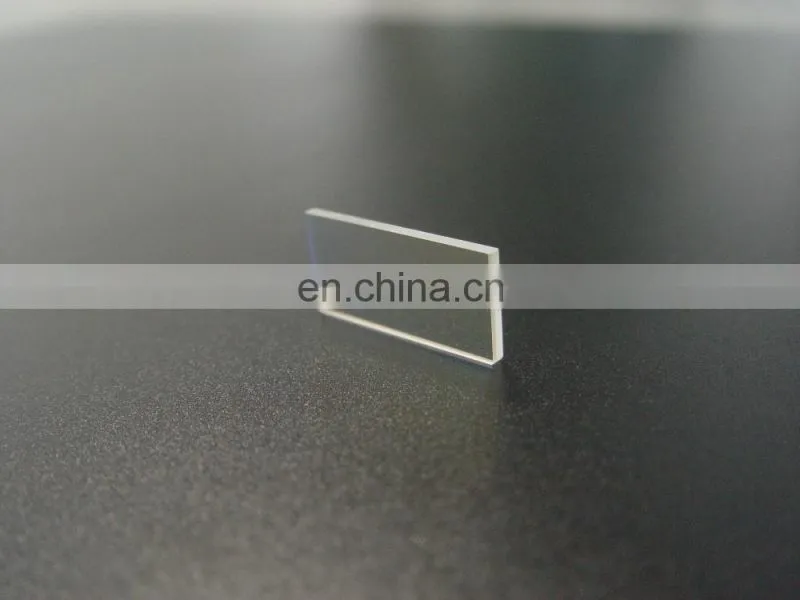

Wave Plate

 Beam Splitter

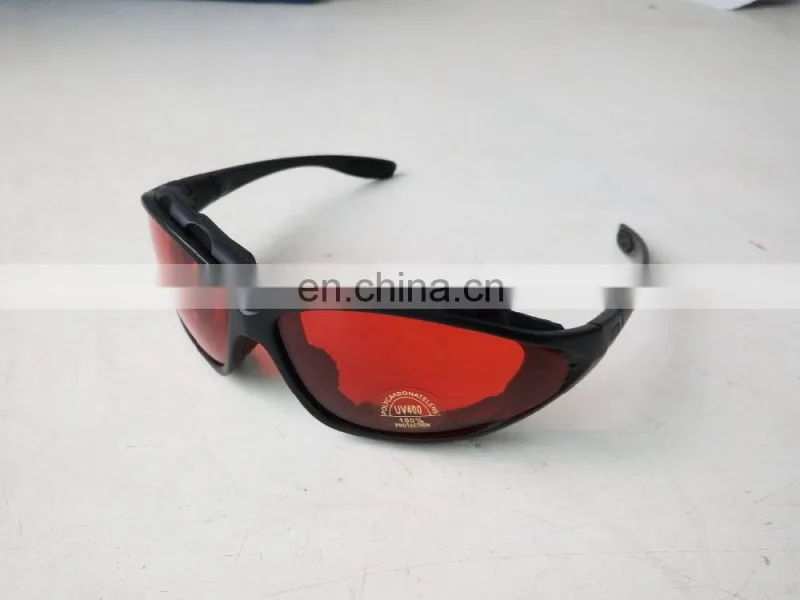

                                               Laser Goggles

Research achievements of CNI laser for Holography from customers

 (1) Three-dimensional holographic photostimulation of the dendritic arbor

(J. Neural Eng. 8 046002; doi:10.1088/1741-2560/8/4/046002) (CNI-405nm)


(2) Two-wavelength exposure enhancement in holographic data storage of spirooxazine-doped polymers
(Optics Communications Vol. 338, 1 March 2015, Pages 269–276) (CNI-405nm)


(3) Depth resolved hyperspectral imaging spectrometer based on structured light illumination and Fourier transform interferometry
(Biomedical Optics Express, Vol. 5, Issue 10, pp. 3494-3507 (2014)) ( CNI-473nm)


(4) Optical magnetic imaging of living cells (Nature 496, 486–489 (25 April 2013)doi:10.1038/nature12072)(CNI- 532nm）


(5) Multi-wavelength laser sensor for intruder detection and discrimination
(Optics and Lasers in Engineering Vol. 50, Issue 2, Pages 176–181) (CNI-532nm)


(6) Optical observation of shock waves and cavitation bubbles in high intensity laser-induced shock processes
(Applied Optics, Vol. 48, Issue 19, pp. 3671-3680 (2009)) (CNI-532nnm)


(7) Microscope spectrometer for light scattering investigations
(Applied Optics, Vol. 49, Issue 22, pp. 4193-4201 (2010)) ( CNI-671nm/532nm)

Detailed Images

SPECIFICATIONS

Wavelength (nm)
473±1
Operating mode
CW
Output power (mW)
>1, 5, 10, 20, … , 100
Power stability (rms, over 4 hours)
<1%, <3%, <5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 1Hz~20MHz)
<1%, typical<0.5%
M2 factor
<1.2
Beam diameter at the aperture (1/e2, mm)
<2.5, typical<2.0
Beam divergence, full angle (mrad)
<1.2
Polarization ratio
>100:1, Vertical±5 degree (Horizontal Optional)
Warm-up time (minutes)
<10
Pointing stability after warm-up (mrad)
<0.05

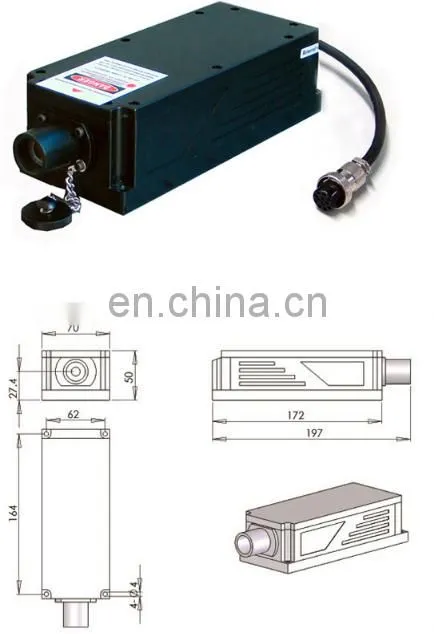

Beam height from base plate (mm)
27.4
Operating temperature (℃)
15~35
Expected lifetime (hours)
10000
Power supply (90-264VAC)

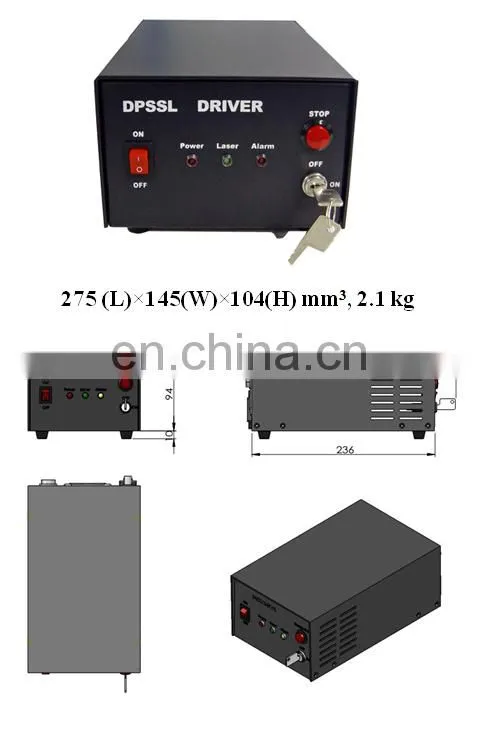

PSU-H-FDA
Warranty
1 year

Note: The laser head needs to be used on a heat sink with good heat dissipation.
