Single Frequency 532nm Green Laser for Raman Spectroscopy

Changchun New Industries Optoelectronics Tech Co., Ltd.
Single Frequency 532nm Green Laser for Raman Spectroscopy thumbnail-1
Single Frequency 532nm Green Laser for Raman Spectroscopy photo-1
US$ 2,000 - 22,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Product Description

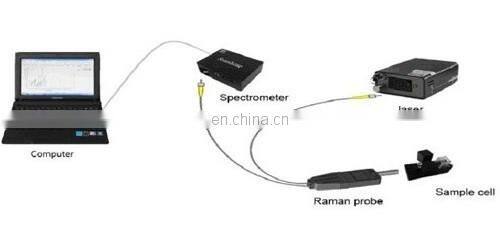

Raman Spectra Solution

It is given material molecular vibration and rotation information, different materials have different from other material characteristic spectrum - characteristic peak, which provides for the characterization and identification fingerprinting substance. Its application areas include chemical/biological research, environmental science, jewelry appraisal, textile industry, food safety testing, judicial authentication, pharmaceutical and medical diagnostics, geological exploration and detection of dangerous goods, etc.

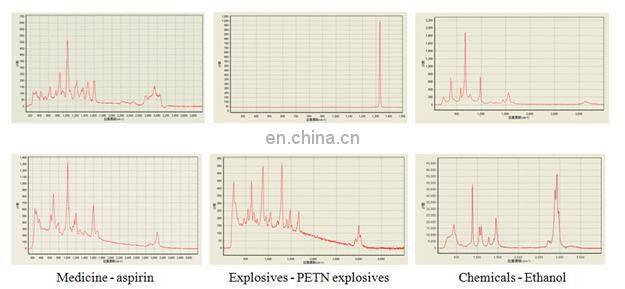

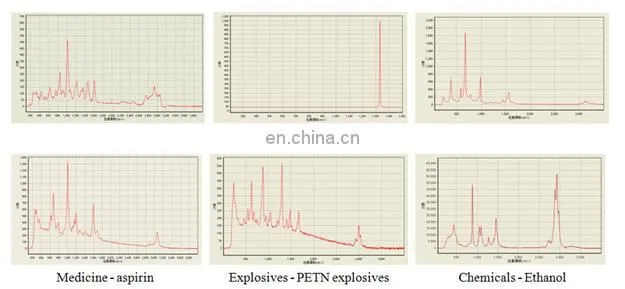

Raman spectra

Features

■ CNI high reliability lasers

■ All the necessary accessories available

■ Easy to install and maintain

■ Customized solution upon request

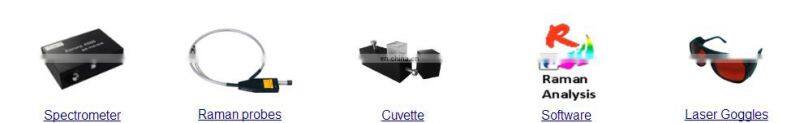

Accessories
Detailed Images

SPECIFICATIONS 1:


Model
MSL-III-532
MSL-FN-532
MSL-F-532
Wavelength (nm)
532±2
532±1
532±1
Operating mode
CW
Output power (mW)
>1, 5, 10, 20, - , 100
>1, 5, 10, 20, - , 400
>400, 600, - , 700
Power stability (rms, over 4 hours)
<1%, <2%, <3%
<1%, <2%, <3%
<1%, <2%, <3%, <5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 1Hz~20MHz)
<0.5%
<0.5%
<1%, typical<0.5%
M2 factor
<1.5
<1.5
<1.2(<1.1 optional)
Beam diameter at the aperture (1/e2 , mm)
<1.5
<1.5
<2.5
Beam divergence, full angle (mrad)
<1.2
Beam divergence, full angle (mrad)
>100:1, Vertical±5 degree (Horizontal Optional)
Warm-up time (minutes)
<10
Pointing stability after warm-up (mrad)
<0.05
Beam height from base plate (mm)
24.8
27.4
45
Operating temperature (℃)
15-35
Power supply (90-264VAC)
PSU-III-FDA
PSU-H-FDA
PSU-H-FDA
Expected lifetime (hours)
10000
Warranty
1 YEAR

SPECIFICATIONS 2:


Model
MSL-S-532
MSL-DS-532
Wavelength (nm)
532±2
532±1
Operating mode
CW
Output power (mW)
>1,5,10,20,-,50
>1,5,10,20,-,100
Power stability (rms, over 4 hours)
<1%,<2%,<3%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 20Hz~20MHz)
<0.5%
M 2 factor
<1.2(<1.1 optional)
Beam diameter at the aperture( 1/e2 ,mm)
0.7±0.05
Beam divergence, full angle (mrad)
<1.5
Polarization ratio
>100:1 Horizontal±5 degree (Vertical Optional)
Pointing stability after warm-up (mrad)
<0.05
Pointing stability Over Temp. (µrad/°C)
<8
Warm-up time (minutes)
<5
Beam height from base plate (mm)
19
Power Consumption(W)
<30
<6
Fiber
Multimode/ Single Mode
Shock Tolerance(6ms)
7g laterally,15g vertically
IP Rating
IP67 ,IP65
Power supply(90-264VAC)
PSU-H-FDA ,PSU-A-F
5V DC (Photoelectric integrated)
Operating temperature (℃)
0-60
15-35
Max. Heat Dissipation of Head(W)
10W@50℃,4W@25℃
Storage temperature (℃)
0-50
Modulation
Modulation isn`t available.
Expected lifetime (hours)
10000
Warranty
1 YEAR

SPECIFICATIONS 3:


Model
MSL-RA-532
MSL-R-532
Wavelength (nm)
532±1
Operating mode
CW
Output power (W)
>1, 1.1, 1.2, - , 2
>1, 2, - , 5
Power stability (rms, over 4 hours)
<1%,<2%,<3%
<1%,<2%,<3%,<5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 1Hz~20MHz)
<1%
Beam diameter at the aperture (1/e 2 , mm)
<2
~1.5
Beam divergence, full angle (mrad)
<1.2
<1.5
M2 factor
<1.2
Warm-up time (minutes)
<10
<20
Pointing stability after warm-up (mrad)
<0.05
Beam height from base plate (mm)
51
19
Cooled method
Water cooled
Operating temperature (℃)
20-30
Power supply (90-264VAC)
PSU-H-FDA
PSU-W-FDA
Expected lifetime (hours)
10000
Warranty
1 YEAR

Research Achievements of CNI Laser for Raman from Customers

(1) Laserski inducirana fluorescencija porfirina u karijesnoj leziji

(Acta stomatologica Croatica,Vol.44 No.2 Lipanj 2010) (CNI-473nm)

(2) Tailoring Optical Properties of Silicon Nanowires by Au Nanostructure Decorations: Enhanced Raman Scattering and Photodetection

(J. Phys. Chem. C, 2012,116 (7), pp 4416–4422) (CNI-532nm/785nm)

(3) Heteroepitaxial Decoration of Ag Nanoparticles on Si Nanowires: A Case Study on Raman Scattering and Mapping

(Nano Lett., 2010, 10 (10), pp 3940–3947) (CNI-532nm)


(4) Near-field Raman imaging using optically trapped dielectric microsphere

 (Optics Express, Vol. 16, Issue 11, pp. 7976-7984 (2008)) (CNI-532nm/1064nm)

(5) Up-conversion processes in NaLaF4:Er3+

(Optical Materials, Volume 31, Issue 10,August 2009, Pages 1517–1524) (CNI-671nm)

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
