1064nm High Energy IR Laser For Gas Analysis

1064nm High Energy IR Laser For Gas Analysis photo-1
US$ 12,500 - 21,850 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin China
Product Description

   LIBS is an atomic emission spectrocopy technique.Its application have been reported conceming metalanalysis,soll analysis,agricultural product analysis,coal analysis,aqueous solution analysis,jewel authenticate and etc.
  High energy diode pumped all solid state Q-switched laser at 1064nm has the features of high single pulse energy, short pulse duration,and high peak power, LPS-1064-L single pulse energy 350-1000MJ optional .It can be used for solid testing.1064nm pulse IR laser for LIBS is widely used in LIBS, LIF, ICP-MS, LCD repair, scientific research, and so on

Feature:

CNI self-made high performance laser source

Long-distance, real-time, online,Small size, quick  response

Easy to install, uninstall and maintain

Adapt to the harsh environment

Customized solutions available

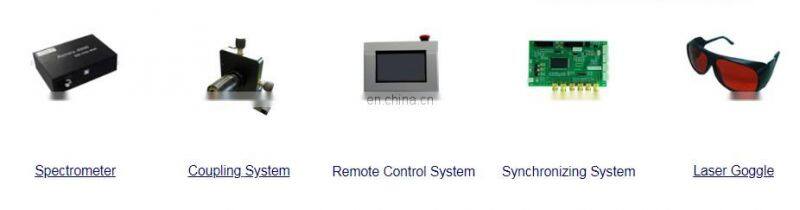

Accessories:


SPECIFICATIONS:

.

Model
LPS-1064-L
Wavelength (nm)
1064±1
Operating mode
Q-switched: EOM (Electro-optic modulation)
Single pulse energy (mJ)
350,500,750,1000
Pulse duration (ns)
<10,<8
Rep. rate (Hz)
1~10 (adjustable)
Energy stability
<1%,<2%,<3%,<5%
Beam divergence, full angle (mrad)
~1,~3
Beam diameter (mm)
7,8,9
Warm-up time (minutes)
<15
Beam height from base plate (mm)
80
Cooled method
Water Cooled
Operating temperature (℃)
15-35
Power supply (220/110VAC)
PSU-LPS-L(3U)
Expected lifetime (pulses)
10^7-10^8
Warranty period
1 YEAR
Available Options
SHG Module ;Higher Repetition Rates:≤20Hz ; Jitter:~1ns(Sdev)

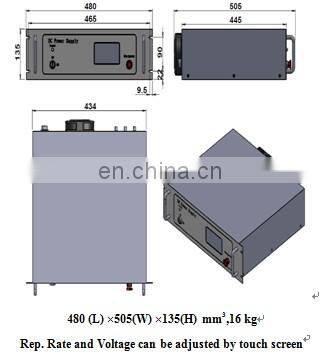

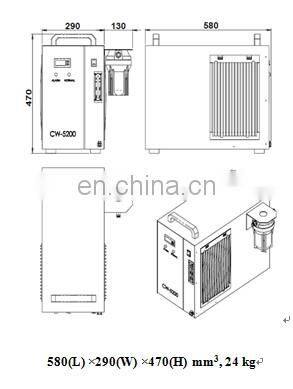

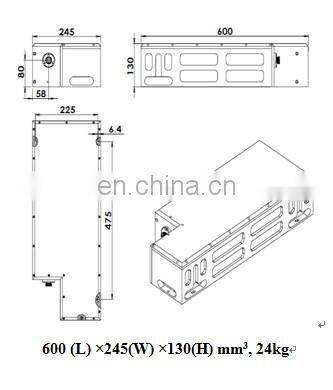

Dimensions
Detailed Images
Certification

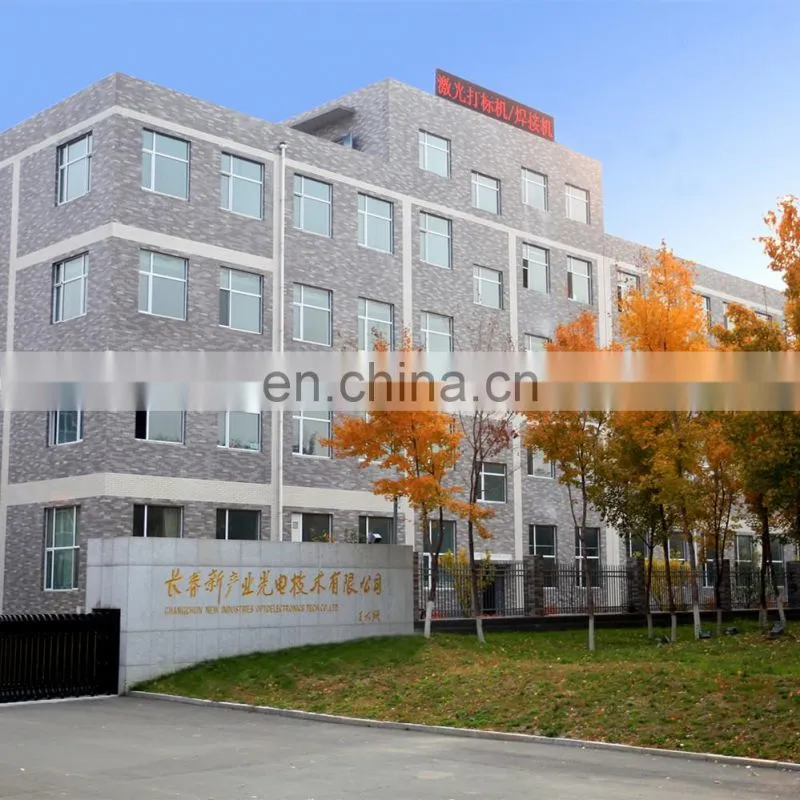

Company Information
