SINGLE LONGITUDINAL MODE YELLOW LASER AT 589nm
CNI's All solid state single longitudinal laser at 589nm features ultra compact,long lifetime and easy operating,they are used in DNA sequencing,flow cytometry,cell sorting,optional instrument,spectrum analysics,interference,measurement, holography,physics experiment,etc.
Specifications:
Model |
MSL-F-589 |
MSL-RA-589 |
|
Wavelength (nm) |
589±1 |
||
Output power (mW) |
>1,5,10,20,...,200 |
>1, 10, -, 500 |
|
Operating mode |
CW |
||
Power stability (rms, over 4 hours) |
<3%, <5%, <10% |
<3%, <5% |
|
Transverse mode |
Near TEM00 |
TEM00 |
|
Longitudinal mode |
Single |
||
Spectral linewidth (nm) |
<0.00001 |
||
Coherent length (m) |
>50 |
||
Noise of amplitude (rms, 20Hz~20MHz) |
<1%, typical<0.5% |
<1% |
|
M2 factor |
<1.2 |
||
Beam diameter at the aperture( 1/e2 ,mm) |
<2.5 |
<2.0 |
|
Beam divergence, full angle (mrad) |
<1.2 |
<1.5 |
|
Pointing stability after warm-up (mrad) |
<0.05 |
||
Polarization ratio |
>100:1, Horizontal±5 degree (Vertical Optional) |
>100:1 |
|
Warm-up time (minutes) |
<10 |
||
Beam height from base plate (mm) |
45 |
51 |
|
Operating temperature (℃) |
15-35 |
20-30 |
|
Cooled method |
Water cooled |
||
Power supply (90-264VAC) |
PSU-H-FDA |
||
Expected lifetime (hours) |
10000 |
||
Warranty |
1 year |
||

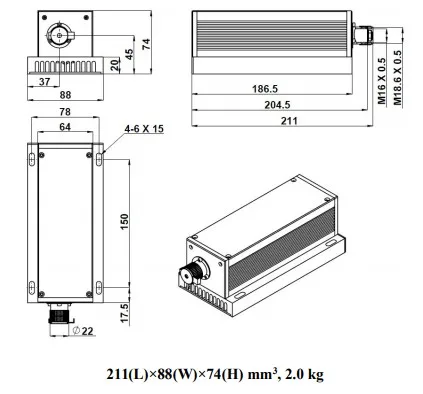

MSL-F-589 Laser Head
PSU-H-FDA Power Supply
MSL-RA-589 Laser Head
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
