green laser 500mW 1000mW
APPLICATIONS:
It is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
SPECIFICATIONS:
Wavelength (nm) | 532±1 | |||
Output power (mW) | >400, 500, 600, …, 1400 | 1500,1600,1700,…,2000 | ||
Transverse mode | Near TEM00 | |||
Operating mode | CW | |||
Power stability (rms, over 4 hours) | <1%, <3%, <5%, <10% | |||
Warm-up time (minutes) | <10 | |||
M2 factor | <2. 0 | <3.0 | ||
Beam divergence, full angle (mrad) | <2. 0 | <1.0 | ||
Beam diameter at the aperture (mm) | ~3. 0 | ~4. 0 | ||
Beam height from base plate (mm) | 29 | |||
Polarization ratio | >100:1 | |||
Pointing stability after warm-up (mrad) | <0.05 | |||
Operating temperature (℃) | 10~35 | |||
Power supply (90-264VAC) | PSU-H -LED | PSU-H-FDA | PSU-H-OEM | |
Modulation option | TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option | |||
Expected lifetime (hours) | 10000 | |||
Warranty period | 1 year | |||
532nm 2W Green laser

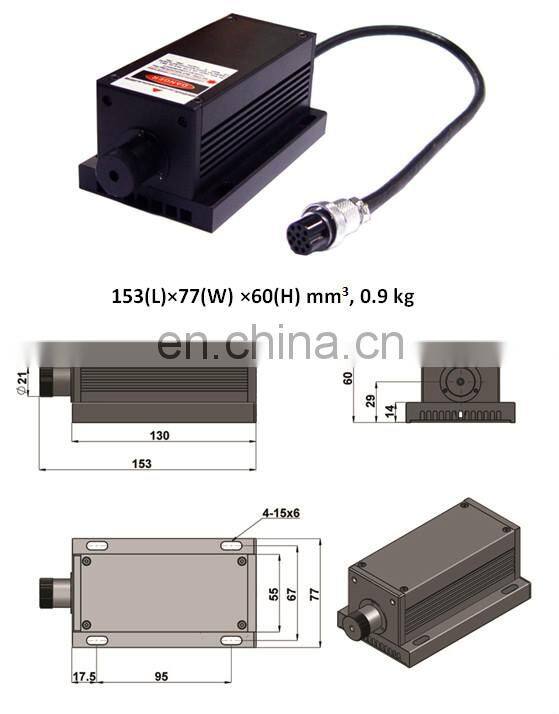

Laser Head

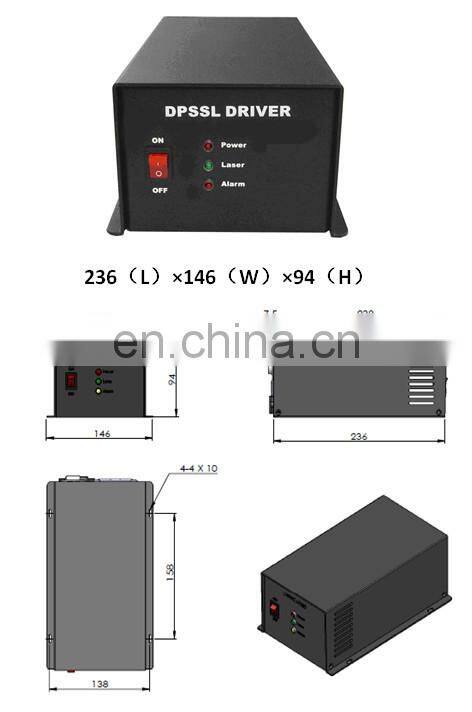

PSU-H-LED Power supply
PSU-H-FDA Power supply
PSU-H-OEM Power supply
