Single Longitudinal Mode 100mw 532nm Green Laser for Harsh Condition

Changchun New Industries Optoelectronics Tech Co., Ltd.
Single Longitudinal Mode 100mw 532nm Green Laser for Harsh Condition thumbnail-1
Single Longitudinal Mode 100mw 532nm Green Laser for Harsh Condition photo-1
US$ 3,705 - 4,550 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Product Description

SINGLE LONGITUDINAL MODE GREEN LASER AT 532 nm


All solid state single longitudinal mode green laser at 532 nm is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, low cost and easy operating, working under the pressure of 0.02kPa, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.

Model
MSL-S-532-A(Harsh condition)
MSL-S-532-B(Normal condition)
Wavelength (nm)
532±2
 Output power (mW)
>1,5,10,20,...,100
Operating mode
CW
Power stability (rms, over 4 hours)
<1%,<2%,<3%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 20Hz~20MHz)
<0.5%
M2 factor
<1.2(<1.1 optional)
Beam diameter at the aperture( 1/e2 ,mm)
0.7±0.05
Beam divergence, full angle (mrad)
<1.5
Pointing stability after warm-up (mrad)
<0.05
Pointing stability Over Temp. (µrad/°C)
<8
Warm-up time (minutes)
<5
Beam height from base plate (mm)
19
Power Consumption(W)
<30
Shock Tolerance(6ms)
7g laterally,15g vertically
IP Rating
IP67
IP65
Power supply(90-264VAC)
PSU-H-FDA                              PSU-A-F
Operating temperature (℃)
0-60
10-35
Max. Heat Dissipation of Head(W)
10W@50℃
4W@25℃
Modulation
Modulation isn't available.
Expected lifetime (hours)
10000
Warranty
1 year
Dimensions

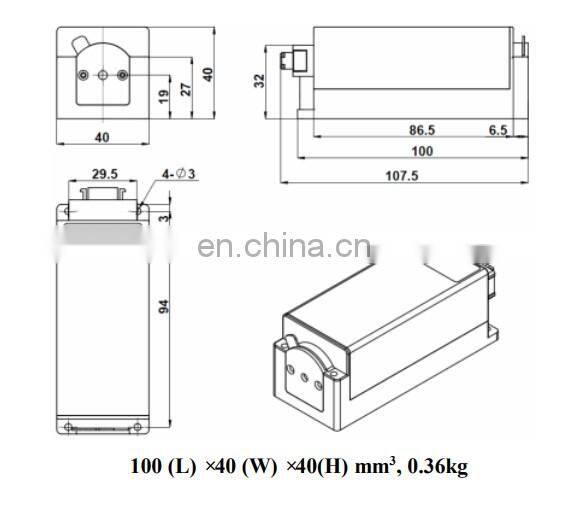

Laser Head

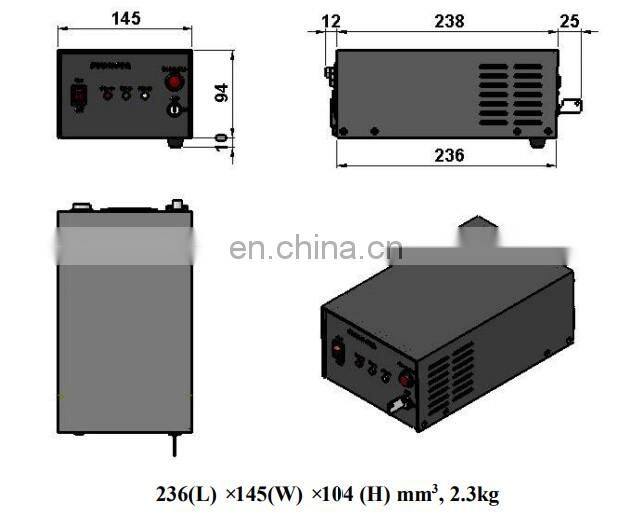

PSU-H-FDA Power Supply

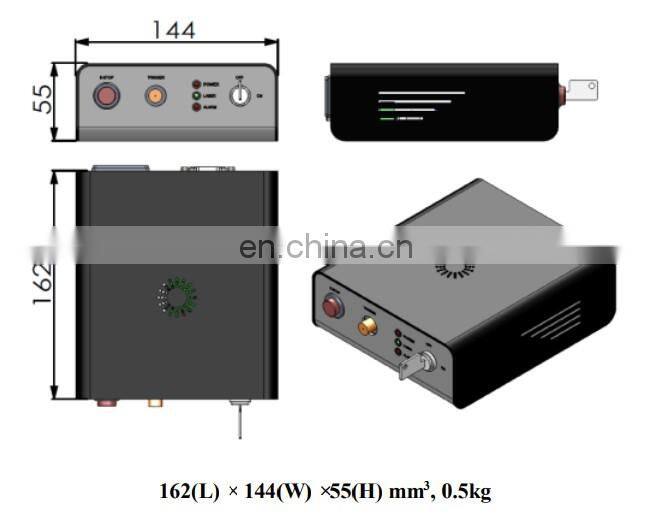

PSU-A-F Power Supply



Certifications
Customer Visit
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
