2.5w Pump Solid State 532nm Diode Laser for Collimation

2.5w Pump Solid State 532nm Diode Laser for Collimation photo-1

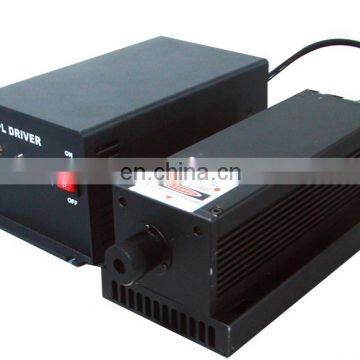

2.5w Pump Solid State 532nm Diode Laser for Collimation photo-2
2.5w Pump Solid State 532nm Diode Laser for Collimation photo-3
US$ 3,380 - 4,700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
MGL-F-532-2.5W
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number MGL-F-532-2.5W
Product Description

Product Application

It is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc

Specifications for Pump Solid State 532nm Diode Laser
Wavelength (nm)
532±1
Operating mode
CW
Output power (mW)
>1500, 1600, 1700, …,
2500MW
Power stability (rms, over 4 hours)
<1%, <3%, <5%, <10%
Transverse mode
Spectral linewidth (nm)
<0.1
<0.003
M2 factor
<1.1
Beam diameter at the aperture (1/e2,mm)
~2. 0
Beam divergence, full angle (mrad)
<1.2
Beam height from base plate (mm)
45
Polarization ratio
>100:1
Warm-up time (minutes)
<10
Pointing stability after warm-up (mrad)
<0.05
Operating temperature (℃)
10~35
Power supply (90-264VAC)
PSU-H-LED
PSU-H-FDA
TTL / Analog modulation
None ( TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional)
Expected lifetime (hours)
10000
Warranty period
1 year

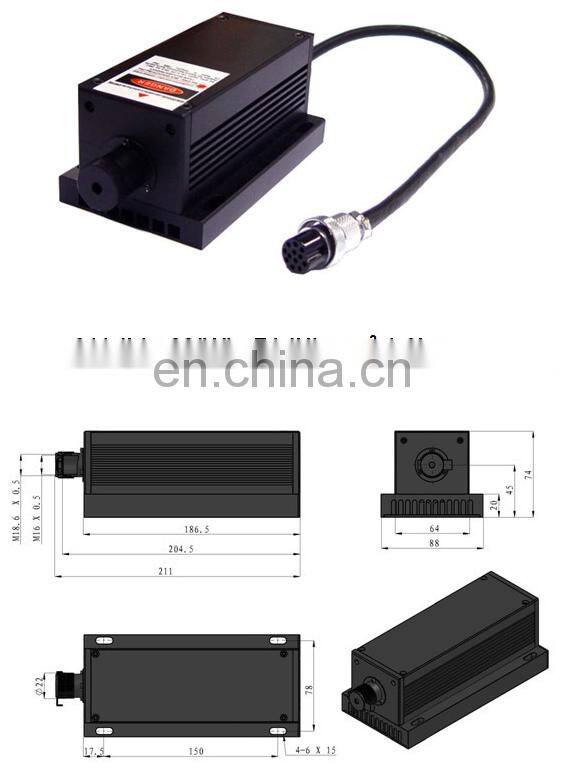

Dimensions

Laser Head

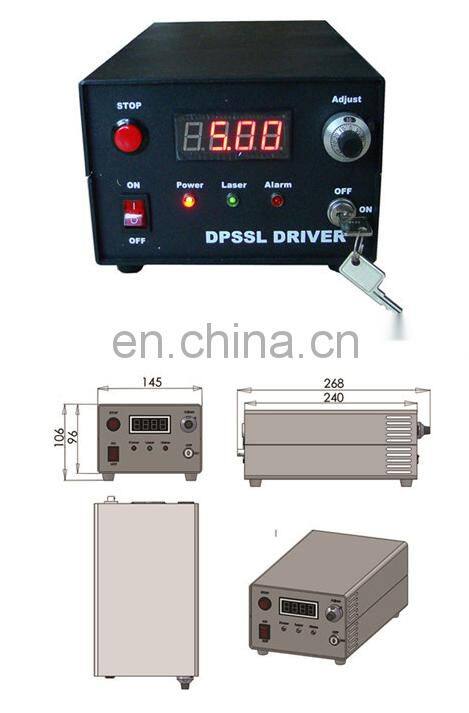

Power Supply---PSU-H-FDA

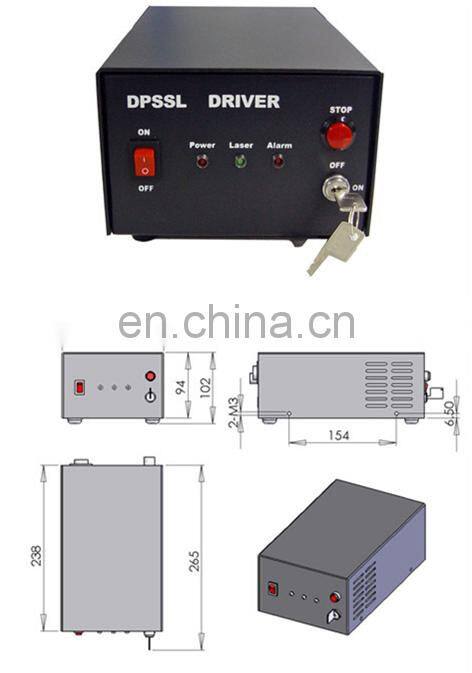

Power Supply---PSU-H-LED

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Customer Visit
Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find nore product of our company?

 Search our web to find more products(including more contact way )
