Single Longitudinal Mode Infrared Laser at 1064nm

Changchun New Industries Optoelectronics Tech Co., Ltd.
Single Longitudinal Mode Infrared Laser at 1064nm thumbnail-1
Single Longitudinal Mode Infrared Laser at 1064nm photo-1
US$ 1,875 - 11,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Product Description

SINGLE LONGITUDINAL MODE YELLOW LASER AT 589nm

All solid state single frequency IR laser at 1064nm is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, cost -effectiveness and easy operating, working under the pressure of 0.02kPa, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, laser printing, chip inspection, physics experiment, etc.However all polarization fiber single frequency mode high power laser at 1064nm is consisting of the seed laser and an amplifier optimized for low noise operation and application demanding more optical power, which has been designed for operation in ranging, gravitational wave, scientific research, etc


 Specifications 1:

Model
MSL-S-1064
MSL-III-1064
MSL-R-1064
Wavelength (nm)
1064±1
Operating mode
CW
Output power (mW)
>1,5,10,20,-,200
>1, 5, 10, 20, - , 1000
>1, 2, ..., 10
Power stability (rms, over 4 hours)
<1%, <2%, <3%
<1%, <2%, <3%
<1%, <2%, <3%,<5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
>50
M 2 factor
<1.2
<1.5(<1.2 optional)
<1.5
Beam diameter at the aperture( 1/e2 ,mm)
1.00±0.05
<2.0
~1.5
Beam divergence, full angle (mrad)
<1.7
<1.5
<1.5
Noise of amplitude (rms, 1Hz~20MHz)
<1%, typical<0.5%
<0.5%
Polarization ratio
>100:1
Pointing stability after warm-up (mrad)
<0.05
Pointing stability Over Temp. (µrad/°C)
<8
Warm-up time (minutes)
<5
<10
<20
Beam height from base plate (mm)
19
24.8
59
Power Consumption(W)
<40
Shock Tolerance(6ms)
7g laterally,15g vertically
IP Rating
IP67,IP65
Power supply(90-264VAC)
PSU-H-FDA,PSU-A-F
PSU-III-FDA
PSU-W-FDA
Operating temperature (℃)
0-60
15-35
20-30
Max. Heat Dissipation of Head(W)
10W@50℃,4W@25℃
Modulation
Modulation isn`t available.
Cooled method
Water cooled
Expected lifetime (hours)
10000
Warranty
1 year

 Specifications 2:

Model
MSL-AO-1064
FL-1064-SF
Wavelength (nm)
1064±1
Operating mode
Acousto-Optic Q-switched
CW
Output power (mW)
10,100,500
Single pulse energy (µJ)
1-200
Longitudinal mode
Single
Transverse mode
TEM00
Spectral linewidth (KHz)
<100
Frequency shift (MHz)
<10@1hour
Beam Delivery Optics
FC/APC
M 2 factor
<1.2
Pulse duration (ns)
<25
Peak power (kW)
1-8
Rep. rate (Hz)
1-1000
Polarization ratio
>100:1
>15dB
power stability (over 4 hours)
<3%, <5%
<1%, <2%
Beam divergence, full angle (mrad)
<2
Beam diameter at the aperture (1/e2 ,mm)
~2
Beam height from base plate (mm)
59
Warm-up time (minutes)
<20
<30
Cooled method
Water Cooled
Operating temperature (℃)
20-30
15-35
Power supply (90-264VAC)
PSU-AOM(3U)
12VDC
Expected lifetime (hours)
10000
Warranty period
1 year
Options
RS 232 interface PZT tuning
Certifications
Dimensions

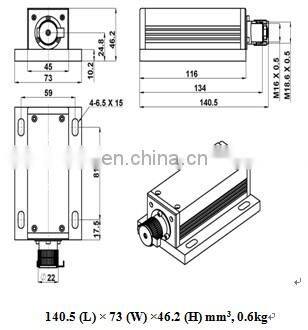

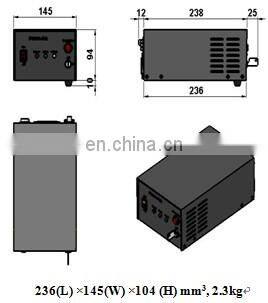

MSL-S-1064  Laser Head and Power Supply

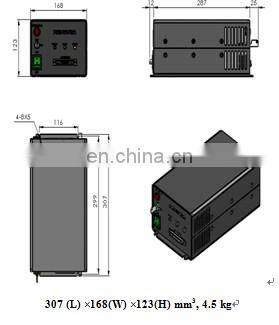

MSL-III-1064 Laser Head and Power Supply

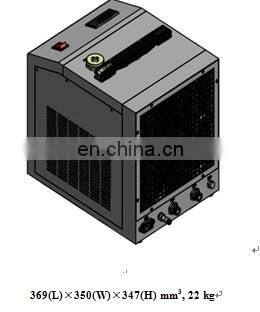

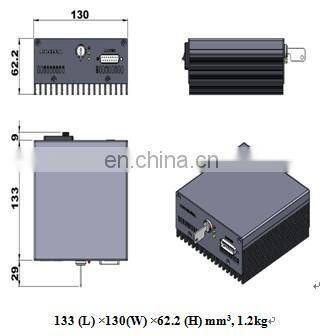

MSL-R-1064 Laser Head and Power Supply

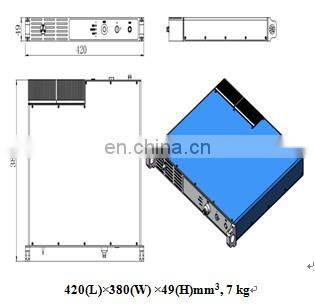

MSL-AO-1064 Laser Head and Power Supply

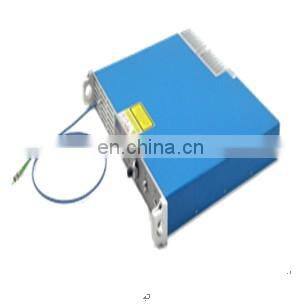

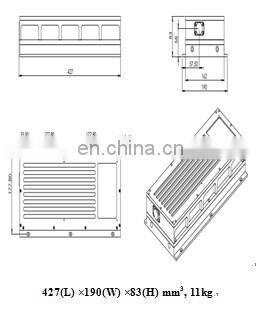

FL-1064-SF Laser Head and Power Supply

Customer Visit
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
