Double Disc Grinding Wheels
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MORESUPERHARD
Place of Origin:
China
Model Number:
1A2T D: 305mm - 1200mm X: 3mm - 10mm T: 50mm -100mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou
Delivery Detail:
7 days
Related Products
-
CBN Internal Grinding WheelUS$ 1 - 50MOQ: 1 Piece -
PCD PCBN CVD Tools Grinding WheelUS$ 1 - 50MOQ: 1 Piece
-
6A2 Resin Diamond Cup Grinding Wheel for CBN ToolsUS$ 1 - 50MOQ: 1 Piece
-
Metal Diamond Cup Wheel for PCD Tools Superfinish GrindingUS$ 1 - 50MOQ: 1 Piece
-
Peripheral Grinding of CBN Inserts - Vit Diamond WheelUS$ 1 - 50MOQ: 1 Piece
Brand Name
MORESUPERHARD
Place of Origin
China
Model Number
1A2T D: 305mm - 1200mm X: 3mm - 10mm T: 50mm -100mm
Double Disc Grinding Wheels
► Application: carbide, tungsten steel, ceramic , optical glass, sapphire glass, high speed steel, bearing steel, tool steel, stainless steel and cast iron, etc
► Bond: vitrified bond & resin bond
► Diameter: 300- 1200mm
► Provide matching dressing grinding wheel
►Diamond & cbn shapes: cylindrical, hexagonal, square, segmented
► Grinding machines: AM South Korea, Peter waters Germany, Stahli Switzerland, lapmaster and Koyo ...

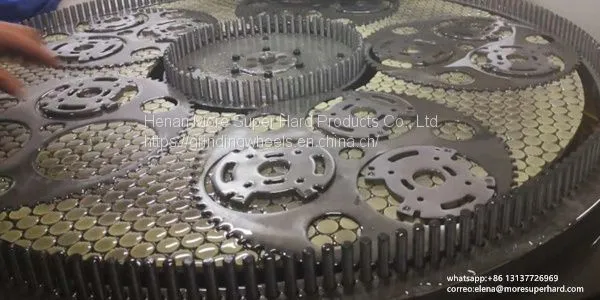

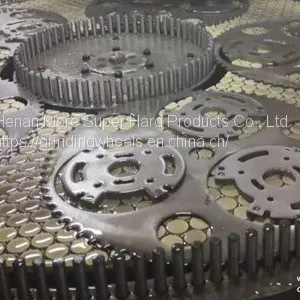

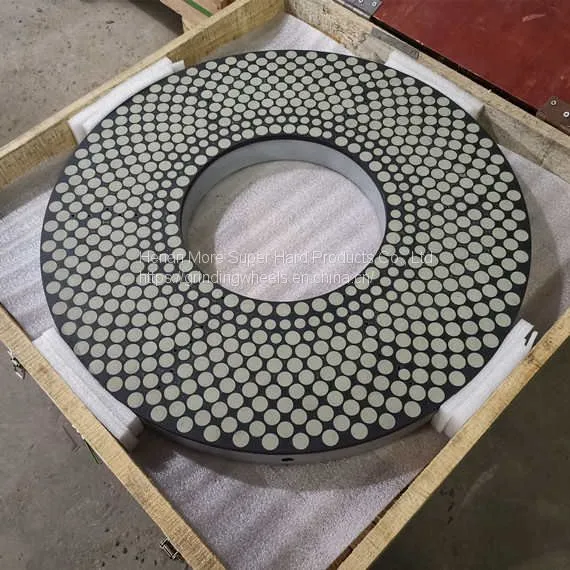

Double Disc Diamond & cBN Wheel End Surface

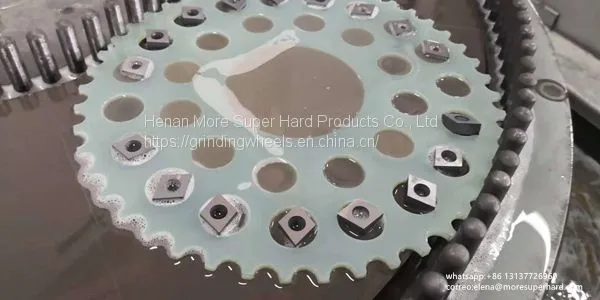

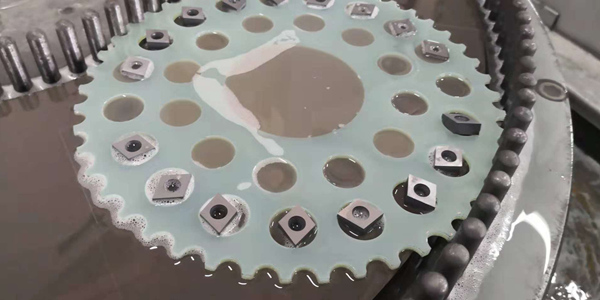

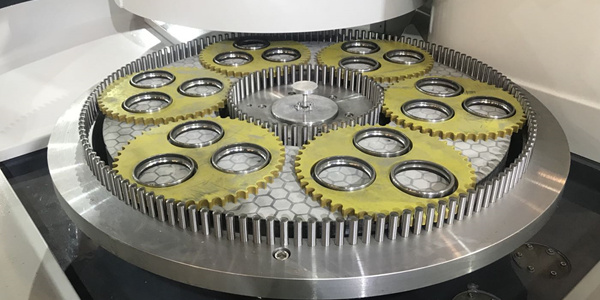

Provided a full range of double disc lapping service and solution
----- Double disc diamond & cbn wheels
----- Dressing stones
Applicable areas
♦ Hydraulic pneumatic components. vane pump, conversion valve, piston pump,fuel pump, hydraulic motor parts
♦ Compressor spare parts. air conditioner compressor vane, piston, Refrigerator compressor valve plate, cylinder block (grey cast iron or nodular cast iron), sleeve (alloy cast iron), slide (high speed steel)
♦ Engine parts. automobile fuel pump parts, booster pump parts,oil pump nozzle parts
♦ High precision shaft ,seal, watch parts, molds, carbide blade, ceramic valve core,magnetic materials,etc

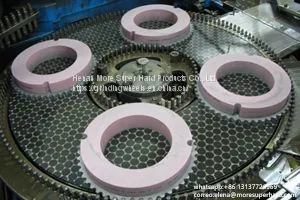

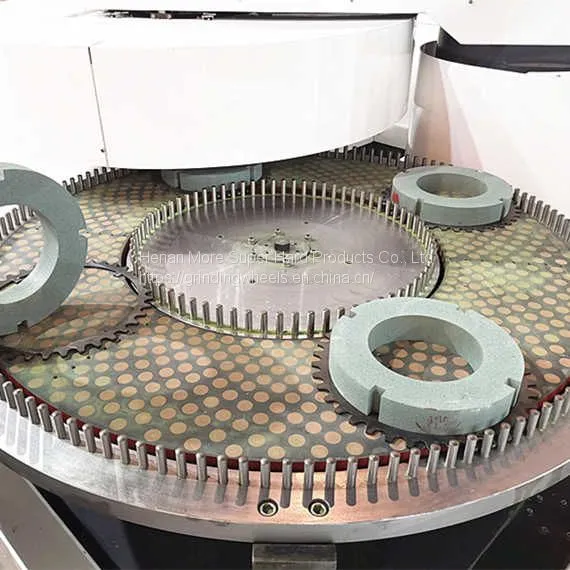

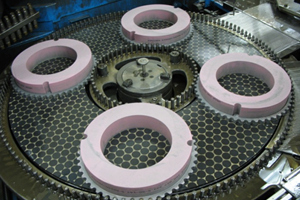

Matching dressing grinding wheel
The dressing wheels are used for dressing diamond and CBN wheels. According to the different particle size, accuracy of the diamond and CBN grinding disc to choose the dressing wheel, making dressing easier and more time saving.
----- Double disc diamond & cbn wheels
----- Dressing stones
Applicable areas
♦ Hydraulic pneumatic components. vane pump, conversion valve, piston pump,fuel pump, hydraulic motor parts
♦ Compressor spare parts. air conditioner compressor vane, piston, Refrigerator compressor valve plate, cylinder block (grey cast iron or nodular cast iron), sleeve (alloy cast iron), slide (high speed steel)
♦ Engine parts. automobile fuel pump parts, booster pump parts,oil pump nozzle parts
♦ High precision shaft ,seal, watch parts, molds, carbide blade, ceramic valve core,magnetic materials,etc
Matching dressing grinding wheel
The dressing wheels are used for dressing diamond and CBN wheels. According to the different particle size, accuracy of the diamond and CBN grinding disc to choose the dressing wheel, making dressing easier and more time saving.
The specification of double disc diamond & cbn wheel
| 1A2T | D: 305mm - 1200mm |
| X: 3mm - 10mm | |
| T: 50mm -100mm | |
| 6A2B | D: 380mm - 1200mm |
| W: 150mm - 400mm | |
| X: 3mm - 10mm | |
| Flatness:Durability: grinding HSS slide (25mm*25mm), the number of workpiece >= 1million grinding carbide blade, the number of workpiece >= 1million | |

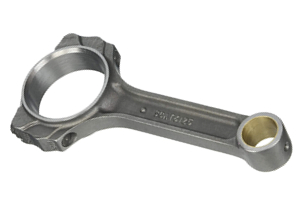

Case 1 Connecting Rod Surface Grinding
| Workpiece material | nodular cast iron (45#, 40Cr, 40CrMo) |
| Hardness | 210-280HB |
| grinding tolerance | Rough : 0.4 - 0.5 |
| Fine: 0.2 - 0.4 | |
| surface finish | Ra 0.8 |
| Size of grinding wheel | 915* 85 * 304.8 |
| Grinding wheel speed | 35m/s |
| No burns or burrs | |
