Cylindrical Diamond Grinding Wheel for PDC

Cylindrical Diamond Wheel for PDC Cutter / PDC Drill Bits Grinding

  "Good news the third trial wheel performed successfully we completed four blocks with 2.5mm removal of Diamond cutters, eight grinding passes in total, the operator was more than happy with the quality of the finish”. -----from UK client


  " It was very similar to 3M's grinding wheel but our price is a little better so it makes better sense". -----from UK client

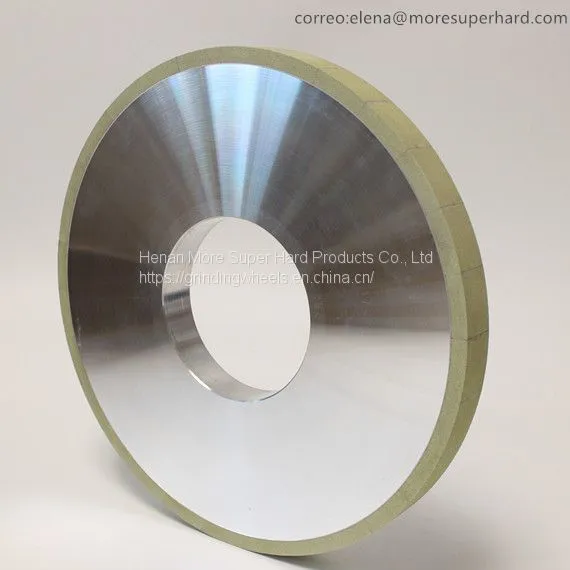

Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter

Vitrified diamond Cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved

Specification Of Cylindrical Diamond Wheel

Model	D (mm)	T (mm)	H (mm)	X (mm)
1A1	350	40	127	10
	400	40 50	203	10
	400	40 50	305	10

Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / Drill bits



Diameter (mm)	Diameter (inch)	H (mm)	T (mm)	X (mm)
400	16 inch	127	25, 50	10, 25
500	20 inch	127, 203.2	25, 50	10, 25
600	24 inch	254	25, 50	10, 16, 25
750	30 inch	304.8	50	10
914.4	36 inch	304.8	25, 50	10, 25
1100	43 inch	304.8	50	10
Other specification can be made according to customer requirement Email:info@moresuperhard.com

Centerless Grinding Wheel for Precision Grinding PDC (polycrystalline diamond compacts)

Model	D (mm)	T (mm)	H (mm)	X (mm)
1A1 6A1 9A1	300	150	120	5, 10
	350	125	127	5, 10
	400	150	203	5, 10
	455	205	228.6	5, 10
	500	150	305	5, 10
	650	380
Round run-out of grinding wheel ≤0.02mm Straightness  ≤ 0.02 mm
