300 / 500V 2 Core Copper or Aluminum Wire 2.5mm Flat Wire Cable
US$ 8 - 20
/ Roll
5 Rolls(Min. Order)
- QINGDAO SHANGHAI TIANJIN
- T/T Credit Card
You May Like
-
High Quality 2.5mm Pvc Insulated Copper Wire Electric Wire
-
Resistance Heating Flexible Electrical Wiring 2 Core Wire
-
12 Gauge Thhn Flexible House Wiring Aluminium Copper PVC Electrical Wires Cable
-
Manufacturer 1.5sq mm Copper Core Pvc Insulation Flexible Wire
-
25mm Earth Grounding Cable Copper Ground Cable Pvc Cable
-
Flexible Parallel Wire Stranded/solid Copper Cable 2 Core Speaker Cable
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | H03VVH2-F H05VVH2-F | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description
Product Description
Product feature of 300 / 500 V 2 core copper or aluminum 2.5mm flat wire cable:
Rated voltage: 300/300V 300 / 500v
Conductor: BS 6360 Class 5,stranded, annealed copper wire
Insulation: BS 7655TII PVC Compound
Insulation Color: Red, Yellow, blue, black, green, white, purple, grey, orange, pink
Operating temperature: 0 to 70 degrees C
Min bending radius: 6xoverall insulated diameter
Standard: BS 6500
Code: H03VVH2-F, H05VVH2-F
Nominal cross-sectional area mm2 | Conductor (No./mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Max Overall Diameter of Cable (mm) | Mass of wire (kg/km) | |||||
H03VVH2-F | ||||||||||
0.5 | 2x16/0.2 | 0.5 | 0.6 | 3.2X5.2 | 32 | |||||
0.75 | 2X24/0.2 | 0.5 | 0.6 | 3.4X5.6 | 35 | |||||
H05VVH2-F | ||||||||||
0.5 | 2x16/0.2 | 0.6 | 0.8 | 4.2x6.8 | 48 | |||||
0.75 | 2x24/0.2 | 0.6 | 0.8 | 4.4x7.2 | 57 | |||||

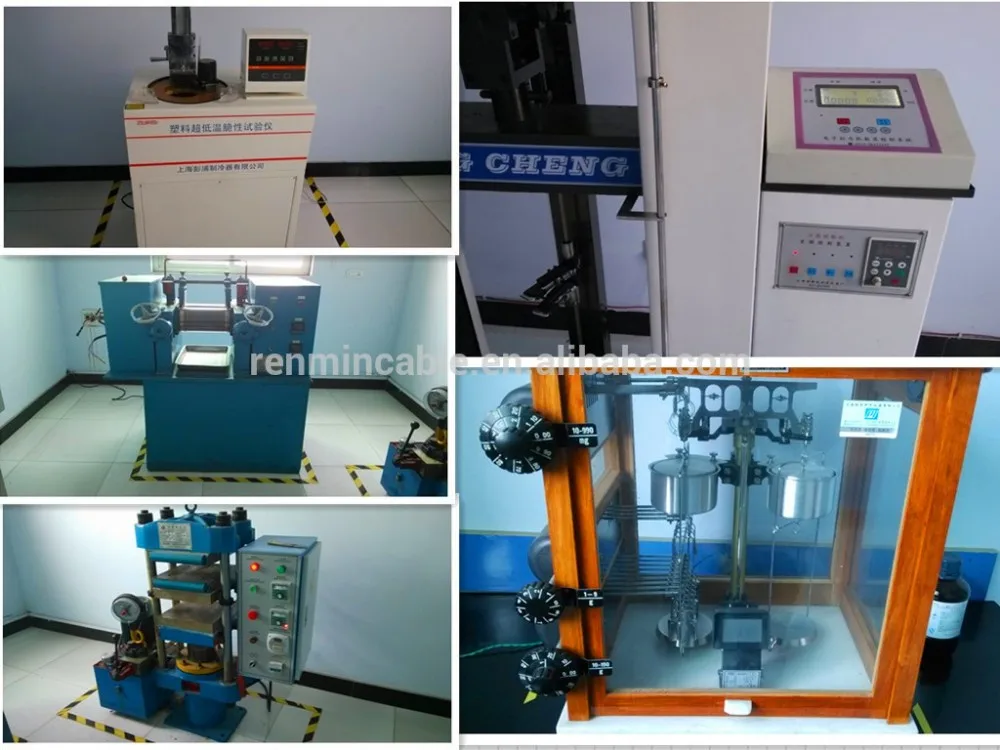

Testing machines
