Pure Bare Copper Wire 99.99% Copper Conductor Wire

Description:

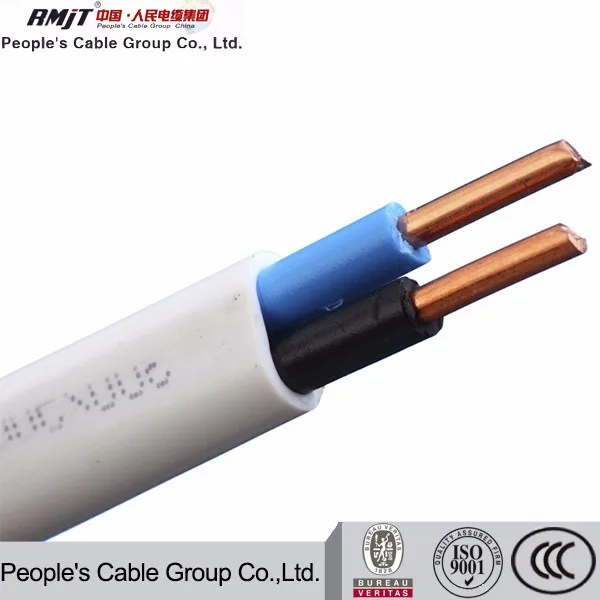

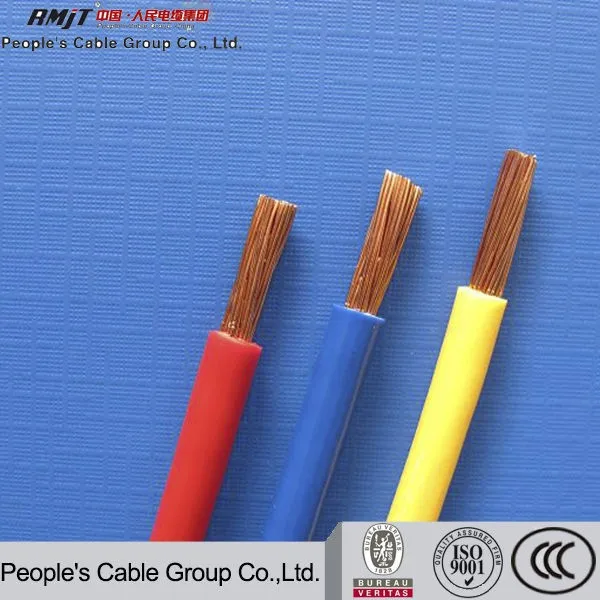

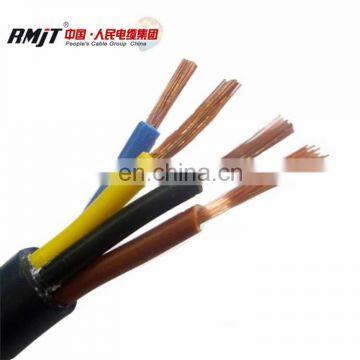

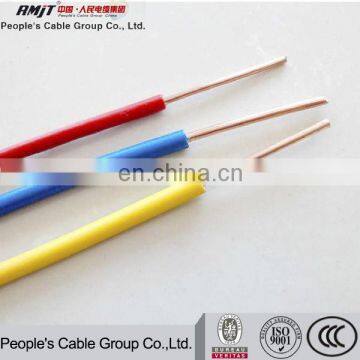

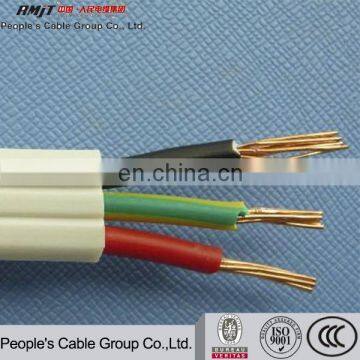

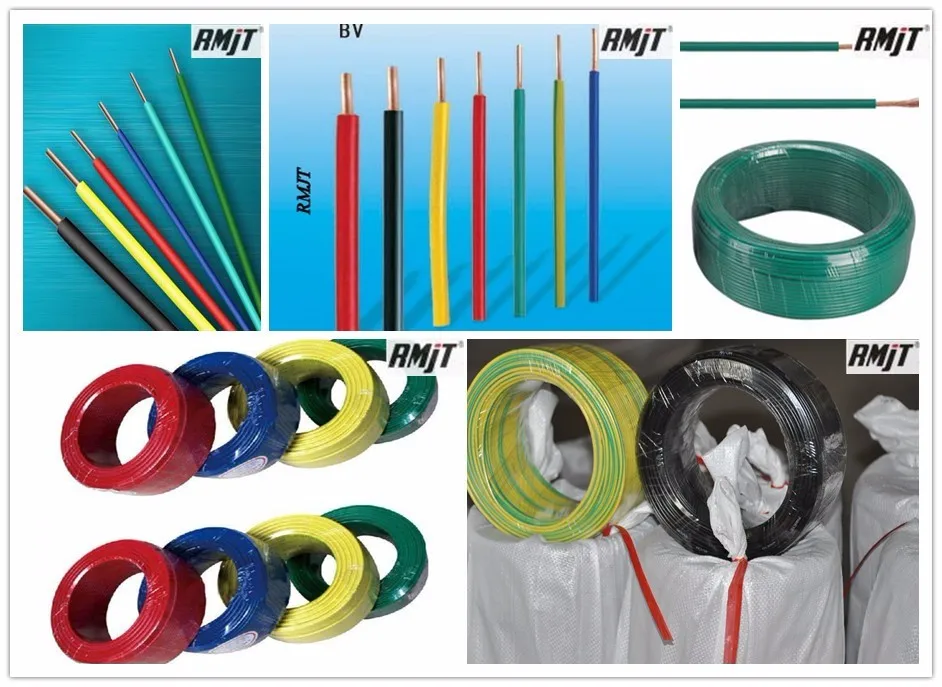

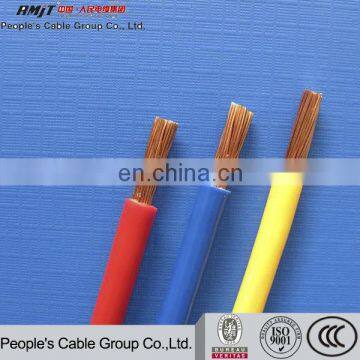

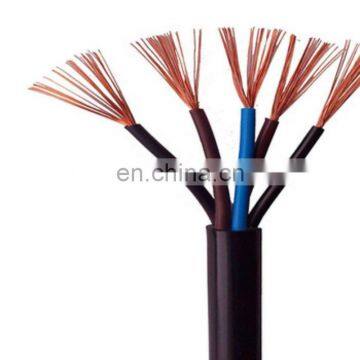

Electric wire: Copper or aluminum conductor, pvc insulated wire
Electric wire: THW wire, the cable, H07V-U, H05V-U,H07V-R
The conductor type of electric wire: Solid core and stranded core
Cores of electric wire: single core, two cores, three cores
Section area of electric wire:

300/500v:0.5mm2,0.75mm2m1.0mm2
450/750v 1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,
120mm2,150mm2,185mm2,240mm2,300mm2m400mm2
300/500v; 2x0.75, 2x1.0, 2x1.5, 2x2.5, 2x4, 5x6, 2x10, 3x0.75, 3x1, 3x1.5, 3x2.5, 3x4, 3x6, 3x10mm2
Application:

PVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or less
Specification:
1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we

will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Low voltage 2.5mm BVR electrical power cable price

60227 IEC 53 rvv electrical wire cable

Flexible 2.5mm electric cable

For more information, please kindly contact us freely!
Welcome your inquiry of the flexible cable, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
