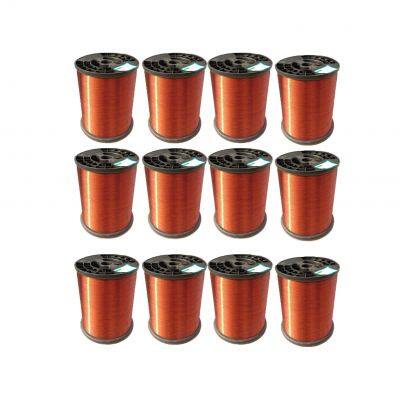

Manufacturer Wholesales ISO9001 Certification Magnet Wire Enamel Aluminium Winding Electrical Wires AWG4-32
US$ 4.40
500 - 4999 Kilograms
US$ 3.98
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide,polyamide-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWG/SWG IEC-60317 Electric Motor Winding Magnet Wire Enamel Aluminium Winding Electrical WiresUS$ 3.98 - 4.50MOQ: 500 Kilograms -
Super Grade 240 Class Magnet Wire Enamel Aluminium Winding 0.85, 0.9, 1.0,1.2 mm for Audio Coil WindingUS$ 15.50 - 16.50MOQ: 50 Kilograms
-
Manufacturer Wholesale Prices AWG/SWG UL Certified Enameled Aluminum Flat Wire Magnet Wire Electrical WiresUS$ 3.99 - 4.45MOQ: 500 Kilograms
-
ISO9001 REACH Certificated Electrical Wires Enameled Aluminium Winding Wire 130/155/180/200/220 ClassUS$ 3.99 - 4.50MOQ: 500 Kilograms
-
AWG4-32 Magnet Wire Electrical Insulated Wire Winding Enameled Aluminum for Electrical ComponentsUS$ 3.95 - 4.30MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EI/AIW-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ROHS REACH ISO9001 UL
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg
Product Name: 2020 PT200 spool EI/AIW 200 class enameled aluminum wire for transformer
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Advantage
Techinical Data
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
