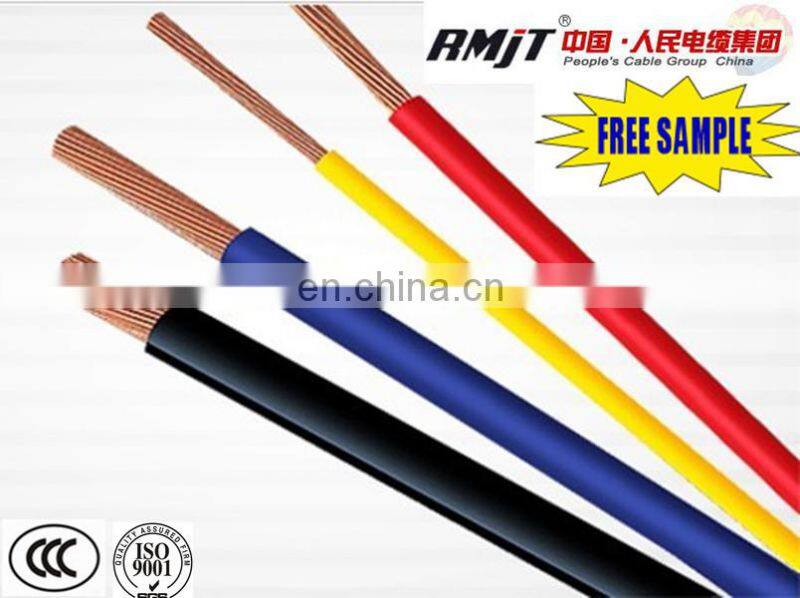

7*29 copper flexible electrical wire

 1.Application of electrical wire

 The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.

2.Construction of electrical wire

(1).Conductor: bare/tinned copper,or Aluminum.

(2).Insulation:  PVC rated at 70°C

(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement.

(4).Outer sheath: PVC tapes ST2 to IEC.

3. service performance of electrical wire

1). Rated voltage: 450/750V

(2). Long-term working temperature: not be higher than 70°C

(3). When laying the cable, the ambient temperature should not lower than 0°C

(4). Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as  cable overall diameter>25mm.

4 Model and Name

5 Specification Size and Technical Data

Commen wire

 Flexible wire

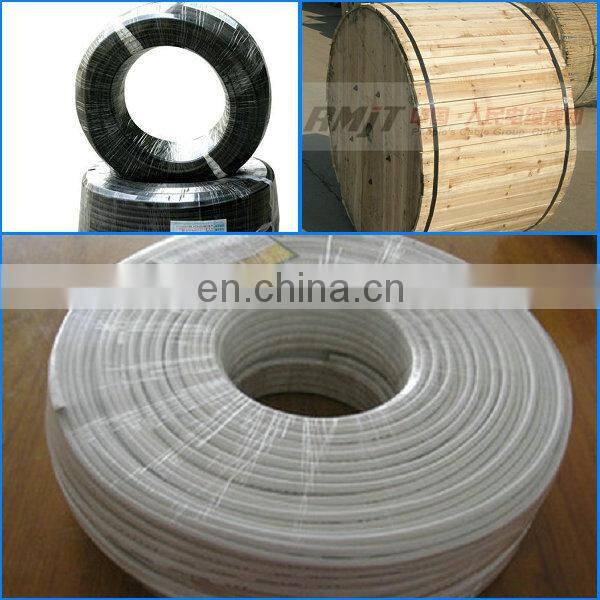

Wooden or iron drum or as customer's requirement

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts
