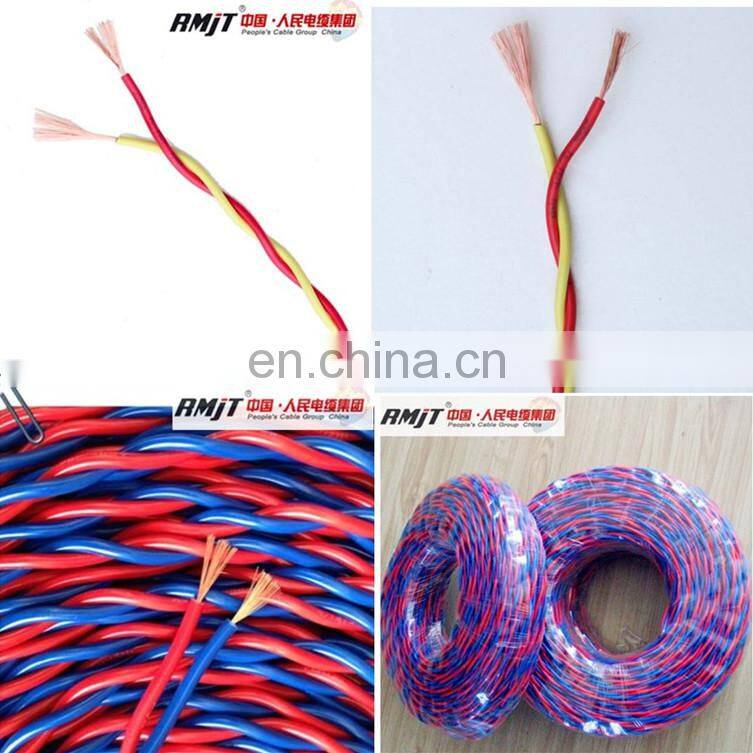

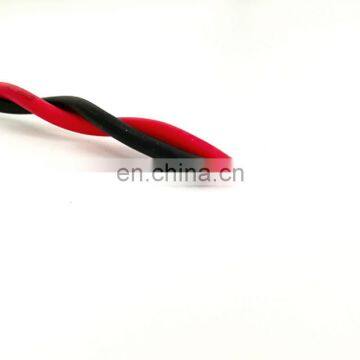

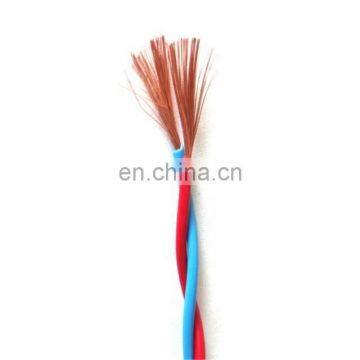

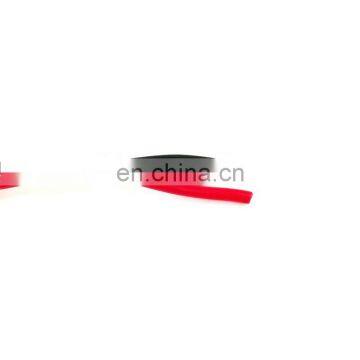

2x0.75mm twisted pair cable manufacturers
1.Standard:
- JB/T8734-1998,we also custom made in accord to British,German or American standard
2.Application:
- Apply to building intelligent alarm system of multi-core control, Building intercom system, three tables automatic reading system,electric appliance internal control,control meter of computer,electronic equipment and automatic device etc.

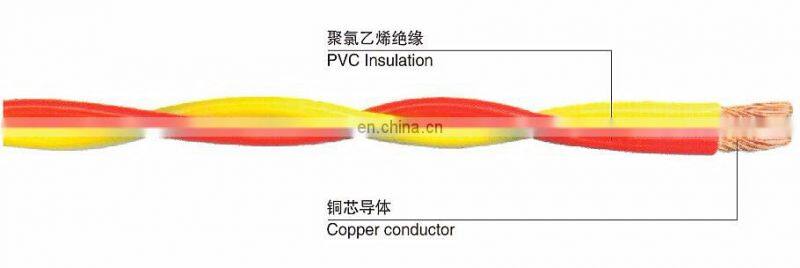

3.Structure:
- conductor: two cores by multi copper wire or tinned copper wire twisted
- insulation:PVC
4.Operating character:
- a.rating voltage:300V
- b.allows cable conductor long-term maximum operating temperature is 700C
- c.Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available
We can also customize the electrical wire and cable as your request! You can decide the core count and cross seaction of the conductor,as well as the jacket and insulation.

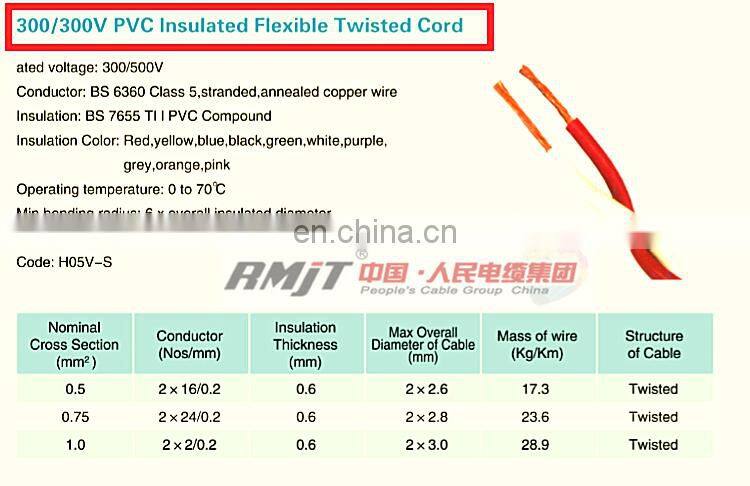

5.Data
|
Conductor No. |
Copper conductor (mm) |
Nominal thickness of Insulation |
Max.DC conductor resistance at 20 (Ω/km) |
RVS |
2x0.5 |
28/0.15 |
0.8 |
39.0 |
2x0.75 |
42/0.15 |
0.8 |
26.0 |
|
2x1 |
32/0.20 |
0.8 |
19.5 |
|
2x1.5 |
48/0.20 |
0.8 |
13.3 |
|
2x2.5 |
77/0.20 |
0.8 |
7.98 |
le
1.What are the lead times and minimum order quantities?
The typical lead time for standard circuits is two weeks. Special assemblies requiring custom tooling may take longer, although our in house tool group makes us the fastest in the industry. There are no minimum order quantities. We’ll support your project from prototype to mass production.
2.What lengths are available?
It can be made to any length from 12 mm to 100 meters. Since cables are made to order, specify the exact length you need.
3.Can I have a sample?
4:What is your main products?
The flexible cable & solid cable, power cable, control cable is our main products.
5: Are you a trading company or manufacture?
RMJT is a professional manufacturer in Henan, China.
6.How is the payment?
T/T, L/C is accepted.flexibl
