Home > Products > Enamelled Aluminum round wire > Factory Hot Sales AWG4-28 Electrical Wires Motor Winding Enamel Aluminium Winding Magnet Wire IEC-60317

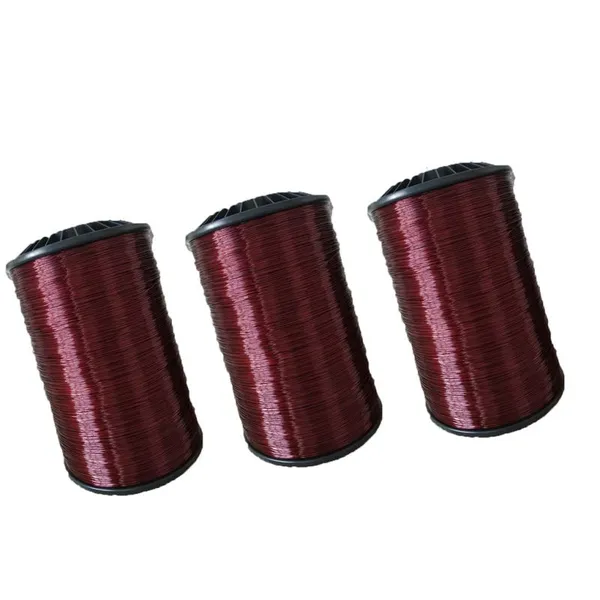

Factory Hot Sales AWG4-28 Electrical Wires Motor Winding Enamel Aluminium Winding Magnet Wire IEC-60317
500 - 4999 Kilograms
≥5000 Kilograms
You May Like
-
Top Grade AWG4-28 Magnet Wire UL Certified Enameled Aluminum Flat Wire Ceiling Fan Electrical Wire Manufacturer
-
High Temperature Resistant Electrical Wires Round Aluminum Enameled Magnet Wire for Motor Winding and Transformer
-
Electrical Wires Motor Winding Magnet Wire Aluminum Enameled Insulated AWG 12 13 14 for Transformer
-
ISO Certification Factory Top Quality Electrical Wires Enameled Round Aluminum Magnet Wire for Motor Winding
-
Manufacturer Wholesale Insulated Coating Wire Enameled Aluminum Round Wire Ceiling Fan Electrical Wire Prices AWG 4-28
-
180 Grade Magnet Wire Enameled Aluminum Round Wire With ISO Certification
Product Details
| Type | Insulated | |||
| Conductor Material | Aluminum | Conductor Type | Solid | |
| Model Number | EI/AIW-200 | Brand Name | YONGDONG | |
| Place of Origin | Shandong, China(Mainland) | Diameter: | AWG/SWG | |
| Style: | Enameled Aluminum Wire | Shape: | Round | |
| Heat-resisting class: | C class | Insulation Material: | polyester-imide, Polyamide imide | |
| Production Range: | 0.20mm-5.00mm | Certification: | ROHS REACH ISO9001 UL | |
| Bobbin: | PT25 PT30 PT60 PT200 PT270 | Standard | IEC NEMA GB JIS | |
| Conductor | Aluminum |
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg





Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |










Company Profile
Shandong Huilong Electrical Material Co.,ltd. was founded in 1970. The factory is located in the north area of Tianqu Industrial Park, Dezhou City, Shandong Province. It has a registered capital of 3 million RMB. It covers an area of 23,310 square meters and it is a modern enterprise with a history of more than 50 years of professional enameled wire production. Welcome to visit our factory Shandong Huilong Electrical Material Co.,ltd. We renew our machinery park and our quality control laboratory with up-to-date technologies and increase our activity across international markets day by day. The company's products are widely used in Photovoltaic inverters,UPS inverters,power transformers, new energy electric vehicles, aerospace, Speaker coil,welding machines,instrumentation,household appliances,refrigeration compressors,deflection coils, high-frequency transformers,motors,electronics, power tools and other fields. The company's products are all based on IEC-60317, GB/T, JIS and NEMA production standards. With the in-depth development of global economic integration, in order to cope with the new opportunities and challenges brought by the international market, the company adheres to the business philosophy of “survive by quality and develop by credit”. The annual production capacity is up to 12,000 tons under full load. Shandong Huilong Electrical Material Co.,ltd. Our products have been exported to more than 50 countries in Europe, North America,South America,Africa, the Middle East and other regions. We offer customer specific solutions, tailor-made to suit every possible need. Whether standard or special, all our products are sustainably manufactured in a high-precision process using state-of-the-art technology. Please check out our product guide for more information!
