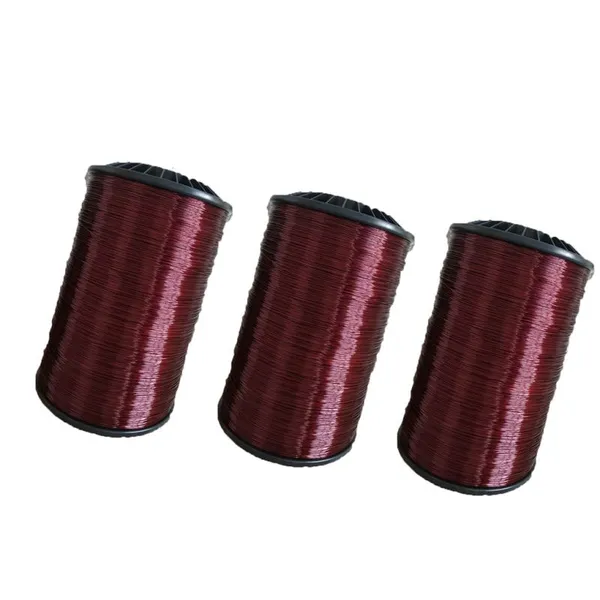

ISO9001 REACH Certificated Electrical Wires Enameled Aluminium Winding Wire 130/155/180/200/220 Class
US$ 4.50
500 - 4999 Kilograms
US$ 3.99
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWG4-32 Magnet Wire Electrical Insulated Wire Winding Enameled Aluminum for Electrical ComponentsUS$ 3.95 - 4.30MOQ: 500 Kilograms -
Factory Hot Sales AWG4-28 Electrical Wires Motor Winding Enamel Aluminium Winding Magnet Wire IEC-60317US$ 3.95 - 4.40MOQ: 500 Kilograms
-
Top Grade AWG4-28 Magnet Wire UL Certified Enameled Aluminum Flat Wire Ceiling Fan Electrical Wire ManufacturerUS$ 3.98 - 4.39MOQ: 500 Kilograms
-
High Temperature Resistant Electrical Wires Round Aluminum Enameled Magnet Wire for Motor Winding and TransformerUS$ 4.08 - 4.48MOQ: 500 Kilograms
-
Electrical Wires Motor Winding Magnet Wire Aluminum Enameled Insulated AWG 12 13 14 for TransformerUS$ 4.01 - 4.38MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG Gauge
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.56mm-5.60mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.56mm-5.60mm (3awg-23awg)
Product Name:High temperature 180 grade PEW aluminum Enameled Round Winding Wires for motor
PT200 410*410*660 mm 65-75 KG AI/EIW 200
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.56-5.60 |
0.56-5.60 |
0.56-5.60 |
0.56-5.60 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
