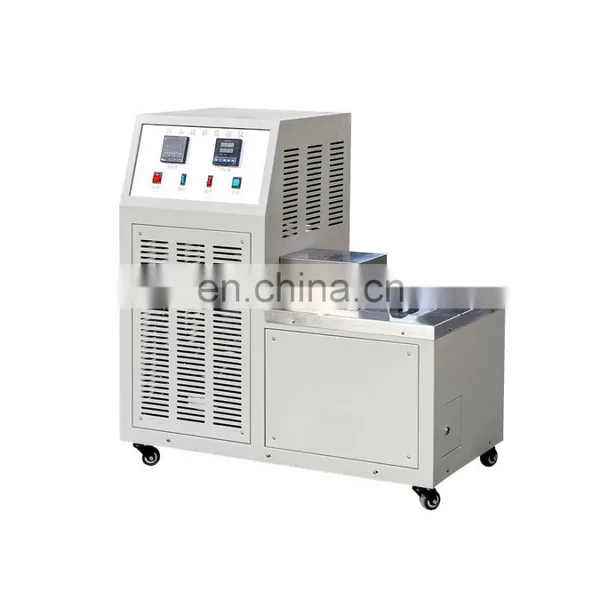

DWC -100 30~-100 Precise Low Temperature Thermostat
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1. Application
DWC -100 30~-100 Precise Low Temperature Thermostat is designed according to Charpy notch Impact Test Method for Metal Material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specime
2.Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
3.Features:
3.1Imported compressor, DANFUS valve, imported evaporation-condensation machine;
3.2Controlled by intellligent instrument, digital presentation temperature value, automatic control temperature, automatic time and alarm.
3.3high security, refrigerate fast, large volume
4.Main Specifications:
Model | DWC-40 | DWC-60 | DWC-80
| DWC-100 |
Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° |
Temperature Control Accuracy | ±0.5° | |||
Temperature dropping speed
| +30°C~0°C 1.2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min |
0°c~-20°C 0.8°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min | |
-20°C~-40°C 0.5°C/min | -20°C~-40°C 1.0°C/min | -20°C~-60°C 1.0°C/min | -20°C~-40°C 1.0°C/min | |
-40°C~-60°C 0.7°C/min | -60°C~-80°C 0.7°C/min | -60°C~-100°C 0.7°C/min | ||
Cold Room Volume | 150×505×240mm | |||
Dimensions | 900×505×850 mm
| 900×505×850 mm
| 900×505×850 mm
| 1500×1200×1200 mm
|
Box Material | Steel Spray | |||
Loading the number of samples | >60 | >60 | >60 | >200 |
Mode of refrigeration | Compressor refrigeration | |||
Cooling Medium | Ethanol or other unfrozen liquid | |||
Power | 7Kw | 7Kw | 7Kw | 7Kw |
DWC-100 30~-100 Precise Low Temperature Thermostat
Impact testing machine
One year warranty for the whole machine without the consumable parts.
A full range of services making customer satisfaction reflect our professional:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs.
After-sale, we could supply door to door installation and training services according to customer requirements . Engineers are available for overseas services.
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period.
Welcome to contact Sunny for more informations: Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd Email: sunny at
