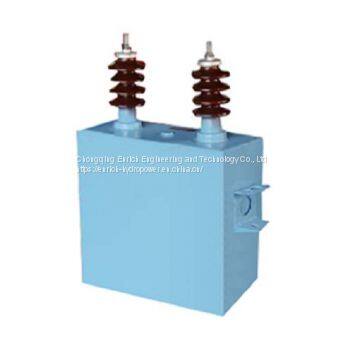

AFM,AAM,AWM,AFF high voltage AC filter capacitor
Model description:
AF(A,W)M(F)12√3-100-1-W
A: AC filter capacitor
F(A,W): Liquid dielectric code
F: Impregnant is PXE
A: Impregnant is Benzyl toluene
W: Impregnant is Alkyl benzene(AB)
M(F): Solid dielectric code
M: Complete film medium
F: Composite medium of Polypropylene film and capacitor paper
12√3: Rated voltage(kV)
100: Rated capacity (kVar)
1: Number of phase, 1-single phase, 3-three phases
W: Outdoor
This product is mainly used as filter components, connected with other devices (such as reactors…) to form AC filter capacitors. It is used in electrical equipment with harmonics to prevent harmonics from polluting the power grid or connected to power systems to provide a low-impedance channel for a harmonic current to achieve the goal of reducing the harmonic level of the power grid and improving the power factor of the system.
Main technical parameters:
1.Rated voltage:1.2~12kv.
2.Rated frequency:50Hz…
3.Capacitance deviation:-5%~+10%.
4.Tangent of dielectric loss angle tanδ:≤ 0.0008 for inner fuse products, ≤ 0.0005 for products without inner fuse.
5.Steady state over voltage:1.10Un.
6.Steady state over current: The maximum allowable over current can be determined by the user and the manufacturer together.
Main features:
1. Small size, light weight and good specific characteristics.
2. Low loss, low temperature rise and long life.
3. High-performance insulating oil(benzyl toluene) enables the product to run at minus 40 ° C.
Conditions of use:
1. Ambient air temperature: -40~+ 45 ℃.
2. Altitude: below 2000m.
3. Environmental conditions: no harmful gases and steam, no conductive dust and no severe vibration.
AFM0.48-40-1
AFM0.525-15-3
AFM0.525-40-1W
AFM0.525-50-1
AFM0.525-56-1
AFM0.525-70-1
AFM0.525-100-1
AFM4.2-100-1W
AFM4.4-80-1
AFM4.6-30-1W
AFM6.6/√3-50-1
AFM6.6/√3 -100-1
AFM7-50-1W
AFM7-250-1
AFM7.2/√3 -200-1W
AFM7.37-269-1W
AFM7.6-150-1W
AFM7.6-200-1W
AFM7.6/√3 -120-1W
AFM7.6/√3 -150-1W
AFM12/ √3-50-1W
AFM12/√3 -100-1W
AFM12/√3 -200-1W
AFM12/√3 -250-1W
AFM14/√3 -50-1
AFM1.2-100-1W
AFM4-100-1W
AFM4-150-1W
AFM4-250-1W
AFM4.2-100-1W
AFM4.4-100-1W
AFM4.4-244-1W
AFM4.4-405-1W
AFM4.5-140-1W
AFM4.5-182-1W
AFM4.5-200-1W
AFM4.5-210-1W
AFM4.5-210-1W
AFM4.7-250-1W
AFM5-100-1W
AFM6.3-225-1W
AFM6.3-250-1W
AFM6.4-200-1W
AFM6.4-300-1W
AFM6.5-80-1W
AFM6.5-200-1W
AFM6.5-200-1W
AFM6.6-150-1W
AFM6.6-150-1W
AFMr6.8-300-1W
AFMr6.8-310-1W
AFMr6.8-334-1W
AFMr6.9-100-1W
AFMr6.8-117-1W
AFMr6.8-150-1W
AFMr6.9-300-1W
AFM7-33.3-1W
AFM7-50-1W
AFM7-100-1W
AFM7-125-1W
AFM7-150-1W
AFM7-166.7-1W
AFMr6.8-300-1W
AFM7-250-1W
AFMr7-300-1W
AFMr7-334-1W
AFM7.250-1W
AFM7.2-60-1W
AFM7.2-100-1W
AFM7.2-125-1W
AFM7.2-150-1W
AFM7.2-166.7-1W
AFM7.2-175-1W
AFM7.2-200-1W
AFM7.2-233.3-1W
AFM7.2-250-1W
AFMr7.2-300-1W
AFMr7.2-310-1W
AFMr7.2-334-1W
AFMr7.2-334-1W
AFMr7.3-200-1W
AFMr7.4-200-1W
AFMr7.4-350-1W
AFMr7.5-100-1W
AFM7.5-125-1W
AFM7.5-150-1W
AFM7.5-200-1W
AFM7.5-250-1W
AFM7.5-300-1W
AFMr7.6-310-1W
AFMr7.8-50-1W
AFM7.9-80-1W
AFM7.9-285-1W
AFMr8-100-1W
AFM8-150-1W
AFM8-200-1W
AFM8.2-100-1W
AFM8.2-192-1W
AFM8.28-306.4-1W
AFM8.4-148.1-1W
AFM8.4-160-1W
AFM8.4-317.4-1W
AFM8.7-100-1W
AFM8.8-200-1W
AFM9-200-1W
AFM9-364.45-1W
AFM10-100-1W
AFM10-120-1W
AFM10-200-1W
AFM10-227-1W
AFM12-100-1W
AFM12-150-1W
AFM12-200-1W
AFM12-300-1W
AFM12.105-336.6-1W
AFM12.2-334-1W
AFM12.6-200-1W
AFM12.8-100-1W
AFM12.8-200-1W
AFM13-200-1W
AFM13.3-200-1W
AFM13.1-317.8-1W
AFM13.715-340.94-1W
AFM13.9-334-1W
AFM14.1-334-1W
AFM15.575-300-1W
Customized products are available according to customer’s requirements.
