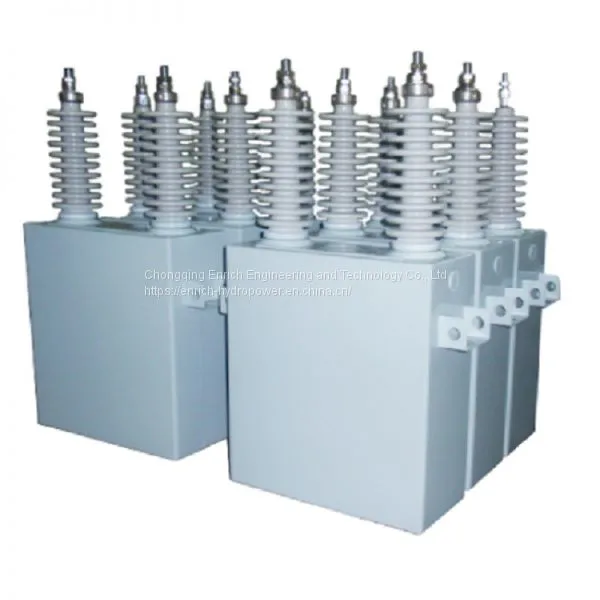

BAM,BFM,BWF,BFF high voltage shunt capacitor

Model description:

BF(W,A)M(F)11/√3-100-1(3)(G)W

B: Shunt capacitor

F(W,A): Liquid dielectric code

F: Impregnant is PXE

(W): Impregnant is Alkyl benzene(AB)

(A): Impregnant is Benzyl toluene

M(F): Solid dielectric code

M: Complete film medium

(F): Composite medium of Polypropylene film and capacitor paper

11/√3: Rated voltage(kV)

100: Rated output (kVar)

1(3): Number of phase, 1-single phase, 3-three phases

(G): Plateau area

W: Outdoor

BAM,BFM,BWF,BFF high voltage shunt capacitors are mainly applied to 50Hz or 60Hz AC electric power system to improve the power factor, the performance meets Chinese national standard GB 3983.2-89and international standard IEC60871-1.

Conditions of use:

1.Altitude≤1000m, ambient temperature-40℃ ~-40℃.

2. No severe mechanical vibration, no harmful gas and steam, no conductive and explosive dust at the installation site.

3. Continuous operation voltage 1.0Un, long-term over-voltage maximum value does not exceed 1.1Un.

4. Steady-state over current (including harmonic current) does not exceed 1.43In.

5. Maximum allowable capacity does not exceed 1.35Qn.

BAM0.75-18-1W  BAM0.75-20-1W  BAM0.75-25-1W  BAM0.75-30-1W

BAM1.05-30-1W  BAM1.05-50-1W  BAM1.05-60-1W  BAM1.05-100-1W

BAM3.15-100-1W  BAM3.15-200-1W

BAM6.3-12-1W  BAM6.3-14-1W  BAM6.3-16-1W  BAM6.3-18-1W

BAM6.3-30-1W  BAM6.3-40-1W  BAM6.3-50-1W  BAM6.3-80-1W

BAM6.3-100-1W  BAM6.3-150-1W  BAM6.3-200-1W  BAM6.3-334-1W

BAM6.6/√3-50-1W  BAM6.6/√3-80-1W  BAM6.6/√3-100-1W

BAM6.6/√3-150-1W  BAM6.6/√3-200-1W  BAM6.6/√3-334-1W

BFM6.6-30-1W  BFM6.6-50-1W  BFM6.6-100-1W  BFM6.6-150-1W

BFM6.6-200-1W  BFM6.6-334-1W

BAM10.5-12-1W  BAM10.5-14-1W  BAM10.5-16-1W  BAM10.5-18-1W

BAM10.5-30-1W  BAM10.5-40-1W  BAM10.5-50-1W  BAM10.5-80-1W

BAM10.5-100-1W  BAM10.5-150-1W  BAM10.5-200-1W  BAM10.5-334-1W

BFM11/√3-12-1W  BFM11/√3-14-1W  BFM11/√3-16-1W  BFM11/√3-18-1W

BFM11/√3-30-1W  BFM11/√3-40-1W  BFM11/√3-50-1W  BFM11/√3-80-1W

BFM11/√3-100-1W  BFM11/√3-150-1W  BFM11/√3-200-1W

BFM11/√3-334-1W

BFM11-16-1W  BFM11-18-1W  BFM11-30-1W  BFM11-40-1W  BFM11-50-1W  BFM11-100-1W  BFM11-200-1W  BFM11-334-1W

BFM12-30-1W  BFM12-40-1W  BFM12-50-1W  BFM12-80-1W

BFM12-100-1W  BFM12-150-1W  BFM12-200-1W  BFM12-300-1W

BFM12-334-1W

BFM6.3-16-1GW  BFM6.3-18-1GW  BFM6.3-30-1GW  BFM6.3-40-1GW

BFM6.3-50-1GW  BFM6.3-100-1GW  BFM6.3-334-1GW

BFM10.5-50-1GW  BFM10.5-100-1GW  BFM10.5-334-1GW

BFM11/√3-50-1GW  BFM11/√3-100-1GW  BFM11/√3-200-1GW

BFM11/√3-334-1GW

BFM11-30-1GW  BFM11-50-1GW  BFM11-100-1GW

Customized products are available according to customer’s requirements.
