Brand Name
HAIYING
Place of Origin
China
Model Number
PET

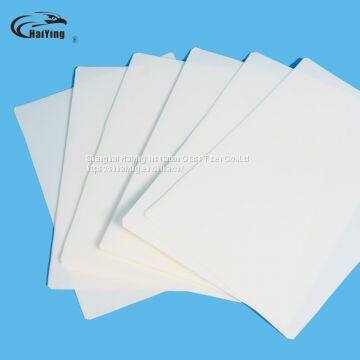

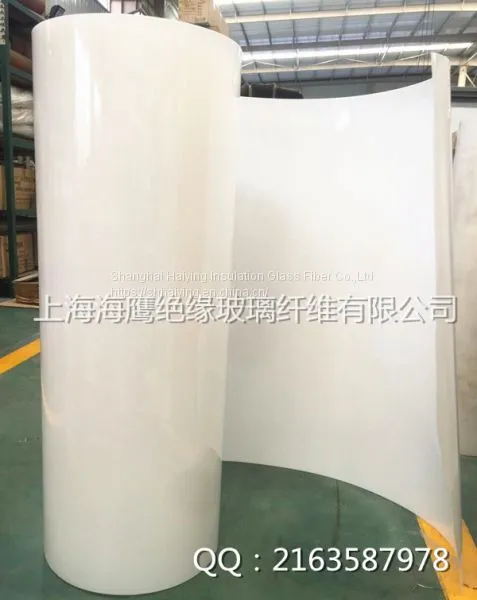

Multi-Layer Laminated PET Film
Structure:
Multi-layer laminated PET film is a high temperature laminated insulation, composed by two layers or three layers of polyester (Mylar) film.
Application:
It can be used in ground, phase and inter-winding insulation for dry-type transformer; slot, phase and wedge insulation for electric motor and generator.
Supply:
Inner core: 76 mm.
Normal thickness: 0.5 mm, 1.1 mm,
Standard width: 1000 mm, 1200mm.
Package: roll package.
Color: milky white
Storage:
We recommend to storage in dry atmosphere with no dust.
Technical Data:
| Properties | Units | Value | |
| Standard Thickness | mm | 0.5 | 1.1 |
| Allowable Tolerance | - | ±10% | ±10% |
| Number of Layers | - | 2 layers | 3 layers |
| PET film thickness | - | 0.25mm | 0.35mm |
| Weight/M2 | g/ M2 | 700 | 1500 |
| Breakdown Voltage | KV | 25 | 57 |
| Appearance | The Surface is Smooth, no bubble. | ||
| Thermal Class | B class | ||
| Bonding Strength ( 155±2ºC 10minutes) | No delamination, No Bubble | ||
