Help CenterNon Alkali Glass Fiber Tape for Rotor and Motor Banding
Related Products
-
H Class Glass Cloth Adhesive Tape Used for Multual Inductor/Motor/TransformerUS$ 2.9 - 10MOQ: 500 Rolls -
Polyester Resin Impregnated Glass Fiber Banding TapesUS$ 0.08 - 0.3MOQ: 5000 Meters
-
Polyester Heat Shrink Tape for Transformer and Motor BindingUS$ 0.03 - 0.2MOQ: 10000 Meters
-
Epoxy Resin Impregnated Web Fiberglass Banding TapeUS$ 0.05 - 0.3MOQ: 10000 Meters
-
DMD-Dacron Fabric/Polyester Film/Dacron FabricUS$ 3.8 - 4.8MOQ: 500 Kilograms

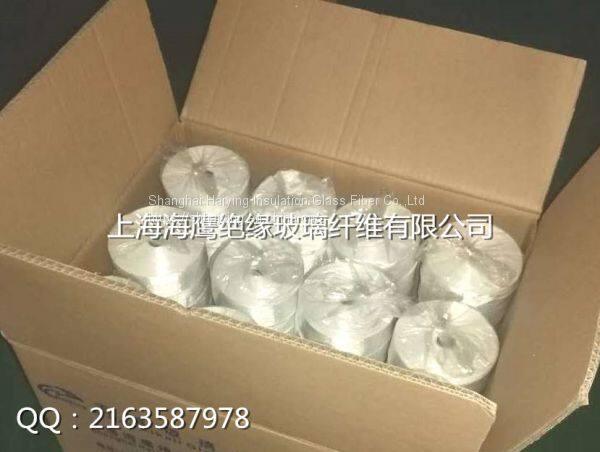

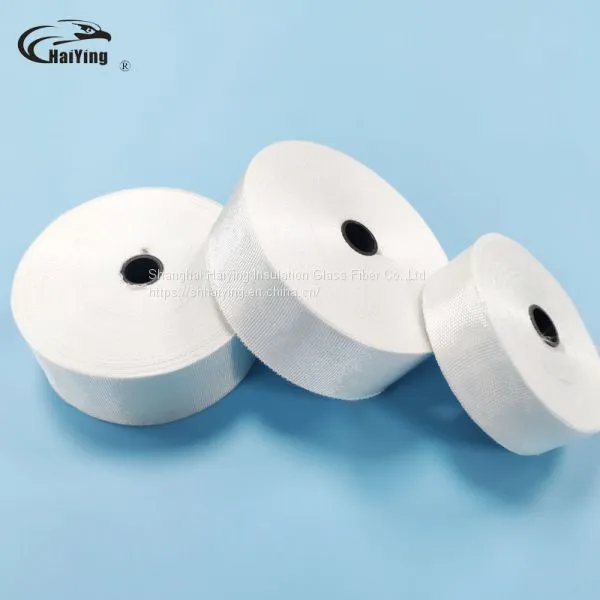

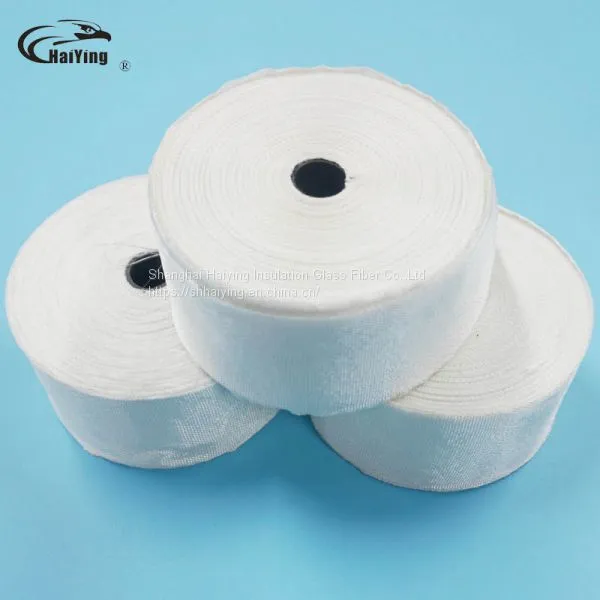

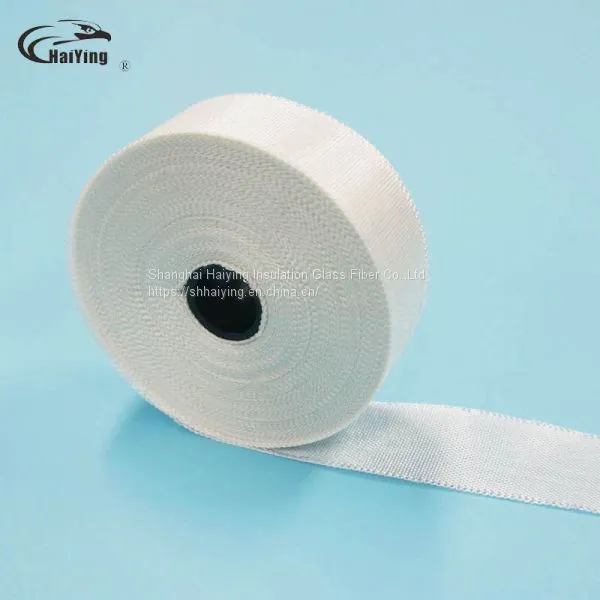

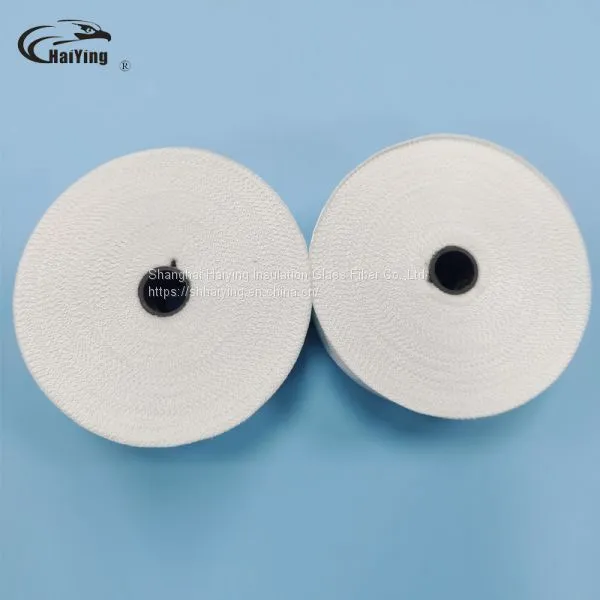

Non-alkali glass fiber tapes are produced by weaving on narrow fabric looms in various thickness & weave density. The tapes are available generally in plain weave. The tapes are rolled on to a core to a required length. Core size and tape length are as per customer requirement. The tapes are in loom state condition with uniform selvedge.
The Glass Fiber Tapes serve as high temperature reinforcement to electrical insulating varnishes on the coils of the motors. Glass tapes are suitable up to class C, have high dimensional stability and are incombustible.
Application:
Our woven tapes find application in electrical industry for insulation purposes, in rotating machines, transformers and power cables.
1.Specification of E-glass tape I
| style | Thickness (mm) | Width (mm) | Yarn (tex * strand) | Construction (ends/cm) | Breaking strength (N/10×100mm) | ||
| Warp | Filling | Warp | Filling | ||||
| ET-60 | 0.06 | 10,15 20,25 30,35 40,50 | 6*2 | 6*2 | 27±1 | 22±1 | ≥325 |
| ET-80 | 0.08 | 12*2 | 6*2 | 27±1 | 22±1 | ≥500 | |
| ET-100 | 0.10 | 12*2 | 12*2 | 25±1 | 11±1 | ≥500 | |
| ET-120 | 0.12 | 12*2 | 24*1 | 25±1 | 11±1 | ≥620 | |
| ET-180 | 0.18 | 12*4 | 12*2 | 25±1 | 10±1 | ≥750 | |
| ET-200 | 0.20 | 12*6 | 12*4 | 25±1 | 10±1 | ≥875 | |
| ET-300 (Directional) | 0.30 | 33*6 | 33*4 | 25±1 | 8±1 | ≥1500 | |
*Special specification are available upon request.
2. Specification of E-glass Tape II
| style | Thickness (mm) | Width (mm) | Yarn (tex * strand) | Construction (ends/cm) | Breaking strength (N/25*200mm) | ||
| Warp | Filling | Warp | Filling | ||||
| ET-200 | 0.2 | 20,25 30,50 70,100 150,250 | 33*4 | 33*2 | 10±1 | 6.8±1 | ≥1200 |
| ET-250 | 0.25 | 33*4 | 33*3 | 10±1 | 6.8±1 | ≥1200 | |
| ET-300 | 0.30 | 33*6 | 33*3 | 10±1 | 6.2±1 | ≥1500 | |
*Special specification are available upon request.
*Fabric can be woven in satin structure
